  Universal Fit TRUE Automatic DRL On/Off Switch Module For LED Daytime Running Lights
Universal Automatic DRL On/Off Switch For LED Daytime Running Lights



Version updated on Feb 27th.

Price: $25.99


Availability: Usually ships within 24 hours
Code: AA1070
Qty:

Product Detail FAQs and Tech Support

Introduction

This page features one set universal fit automatic DRL On/Off switch for any LED Daytime Running Lights.

This revolutionary automatic DRL On/Off switch allows the LED daytime running light lamps to turns on automatically at the start of the engine and turn off when engine is off.

Simply connect this advanced automatic on/off switch directly to battery's positive and negative terminals, not only will avoid a lot of complicated installation such as finding and cutting stock wiring and allows you to have the "true" key-in-and-on daytime running lights function.

Features

  • One piece LED DRL Relay Harness with Automatic On/Off switch function
  • Dimension: 2.00" (L) x 1.70" (H) x 0.70"(D)
  • Ultra-slim Design
  • Work for most LED daytime running lights on the market
  • Must connect to battery positive and negative to ensure proper function
  • Delay turn off time: 15 seconds

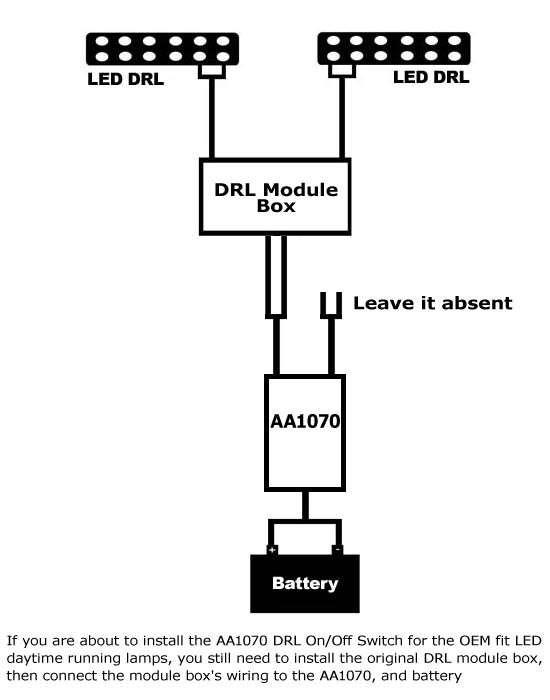

  • Auto DRL Switch Installation Guide

Note

  • Always tapping the output wires to the LED lights first before connecting the input wires to battery +/-
  • If you are only using one output, please make sure to use black tape to cover the exposed positive terminal
  • Only use this module with LED lights with total output less than 15W
  • Please keep in mind that this product is vibration activated; the lights that are connected to this module will only turn on when the device senses vibrations from the vehicle. It is recommended to mount the module to the intake tube close to the car engine to receive the max vibration
Package

One set Automatic DRL On/Off switch module box.

LED Daytime Running Light Auto On/Off Switch

LED Daytime Running Light Auto On/Off Switch

LED Daytime Running Light Auto On/Off Switch

2012 Scion xB installed the 9005 LED Bulbs with Auto DRL switch on high beam

2010 BMW E90 328i installed LED Daytime Running Lights with auto DRL switch

Warranty Terms and Conditions


iJDMTOY Customer Review: 4.5 of 5 | Total Reviews: 6

Write a review to enter a chance to win a HID conversion kit.



  1 of 1 people found this product review helpful:

Very easy to install March 25, 2013
Reviewer: Alex Sanchez from Bonita Springs, FL United States
This is a very easy add up and works surprisingly well. Just have the four wires connected to the Audi style LED DRL I've bought off from iJDMTOY too and the other two black/red wires to battery positive and negative and that's it.

When the car starts, the LED daytime lights instantly turn on and after I turn off the car, it has a 10 sec delay to shut the LED light off.

Was this review helpful to you?

  0 of 0 people found this product review helpful:

DLR - Lincoln MKS September 5, 2012
Reviewer: Bwbigdog from Louisville, KY United States
The switch works great on my Lincoln MKS LED's. Turns on and off as advertised. Thanks

Was this review helpful to you?

  0 of 0 people found this product review helpful:

Universal Fit TRUE Automatic DRL On/Off Switch For September 5, 2012
Reviewer: Richard H from San Francisco, CA United States
Worked on my 2001 BMW 330, no error codes. Easy hookup to battery terminals.

Was this review helpful to you?

  3 of 3 people found this product review helpful:

EASY DIY Installation January 27, 2012
Reviewer: Zhi C. from Columbus, OH United States
Vehicle: 08 Yaris Hatchback.

Pros: It is really "ADVANCED". I mean, before I purchased this, I don't understand why the instruction says "just tap the red and black wire DIRECTLY to the + and - terminal on battery", cuz that will end up with a closed circuit all the time 24/7... and I thought I should tap the wire into the fuse box or somewhere else between the ignition and DRL so that the box can monitor the current change. (some eBay sellers sell same stuff, but they say you gotta tap the wire into fuse box or....complicated than iJDMTOY)

Well, I tried to just follow what the instruction says, and it WORKS!!! You just need to tap the red to + and black to - on battery, (It will light up for seconds when you first time tap them, but shuts off    automatically after few seconds), and after you start the engine, it will light up until you shut off the engine. It is that SIMPLE!

Was this review helpful to you?

  1 of 1 people found this product review helpful:

universal fit true automatic drl .... July 26, 2011
Reviewer: khalid loughribi from schinveld, limburg Netherlands
hello
I just ordered a New Product!!! Universal Fit TRUE Automatic DRL On/Off Switch For LED Daytime Running Lights in your sitefor my audi A4 model 2003 .
my question is:
can I use it with my original fog lamps???

Was this review helpful to you?
