Features
- Fit for the 1999-2007 Ford F-250 F-350 F-450 F-550 Super
Duty
- Complete package includes (1) 21" Triple-Row high
power LED lightbar, (2) black powder coated steel lower grille area
mounting brackets and (1) relay wiring kit with on/off switch
- High power LED light bar made up of (90) 1.5W
3030-SMT LED emitters in three rows, mixed with flood beam on each end
with spot beam in the center for an extremely high output
- Exclusively designed custom mounting brackets allow
for a direct and easy bolt-on installation without any drilling, cutting
or modification required
- See more product details
Frequently Asked Questions
Q: What truck will this LED
light bar fit in?
A: This combination beam
pattern LED light bar is made to fit the 1999-2007 Ford F-250, F-350,
F-450, and F-550 Super Duty trucks.
|
Q: Will this LED light bar
block the air flow?
A: When we first developed
the LED light bar, we conducted a significant amount of research
on truck forums based on members' feedback. The consensus is
that there is no noticeable effect from the LED light bar
blocking the air flow.
|
Q: Is this LED Light Bar
water resistant?
A: The LED light bar is
rated at IP67 waterproof, meaning that you can use the assembly
under any weather condition. However, we don't recommend
submerging the LED light bar under water and please try not use
a high pressure water jet to spray directly on it either.
|
Q: How do I mount the LED
light bar onto my Ford Superduty truck?

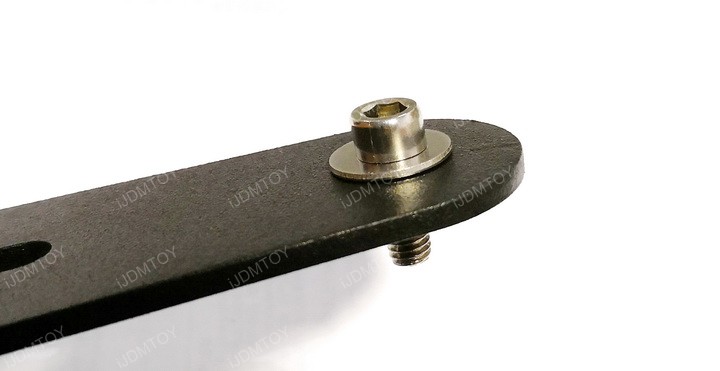

A: Secure the metal
mounting brackets onto the Ford LED light bar. The hardware you
receive should include a set of M6 screws with flat washers and
spring washers.
Thread the M6 screws through the
mounting holes, lining them with flat washers.

Apply a flat washer and a spring washer on the other side of the
support brackets.
Bolt the mounting brackets onto
the LED light bar, screwing in the M6 bolts securely.
|
Q: Do I absolutely need a
relay harness wiring kit?
A: Although it's not
absolutely necessary to wire your LED light bar to a relay
harness, we highly recommend that you do so if you don't have
one already. Connecting your LED light bar to a relay harness
will protect your Ford Superduty's circuits, since the relay
harness has a built-in fuse, and ensures that it doesn't
overload. Having your LED light bar connected to a relay harness
protects your car battery's longevity; turning your car off also
turns off the LED light bar. Additionally, our relay harnesses
come with an on/off switch so that you can conveniently switch
on/off your LED light bar whenever you need to.
|
Q: How come when I connect
the LED light bar to power, it does not light up? or part of the
LED light bar does not light up? or part of the LED light bar
does not light up as bright as the other part(s)?
A:
For the first question: since the LED light bar is polar
sensitive, so if the LED light bar does not light up at all,
please try to switch the two wires around and try again.
For any "part" light up/flickering, or "part" is not as bright
as the other half issues, it indicates the power source is not
strong enough to completely power up this high power LED light
bar. It happens especially when you are testing the LED light
bar with a 12V power supply (normally can only power up to 60W)
or could mean your car battery is not fully charged or the
battery is too old that does not hold enough "juice" any more.
Here we have a video to further explain this for you or continue
read about this at Why Parts of Your LED Light Bar Doesn't Light
Up.
|
|
|
 |
 |
 |
 |
|
 |


|
