Lower Grille Mount LED Light Bar Kit For 2015-up Chevy Silverado 2500 3500 HD, (1) 96W LED Lightbar, Bumper Opening Mounting Brackets & Wiring
Free Shipping Within 24 Hours.
- Fit 2015-up Chevrolet Silverado 2500HD 3500HD
- Complete LED light bar kit includes (1) xenon white 96W high power spot beam LED lightbar, (1) set of industry grade steel metal constructed lower grill location/area bracket mounts and (1) set of relay wire harness w/ in-line fuse and on/off switch
- Easy-to-install LED light bar kit features a 100% bolt-on installation procedures with no modification, cutting or drilling required
- Hide the off-road LED light bar in the grill to keep your Chevy Silverado with a factory stock look with excellent lighting whenever you need it to RULE THE NIGHT!
This page features a set of 96W high powered LED light bar plus metal mounting bracket and relay wiring harness with On/Off switch for the 2015-up Chevrolet Silverado 2500 3500. This super bright, dual row LED light bar is powered by 32 pieces of 3W high powered CREE LED lights to give your Chevy Silverado 2500 3500 a super aggressive look that totally fits the aura of the truck.
All you need to do is directly mount your new LED light bar to the factory bolts under the hood and behind the grille. This kit comes with exclusively designed custom mounting brackets which allow for a direct and easy bolt-on installation without any drilling, cutting or modification required.
Q: Will this LED light bar fit my truck?
A: This LED light bar is compatible with 2015-up Chevrolet Silverado 2500 3500.
Q: Is there any modification required for installation?
A: No, there is absolutely no modification necessary, due to the exclusive design of the metal mounting brackets which allow for a direct and easy bolt-on installation without any drilling, cutting or modification required.
Q: How do I install the Chevy Silverado 2500 3500 LED Light Bar?

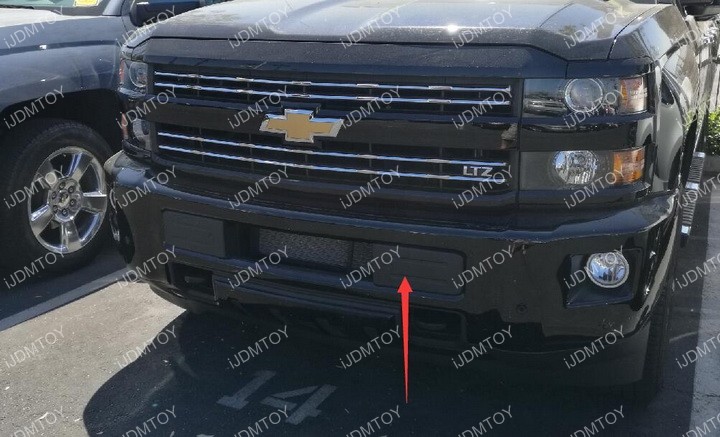

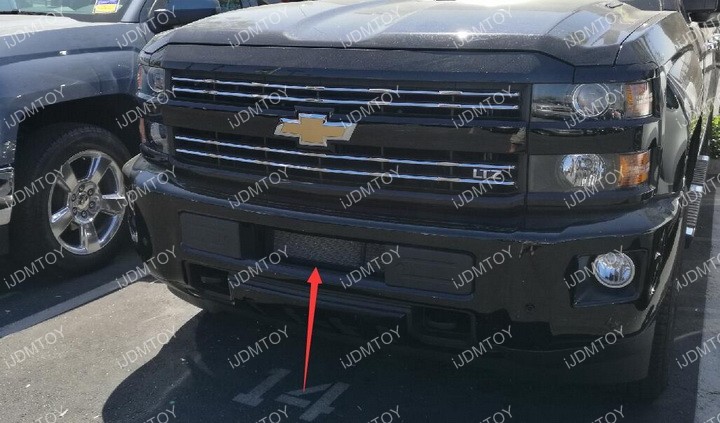

A: You will be installing your new Chevy Silverado 2500 3500 LED light bar in between the two front bumper end covers.

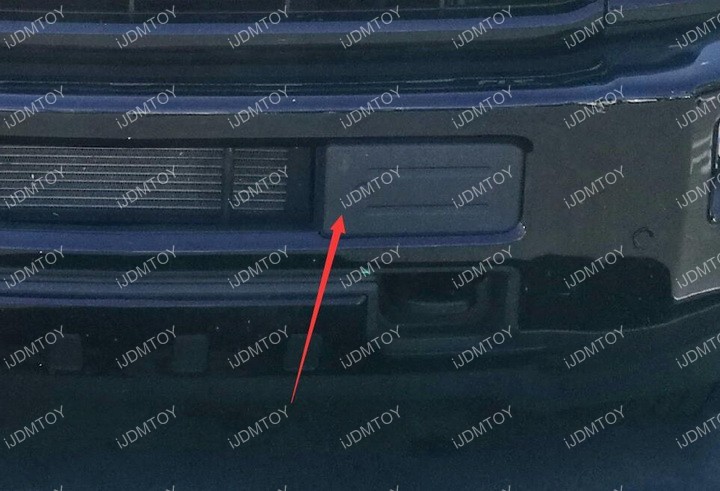

Step 1: Gently, but firmly bend the bumper end covers outward so you can reach inside to the lower bumper. You don't need to remove the two bumper end covers, you just need to have enough room to maneuver the mounting brackets in later.

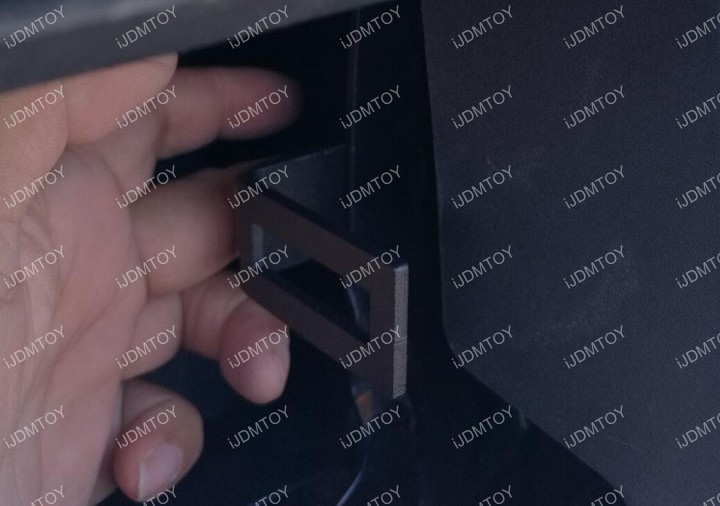

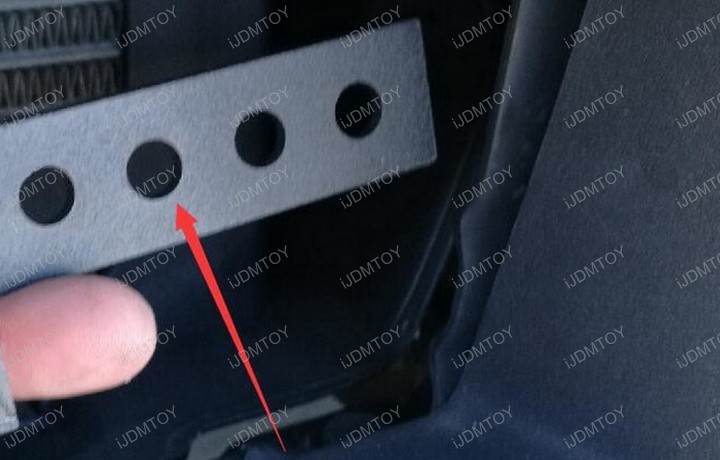

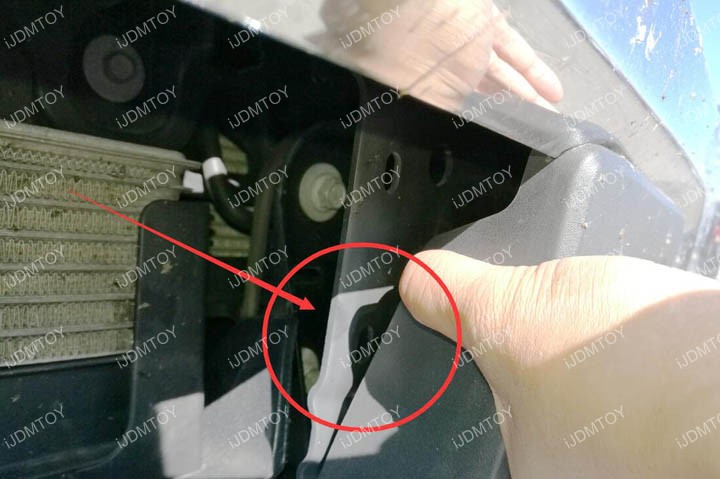

Step 2: Once you've got enough leeway behind the front bumper end covers, you can take the metal mounting bracket and slide it behind the cover at the 3rd hole (marked by red arrow) and bolt the hole onto the hole in the metal frame (indicated on 2nd photo) behind the bumper end cover using the provided screws.
You may notice the special design of the metal mounting bracket, which is our exclusive design that allows for a direct and easy bolt-on installation without any drilling, cutting or modification required.
Step 3: Repeat the mounting process on the other side.
Step 4: Once you have both metal mounting brackets secured behind the bumper end covers, then mount the LED light bar in between the mounting brackets and secure with the nuts and bolts.

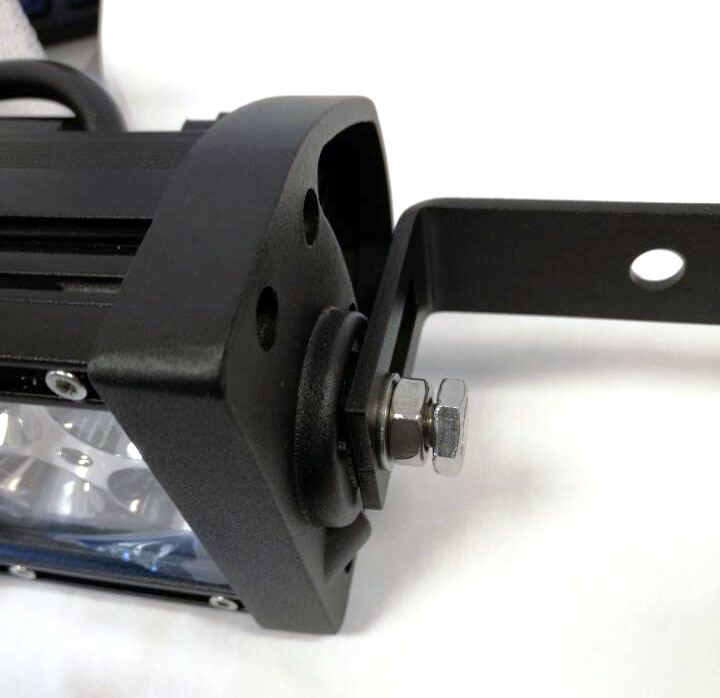

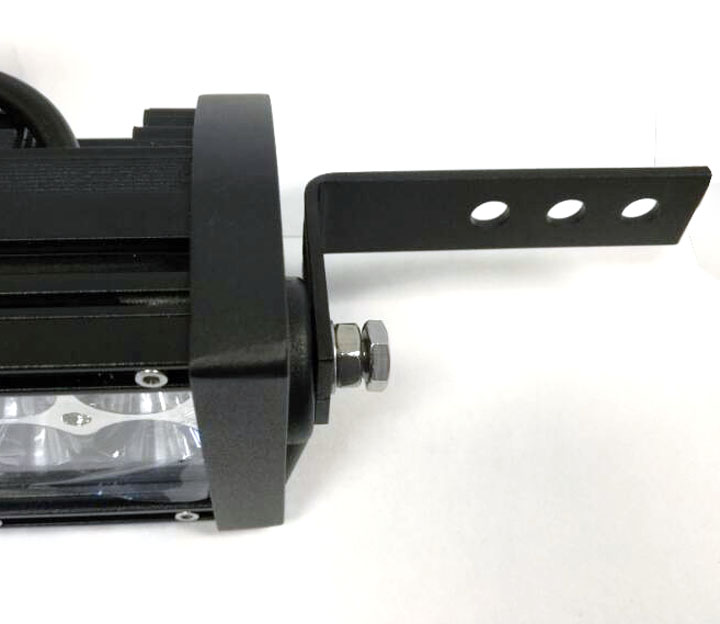

Q: How do I secure the LED light bar onto the metal mounting bracket?
A: To secure the LED light bar onto the metal mounting bracket, you'll need the screw, nut, and occasionally a washer. Insert the washer (if you are using one) and the nut into the screw and then secure the bracket and light bar together. All the components will tighten among themselves to secure everything in place.
Q: Why is the LED light bar not set towards the center of the gap?
A: This design is intentional. The LED light bar is set towards the bottom of the gap so that it can easily exhaust heat since heat rises.
Please visit LED light bar kit FAQ/tech support for more detail.
