Lower Grille 20" LED Light Bar Kit For 2011-16 Ford F250 F350 Super Duty, (1) 120W LED Lightbar, Lower Bumper Mounting Brackets & Wiring Switch

Free Shipping Within 24 Hours.
SKU 35-905
  • Fit 2011-2016 Ford F-250 F-350 Super Duty

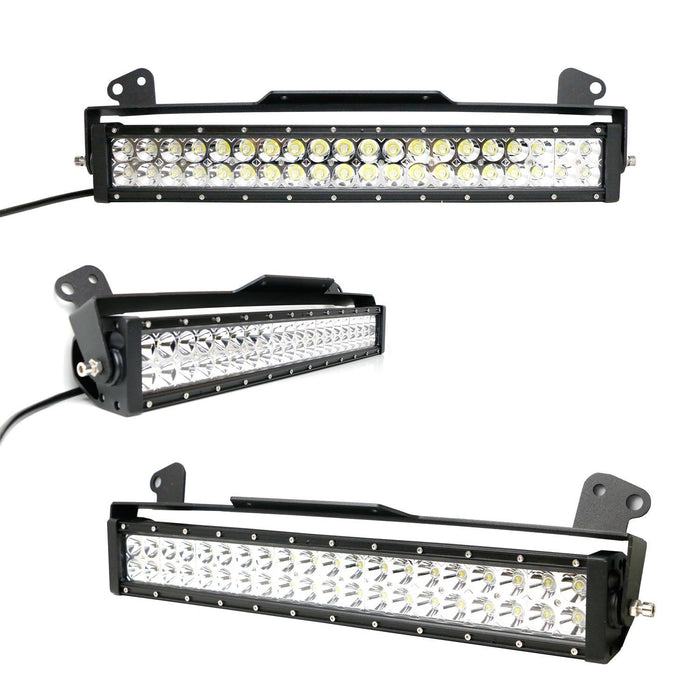

  • Complete LED light bar kit includes (1) 20-21" xenon white 120W high power spot beam LED lightbar, (1) set of industry grade steel metal constructed lower grill opening area bracket mounts and (1) set of relay wire harness w/ in-line fuse and on/off switch
  • Easy-to-install LED light bar kit features a 100% bolt-on installation procedures with no modification, cutting or drilling required
  • Hide the off-road LED light bar in the grill to keep your Ford Super Duty with a factory stock look with excellent lighting whenever you need it to RULE THE NIGHT!

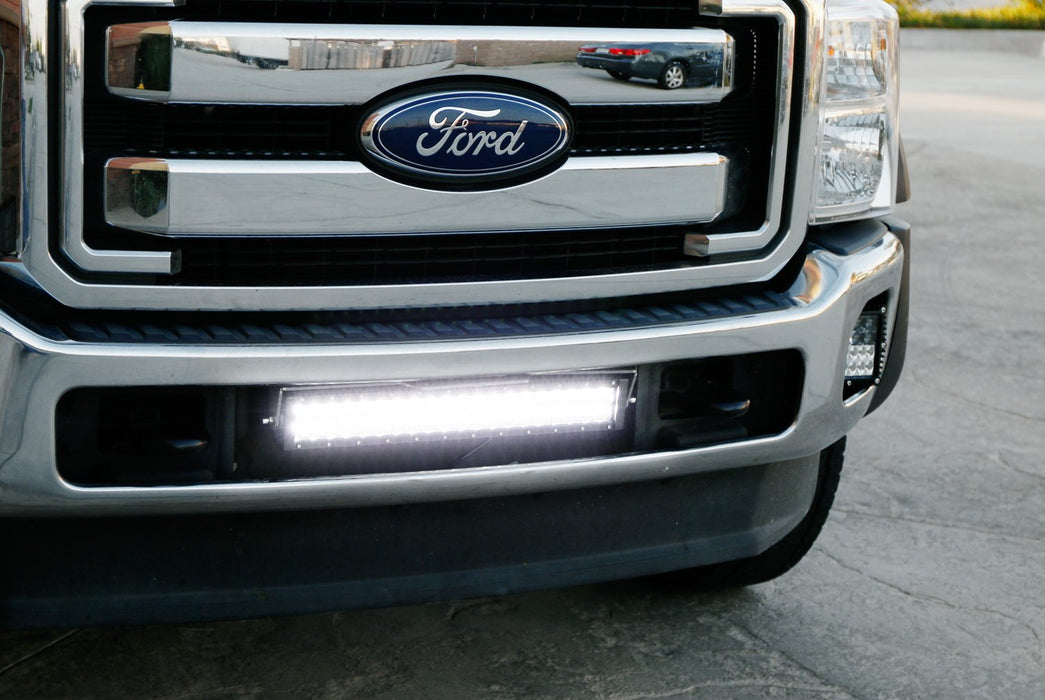

This page features a set of 20" 120W high powered LED light bar and full steel metal lower bumper grille insert mounting bracket for the 2011-2016 Ford F-250 F-350 Super Duty. This straight LED bar can be directly mounted to the factory bolts inside of the bumper's lower grille. The LED light bar is a great way to make your already aggressive Ford F-250 F-350 look more formidable and definitely ties in with the aura of the truck. The kit even comes with exclusively designed custom mounting brackets allow for a direct and easy bolt-on installation without any drilling, cutting or modification required.

Q: Will this LED light bar block the air flow?

A: When we first developed the LED light bar, we conducted a significant amount of research on truck forums based on members' feedback. The consensus is that there is no noticeable effect from the LED light bar blocking the air flow.

Besides, the front end of the truck is not completely sealed after the LED light bar installation so the air can flow in from the front grille as well.


Q: How to mount the LED light bar to the mounting bracket?

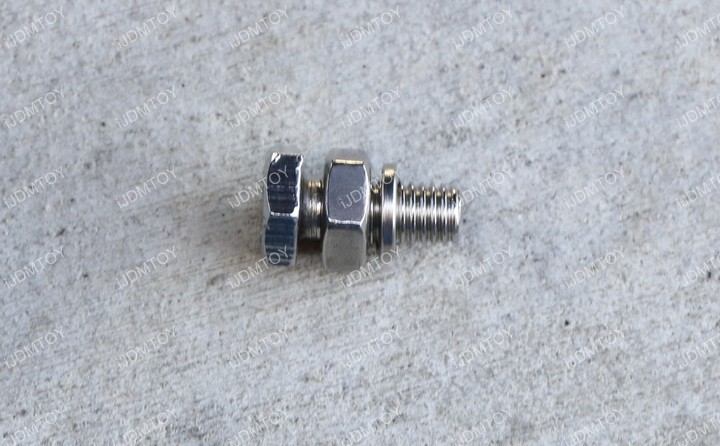

A: Insert the nut into the screw like so. This is so you can first tighten the screws to the LED light bar and utilize the nut to tighten in reverse onto the bracket. This makes sure that all three components, the LED light bar, screw, metal mounting brackets, and all tightened with each other in order to secure all the components in place.


Q: How do I install this Ford F-250 F-350 LED Light Bar?

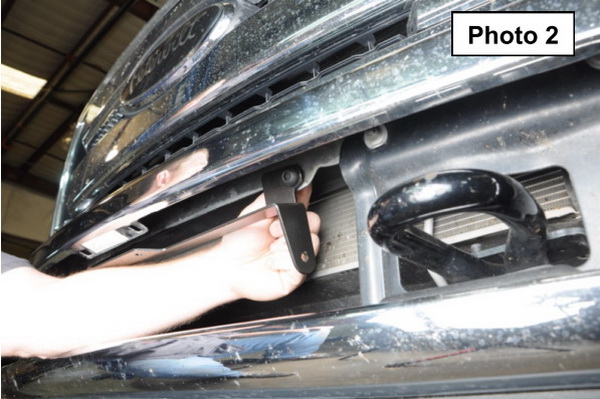

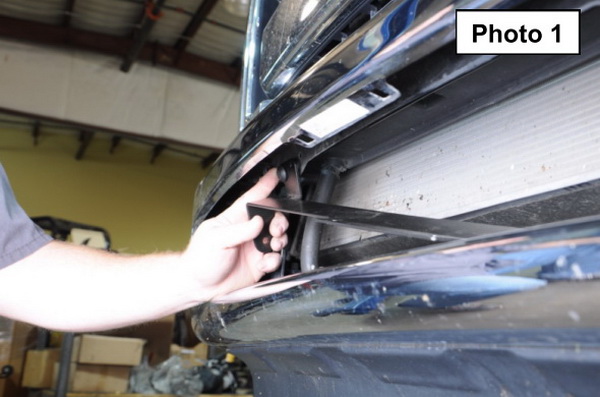

A: Step 1: Install the mounting bracket in the opening of the front bumper. Bolt the bracket to the upper rear holes of the bumper and use your hand to tighten.

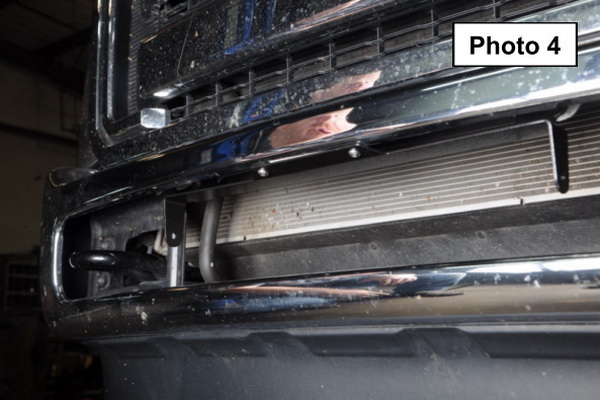

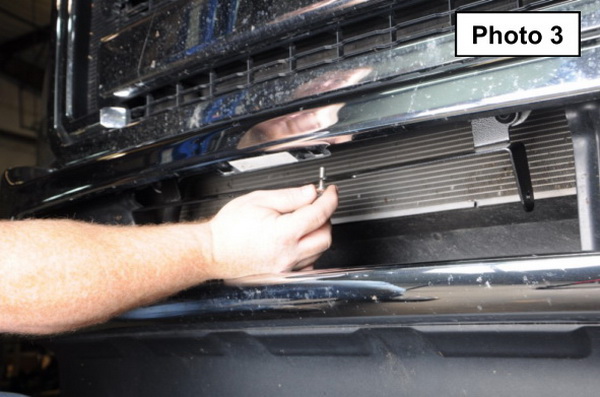

Step 2: Place 1.2" bolts through the bracket the the bumper flange. Tighten and use a washer to help secure.

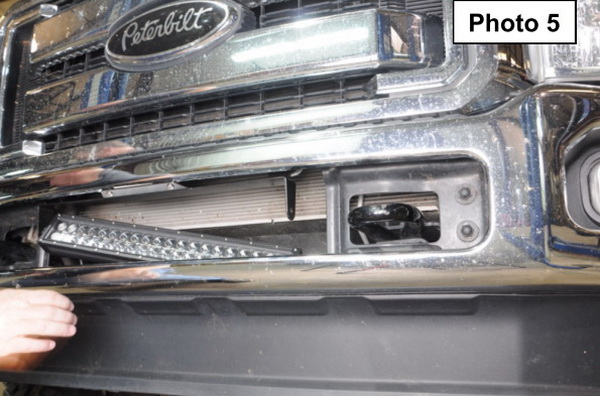

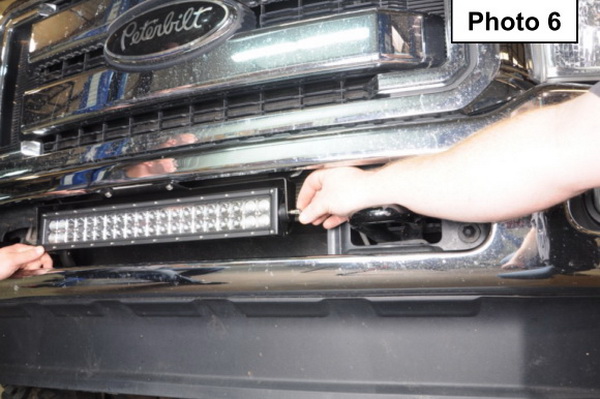

Step 3: Insert the LED light bar in the bumper opening in between the brackets. Adjust the LED light bar to your desired angle and then tighten to secure.

Please visit LED light bar kit FAQ/tech support for more detail.
