Lower Grille 20" LED Light Bar Kit For 2004-18 Nissan Frontier, (1) 120W LED Lightbar, Lower Bumper Opening Mounting Brackets & Wiring Switch

Free Shipping Within 24 Hours.
SKU 35-932
  • Fit 2004-18 2nd Gen Nissan Frontier
  • Complete LED light bar kit includes (1) 20-21" xenon white 120W high power spot beam LED lightbar, (1) set of industry grade steel metal constructed lower grill opening area bracket mounts and (1) set of relay wire harness w/ in-line fuse and on/off switch
  • Easy-to-install LED light bar kit features a bolt-on installation procedures w/ some minor cutting involved

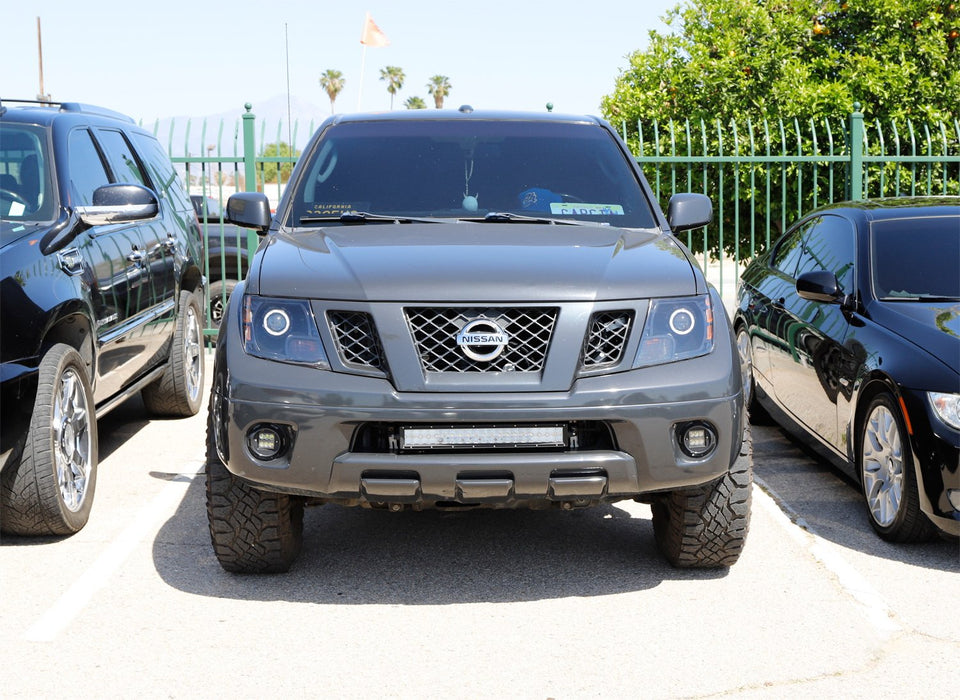

  • Hide the off-road LED light bar in the grill to keep your Nissan Frontier with a factory stock look with excellent lighting whenever you need it to RULE THE NIGHT!
This page features a set of 20" 120W high powered LED light bar plus exclusively designed metal mounting brackets and On/Off switch wiring kit for the 2004-up 2nd Gen Nissan Frontier. This super bright, double row LED light bar has an extremely bright output to give your Nissan Frontier an extremely formidable look both on and off the road.

All you need to do is to directly mount this new LED light bar using our custom designed metal brackets to the factory bolts inside the lower bumper insert area with no additional drilling required. However, for some trims of the newer Nissan Frontier especially the 2016-up models, there are 3 plastic vertical beams need to be cut in order to mount the LED light bar.

Q: Will this LED light bar fit my truck?

A: This LED light bar is only compatible with the 2004-up 2nd Gen Nissan Frontier.


Q: How do I install this Nissan Frontier LED light bar?

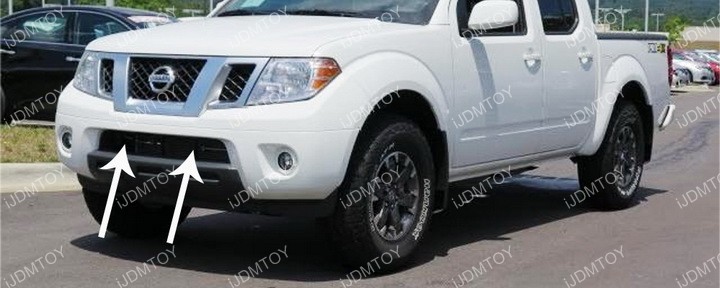

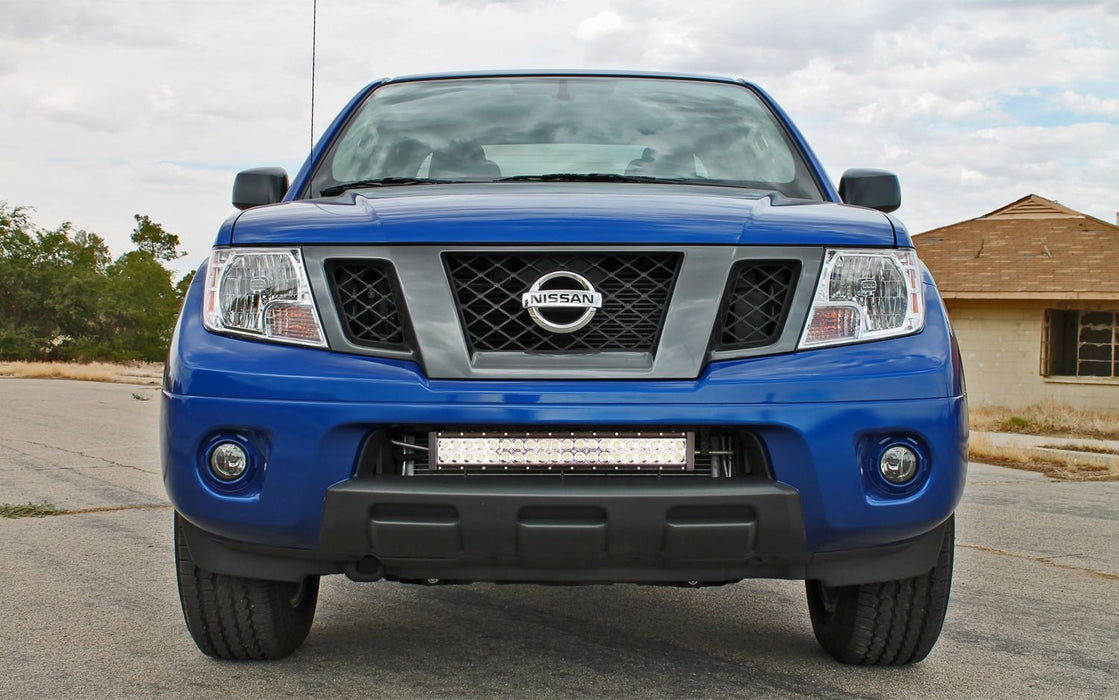

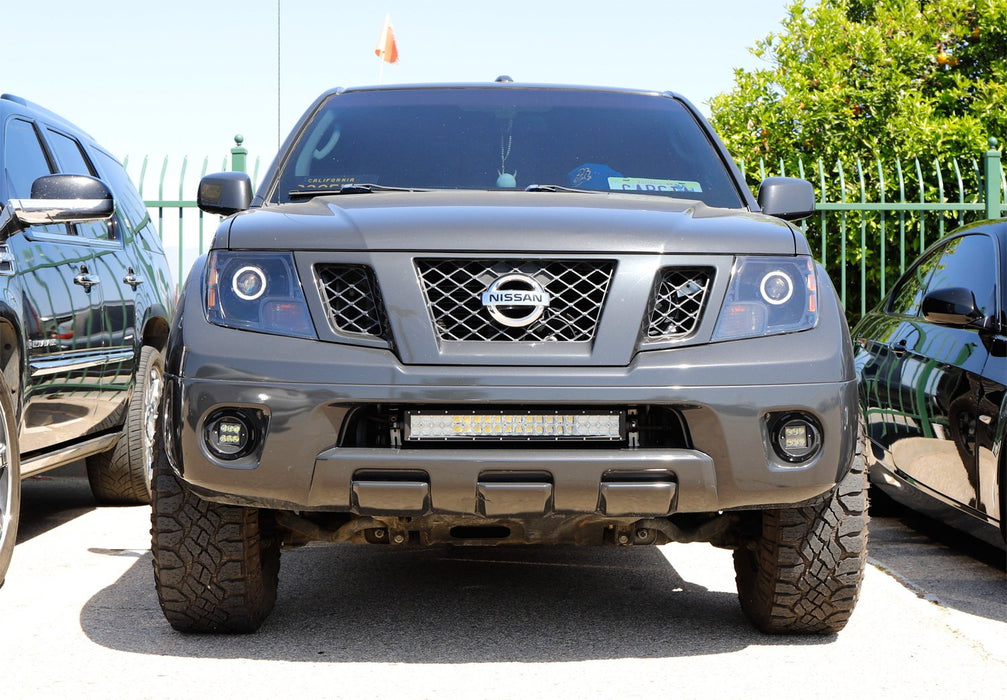

A: You'll be installing your new Nissan Frontier LED light bar in the center of the front bumper lower grille location.

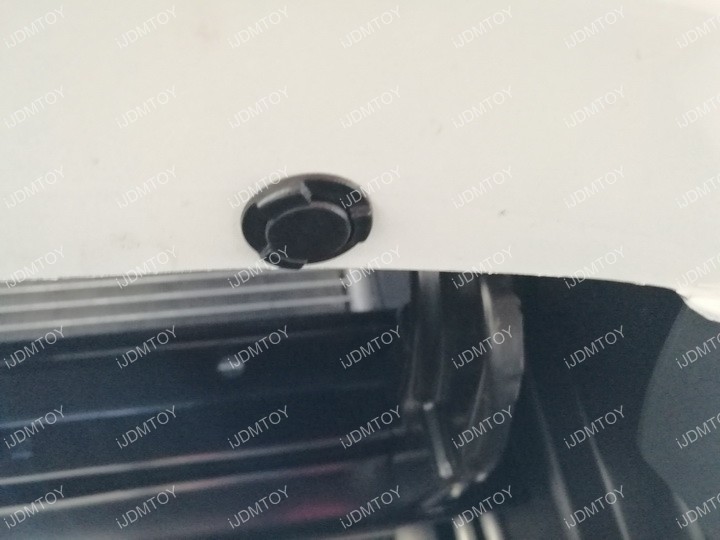

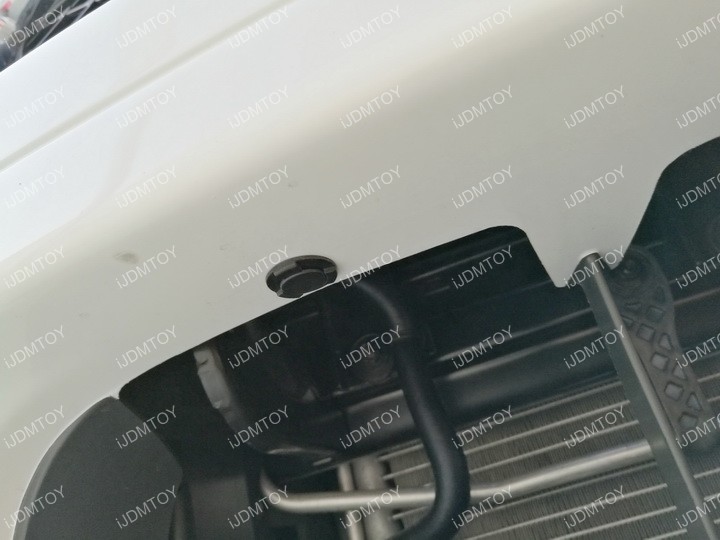

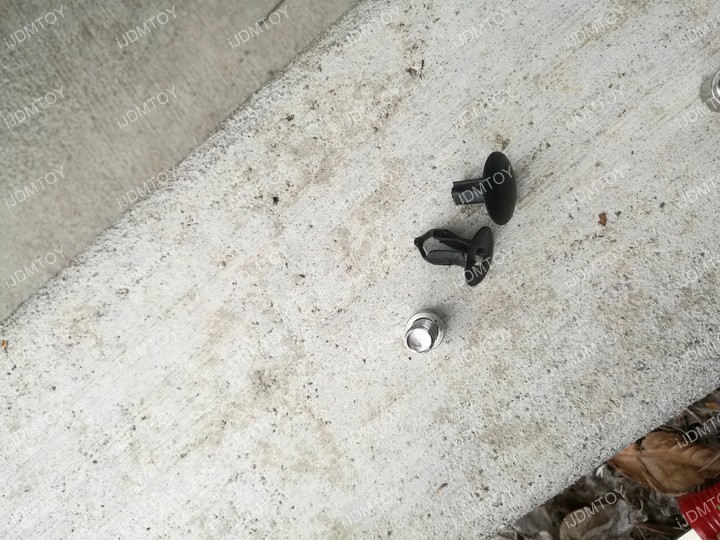

Step 1: Take off the screws and tabs located at each end of the lower bumper opening.

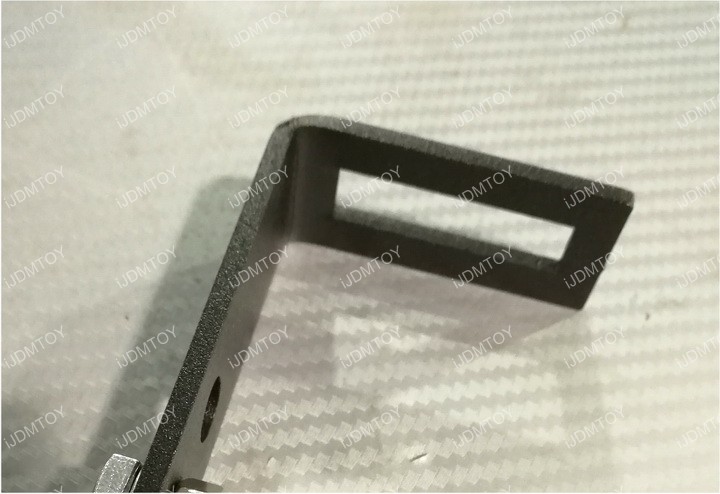

Step 2: Take the metal mounting bracket and mount it directly on top of the open bolt at the inner most corner closest to the curved part and then secure the bracket. Don't screw in the bracket too tightly, because you'll want some leeway for adjustment.

Repeat on the other side.

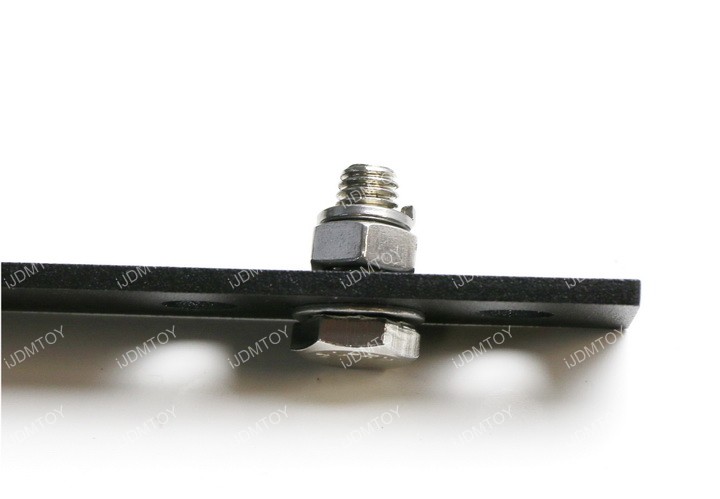

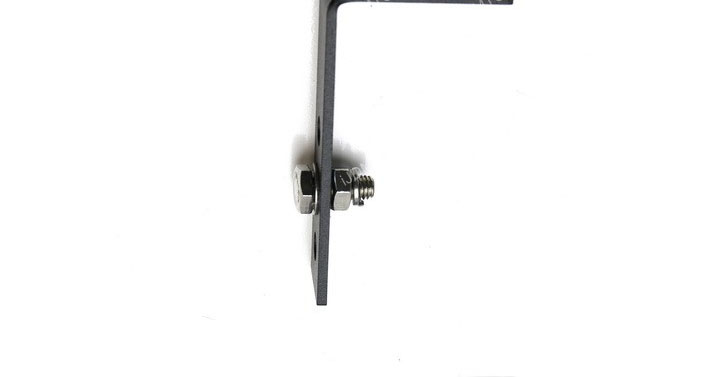

Step 3: Take a screw and washer and insert them at the outer side of the bracket at the second hole. Sandwich the bracket with an additional nut and washer. Don't tighten the bolt all the way, leave a little bit of threading.

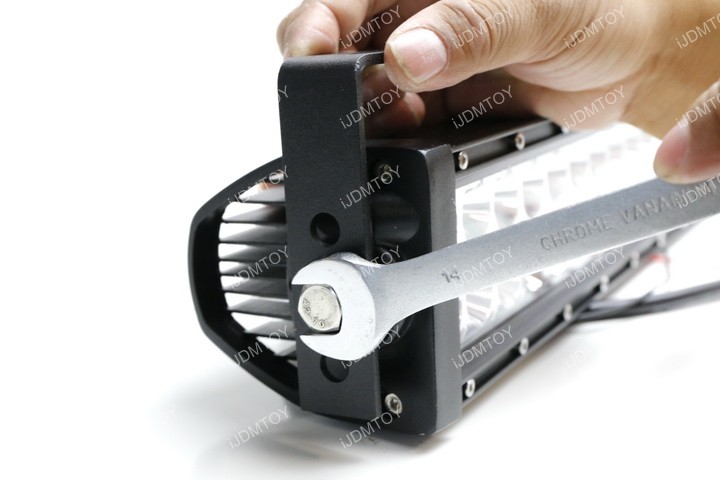

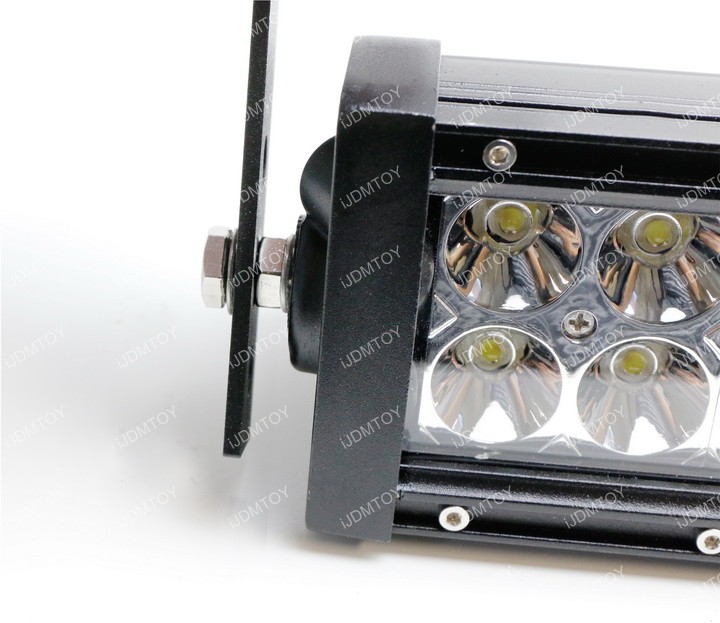

Step 4: Insert the LED light bar in between the metal mounting brackets. You can take this time to adjust the position of the metal mounting bracket and the LED light bar. Take a wrench and tighten the screw from the outer side. The screws, nut, metal mounting bracket will tighten among themselves for a secured fit. Also you can secure the top bolt that holds the metal mounting bracket to the open bolt on the truck.

Step 5: Finish mounting the LED light bar on the other side.


Please visit LED light bar kit FAQ/tech support for more detail.
