Tow Hitch LED Pod Light Kit Fit For Many Truck SUV Trailer RV, (2) 20W CREE LED Pod Lamps & Tow Hitch Mount Bracket As Reverse, Off-road Search Light


Free Shipping Within 24 Hours.
$119.99
SKU 70-218-White
  • Combo 2-piece LED pod light kit and full steel metal tow hitch mounting bracket (Exclusively designed custom mounting brackets allow for a direct and easy bolt-on installation without any drilling, cutting or modification required)
  • The tow hitch can clamp around most 1-1/4" inner openings Class 1, Class 2 tow hitches and some 3" inner opening heavy duty tow hitches as well
  • Each LED pod light is lowered by 4 pieces of xenon white 5W CREE LED XP-E Emitters, giving you a total of 20W
  • Good for backup reverse lights, search lights, rear fog lights, off road lighting etc, and perfect for trucks, pickups, SUV, Jeep, ATV, 4x4, Boats and more

This page features a combo set of (2pc) Dually 20W high powered CREE LED pod lights and a tow hitch bracket. The tow hitch can clamp around most 1-1/4" inner openings Class 1, Class 2 tow hitches and some 3" inner opening heavy duty tow hitches as well.

This combo allows you to set up the bracket as extra mounting points to mount the LED pod lights as backup reverse lights, search lights, rear fog lights, off road lighting and more. This kit is great for trailers, trucks, SUVs, pickups, 4x4, RVs, boats, and more.

NOTE: Please make sure you have enough clearance space for installation! You must have at least 18mm (1.8cm/0.7in) of surrounding gap between the tow hitch, bumper, and metal plates in order to fit the tow hitch bracket.

Fit most trucks/SUVs such as

Chevy Chevrolet Avalanche Colorado CK Pickup Silverado 1500 2500HD 3500HD Tahoe Suburban Trailblazer,
Dodge Dakota Durango Ram 1500 2500 3500 4500 RAM1500 RAM2500,
Ford Expedition Explorer F150 F250 F350 F450 F-150 F-250 F-350 F-450 Super Duty Ranger,
GMC Canyon Denali Jimmy Sierra Yukon XL,
Jeep Grand Cherokee Wrangler,
Nissan Frontier Titan Xterra,
Toyota 4Runner FJ Cruiser Land Cruiser Tacoma Tundra

Q: How do I install my LED light bar/pod lights with the included wiring set?

A: Each of our LED light bar or pod light kits include a relay wiring harness. Because you are installing your LED light on the back side, you won't have to use the wiring set. Wiring your LED light bars or pod lights to your car battery would be hard since they are on opposite sides of your vehicle. To install, simply connect the wires to your tail light or reverse light harnesses, depending on how you want to use your LED light. If the wires are not long enough, you may use the relay wiring harness as extension wires.



Q: Will the tow hitch bracket fit on my truck?

A: As long as your truck's tow hitch has a 3" opening for Class I/Class II, then this bracket will fit your truck.

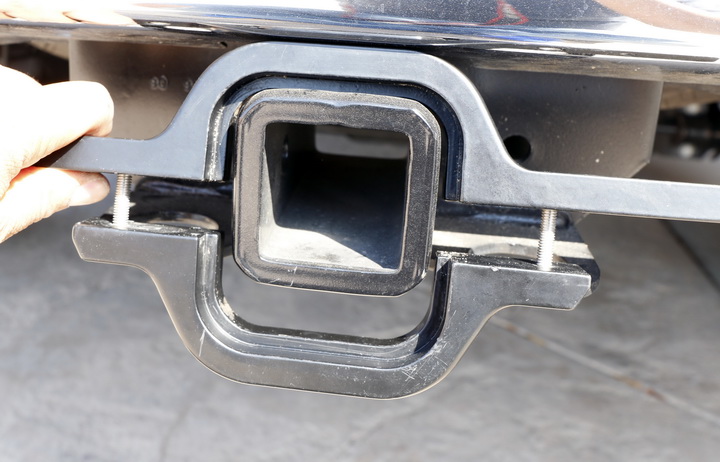

You will also need to make sure that after you fit the tow hitch bracket over the wider outer neck of the tow hitch that you have a surrounding clearance space of at least 18mm (1.8cm/0.7in). This means that there must be at least 18mm (1.8cm/0.7in) of gap between the tow hitch and the bumper, the metal plates, and everything else in order to accommodate the tow hitch bracket.

Also you need to make sure that there's at least 13mm (1.3cm/0.5in) of clearance space directly in front and behind of the tow hitch bracket.



Q: Are there any fitting restrictions in mounting this tow hitch mounting bracket?

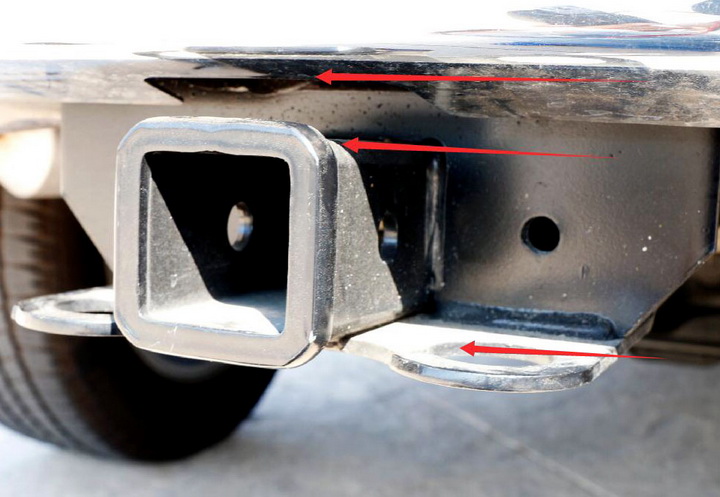

A: Refer to the picture below. Your tow hitch must have a 1 inch height clearance above and below while it must have a 0.75 (3/4) inch depth clearance on the left and the right in order for this tow hitch mounting bracket to be installed.

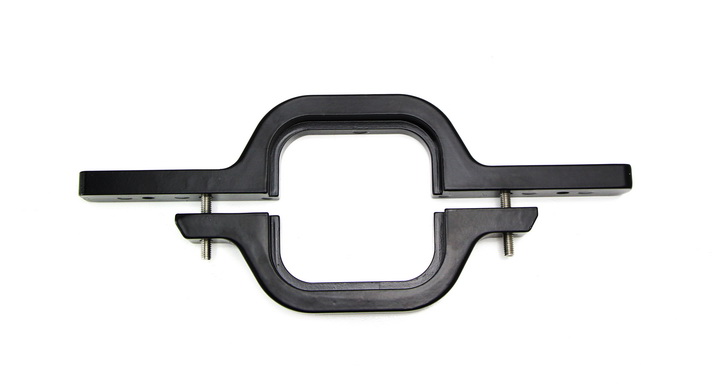

Q: Which direction do I mount the tow hitch mounting bracket onto my truck's tow hitch?

A: Make sure that the side of the tow hitch mounting bracket with the groove is facing the outer side so it can latch on to the neck of the tow hitch.

The smooth side of the tow hitch mounting will be facing towards the truck.



Q: How do I install the tow hitch bracket onto my truck's tow hitch?

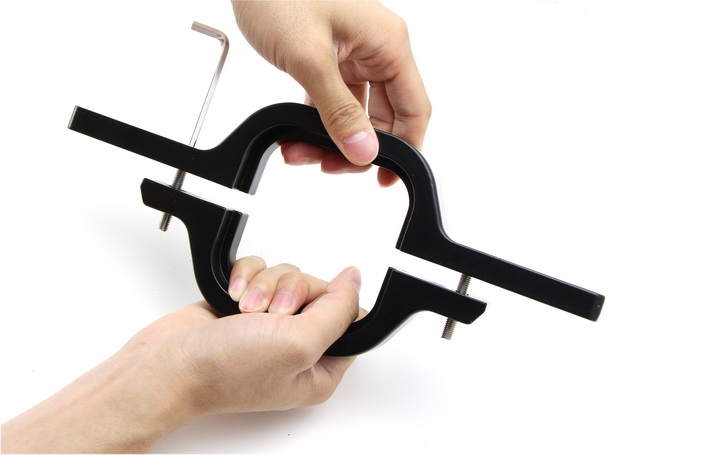

A: Step 1: This tow hitch bracket comes with a hex tool to help you secure the bracket onto your truck's tow hitch. Use the hex tool to loosen the screws that hold the top and the bottom bracket pieces together.

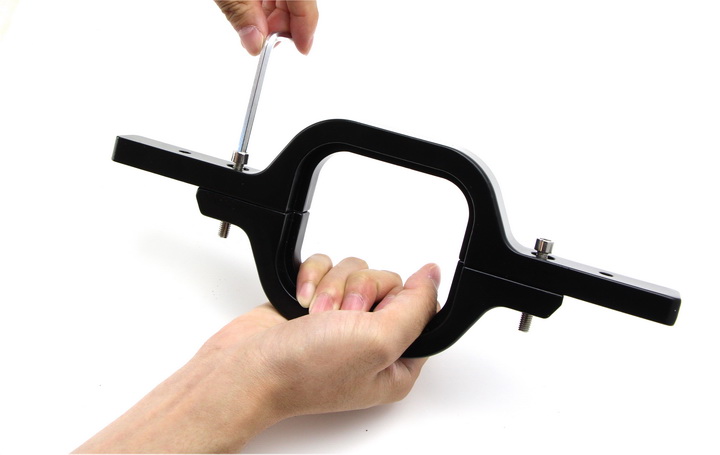

Step 2: When you loosen both screws, you will be able to pull the bracket slightly apart. Clamp the bracket over your tow hitch (make sure the side with the grooves is facing inward) and tighten the screws to fully secure the tow hitch mounting bracket.



Q: What happens after installation if the tow hitch mounting bracket is slightly loose?

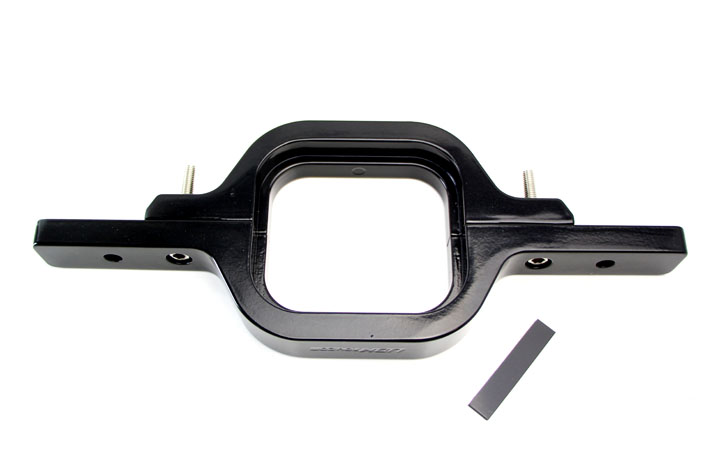

A: If the tow hitch mounting bracket is a little loose, you can grab a small rubber piece included in the package. Attach at the inner side of the tow hitch mounting bracket to make the fitment tighter and create friction as well.

For all tow hooks, all that matters is the interior dimension. The outer size may not always be precise due to the different designs of each vehicle so even if the tow hitch mounting bracket is fully tightened, there may be a bit of wiggle room. However, the rubber piece will easily solve that.





Please visit LED pod fog light kit FAQ/tech support for more detail.
