Check out the Chevy Silverado/Avalanche LED Light Bar Kit (35-921).

Step 1: Attach the brackets on the LED light bar in a perpendicular fashion. You have two options on how you want to screw in the components together. The first hole has the LED light bar poke out a bit more and the second hole allows the LED light bar to sit back a bit.

In this guide, we used the first hole so the LED light bar pokes out a bit. Make sure to attach the mounting on both ends of the LED light bar.

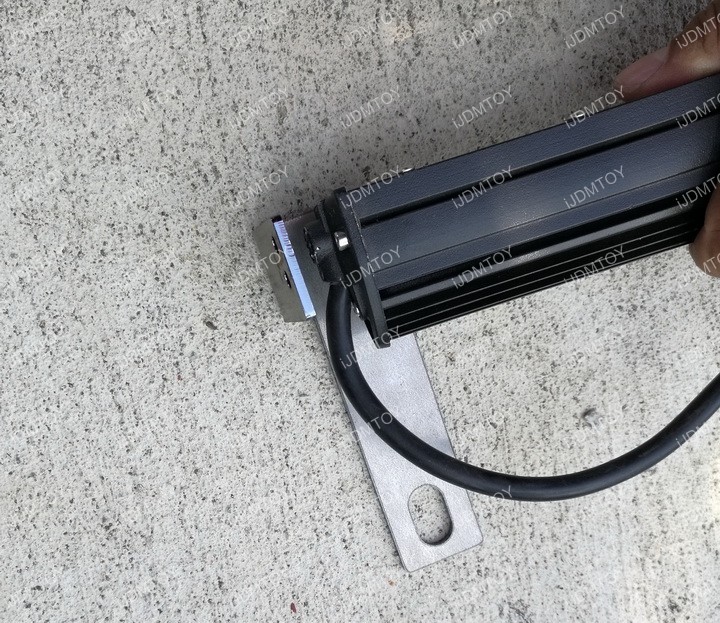

Chevy GMC LED Light Bar 01

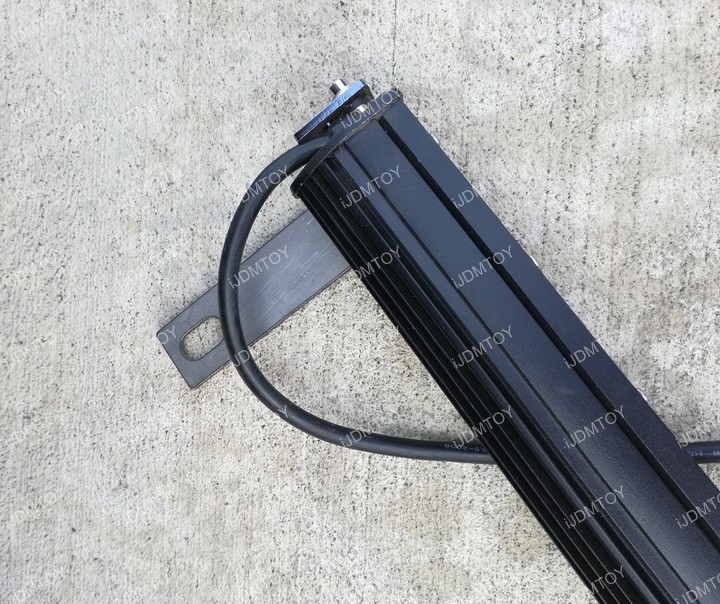

Chevy GMC LED Light Bar 02

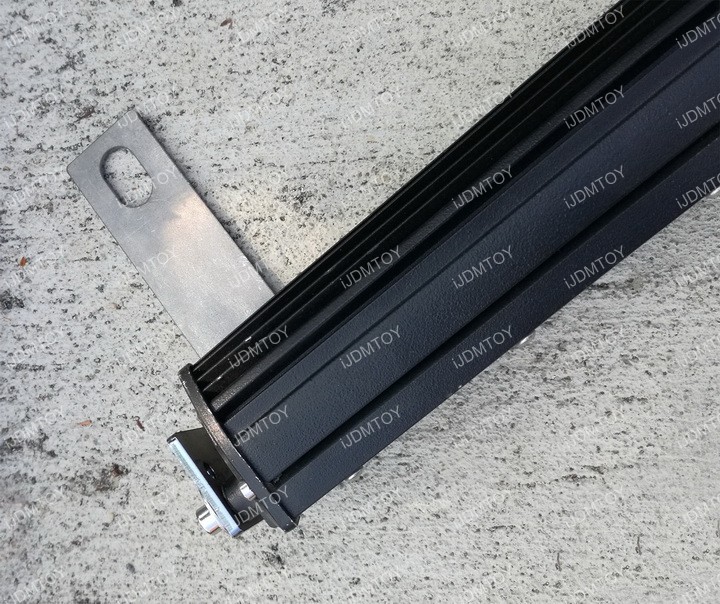

Chevy GMC LED Light Bar 03

Step 2: Open the hood and remove the plastic cover, it's held on by clips.

Chevy GMC LED Light Bar 04

Chevy GMC LED Light Bar 05

Step 3: Once you removed the plastic cover, look for the screw in the red box and remove it on both sides. Be sure to remove the two outer screws. You'll be able to see this screw when you're looking through the grille opening.

Chevy GMC LED Light Bar 06

Chevy GMC LED Light Bar 07

Chevy GMC LED Light Bar 06a

Step 4: Grab the LED light bar and make sure it's tightly mounted onto the metal brackets.

Chevy GMC LED Light Bar 08

Step 5: Insert the bracket and bolt it onto the screw that you removed in the previous step.

Tighten everything and make sure the LED light bar faces forward appropriately.

Chevy GMC LED Light Bar 09

Chevy GMC LED Light Bar 10

Chevy GMC LED Light Bar 11

Chevy GMC LED Light Bar 12

Chevy GMC LED Light Bar 13

Step 6: For a detailed wiring guide, you can visit truck LED wiring to see how to wire up the Chevrolet LED light bar with a switch.

You'll also be able to notice a bit of a curved illusion after installation. That's because the Chevy's bumper sits with a slight curvature, making the LED light bar look like it's curved.

Chevy GMC LED Light Bar 14
