You can find this product under Honda FIT LED Rear Pillar Lights (72-001).

This is the rear bulb-less side pillar reflectors you will be replacing:

Honda Fit Taillight Install 01

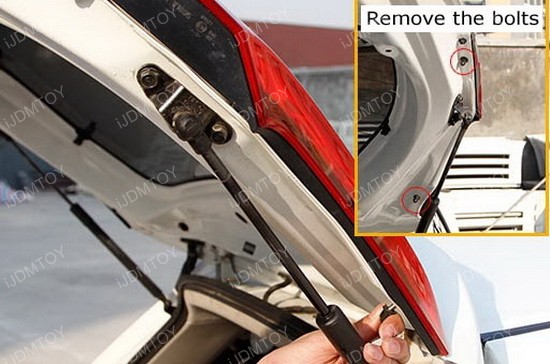

Step 1: There are two bolts you need to remove before you can take off the rear side pillar reflectors. You can then proceed to remove the rear side pillar reflectors on the rear windshield.

Honda Fit Taillight Install 02

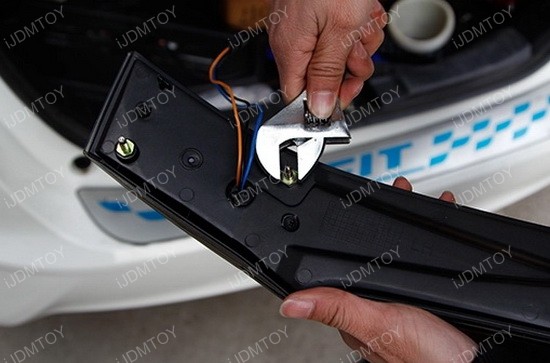

Step 2: This depends on the production of your Honda FIT, but some have a push tab that you need to push for lock-in. For any Honda FIT without the hole for this push tab, you can just remove it with a wrench.

Honda Fit Taillight Install 03

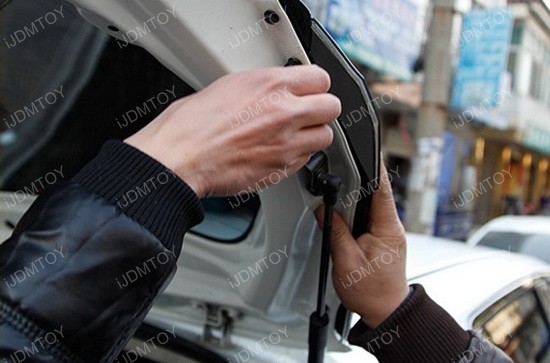

Step 3: Install back the LED rear pillar lights.

Honda Fit Taillight Install 04

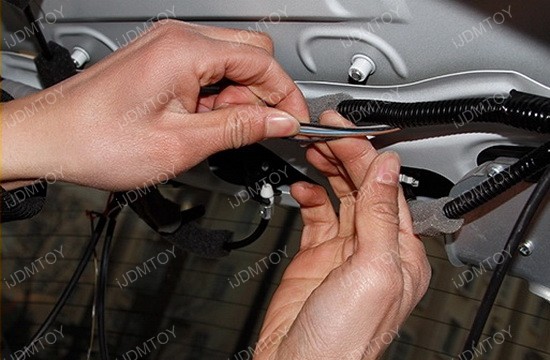

Step 4: Extend the given wires to the existing harness: black to ground, red to tail light, white to brake light.

Honda Fit Taillight Install 05

Afterwards, this rear side pillar reflector becomes an LED tail light with the same style as your existing one.

Test to make sure everything works. Enjoy your Honda FIT LED Rear Pillar Lights!

Day:

Honda Fit Taillight Install 06

Night:

Honda Fit Taillight Install 07
