Installation guide for JDM Full LED Front Turn Signal Lamps with 3D Fiber Optics for 2013-up a Scion FRS.

You can find this product under JDM Full Front Scion FR-S LED Turn Signal (75-028).

Step 1: Use a pry tool to carefully pop out the stock bezel cover. Remove it and place it to to side.

Scion FRS turn signal 01

Scion FRS turn signal 02

Step 2: There are three bolts at the outer corner of the wheelbase that you will need to remove as well as some bolts behind the stock turn signal lamp in order for the entire assembly to come off.

Scion FRS turn signal 03

Scion FRS turn signal 04

Step 3: Unplug the stock turn signal bulb from the stock harness.

Scion FRS turn signal 05

Step 4: Pigtail and t-tap the wires from the LED lamps back to the stock 7443 sockets as well as the load resistors to prevent the LED lights from hyper flashing. Tap the red/black wires to the ACC 12V and the ground. You can also tap the wires to the stock side marker to enable as parking lights.

Scion FRS turn signal 06

Scion FRS turn signal 07

http://www.ijdmtoy.com/ebay/SKUS28/Scion-FRS-LED-Turn-Signal-Assembly-03.jpg

Step 5: Replace the new LED lamps and bolts back and test to make sure everything works.

Scion FRS turn signal 08

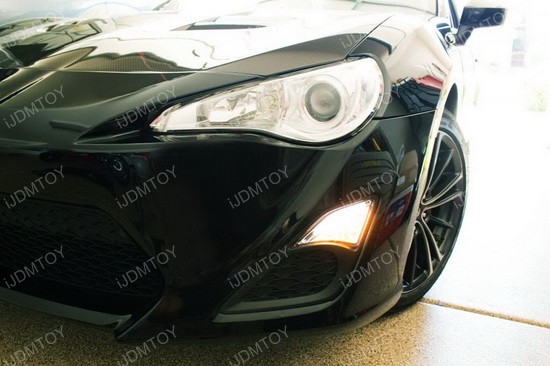

Scion FRS turn signal 09
