2003-2015, 2017-up Nissan Titan Lower Bumper Mount LED Light Bar Kit Installation Guide

Check out the Nissan Titan Lower Bumper LED Light Bar (35-938).

This is an iJDMTOY exclusive design LED light bar assembly for the 2003-2015, 2017-up Nissan Titan with specially crafted metal mounting brackets so that you will not have to drill into the truck for installation.

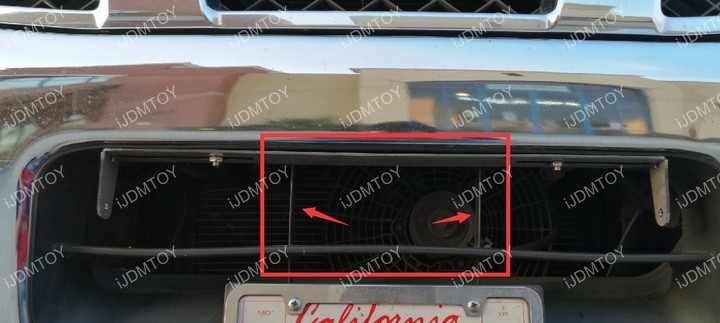

Step 1: In order to install the Nissan Titan LED light bar, you will need to trim off the 2 vertical center beams located in the lower bumper area. Later in the installation, you will be able to see that in order to accommodate the LED light bar, you will have to cut off the center vertical beams.

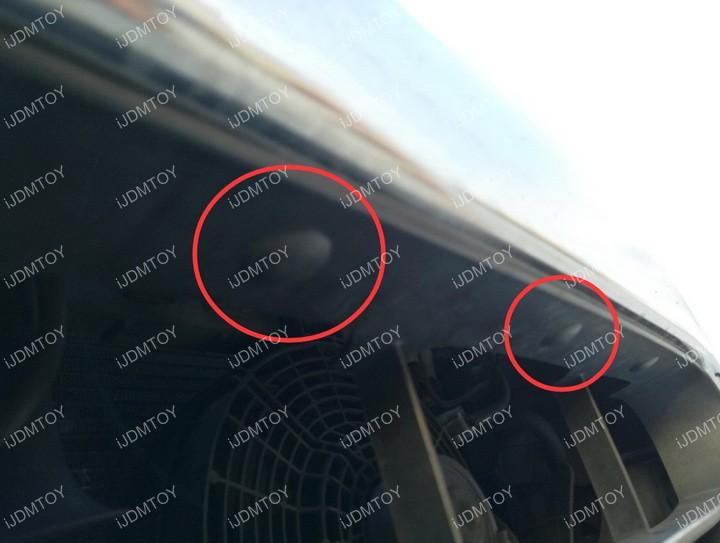

Step 2: Remove the 2 center clips as indicated. Pry them out to remove. The exposed openings are where you will be bolting the metal mounting bracket.

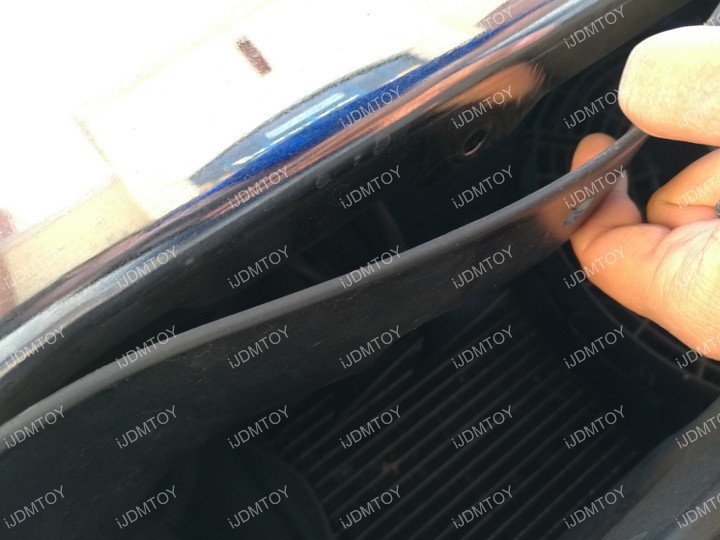

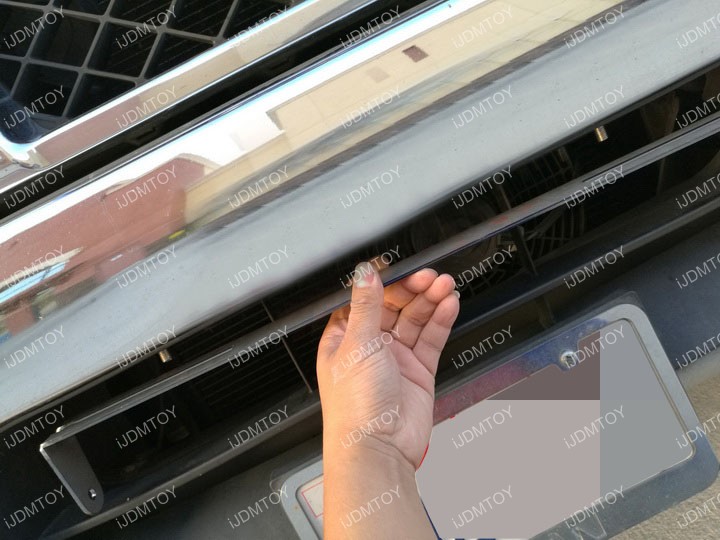

Step 3: You can see that once you nudge the plastic piece out of the way, that above the plastic piece is the metal bumper frame. You can rest assure that the LED light bar will be secured since the mounting bracket will be directly bolted to metal.

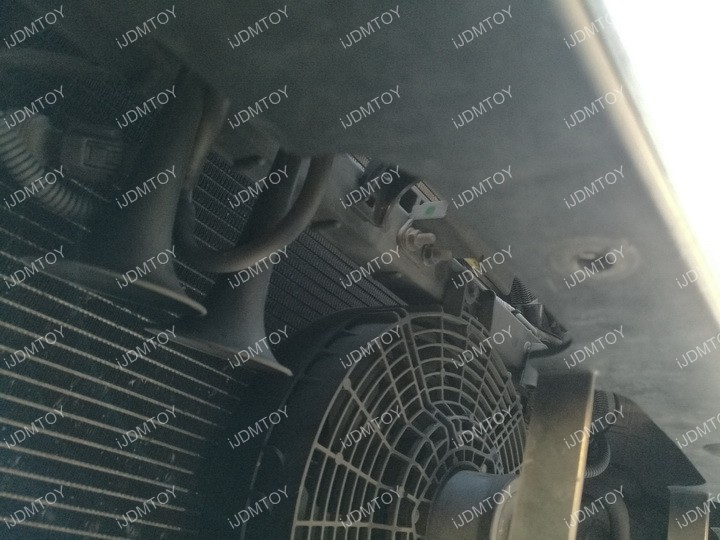

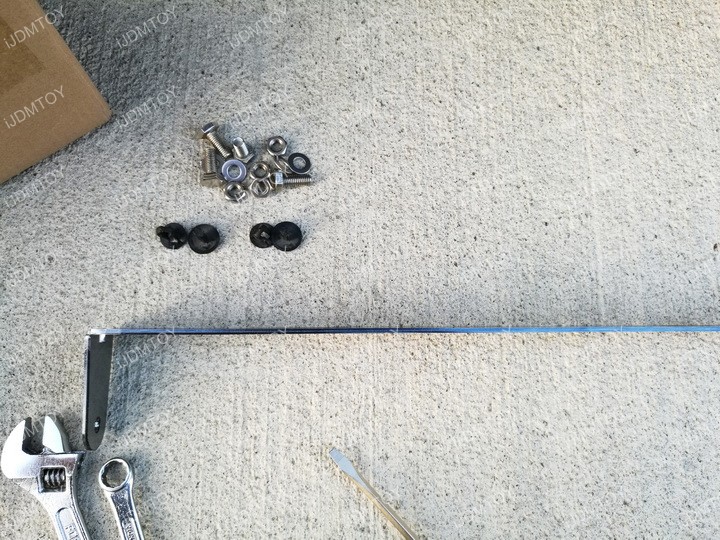

Step 4: Gather all your components like the bolts and washers. Reach above the grille frame and drop the screw down so that the threading comes out of the exposed holes from where the center clips used to be.



Step 5:

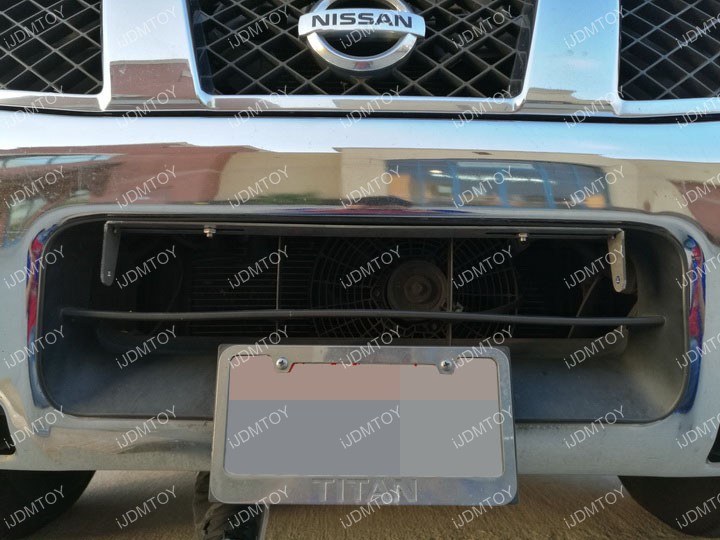

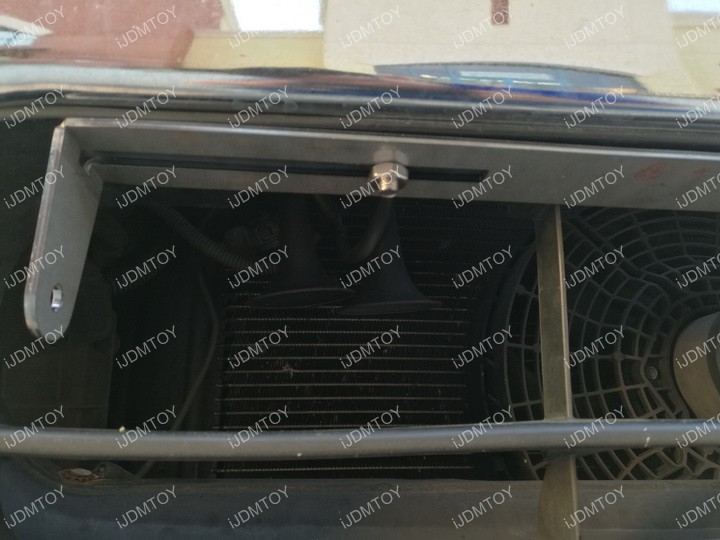

Bolt the metal mounting bracket in place and use a nut to secure. Repeat on the other side.

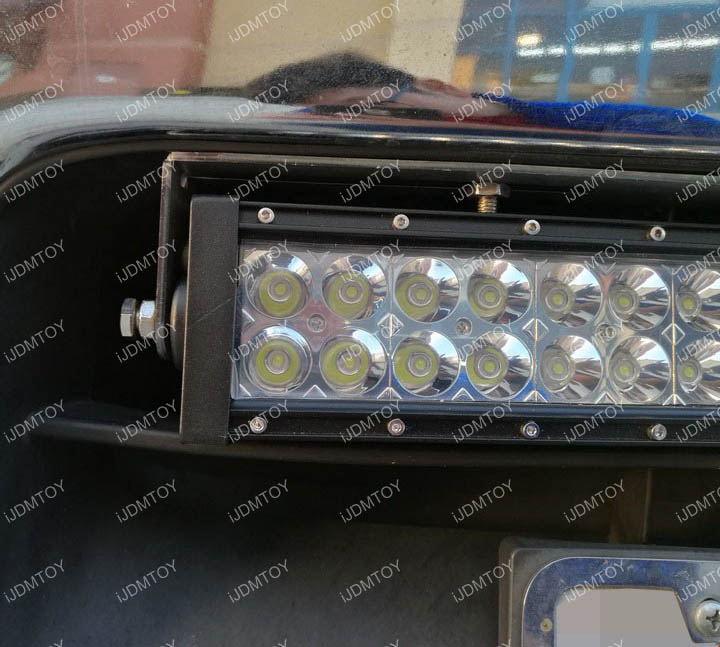

Step 6: Now secure the LED light bar in between the mounting bracket. At this step, you will be able to see why you need to trim off the vertical center beams in order to have enough room to mount the LED light bar.

Use the screw and bolt combo to secure the LED light bar in place. By using the screw and bolt combo, all three components (screw, bolt, light bar) will tighten among themselves to secure the LED light bar firmly onto the mounting bracket.

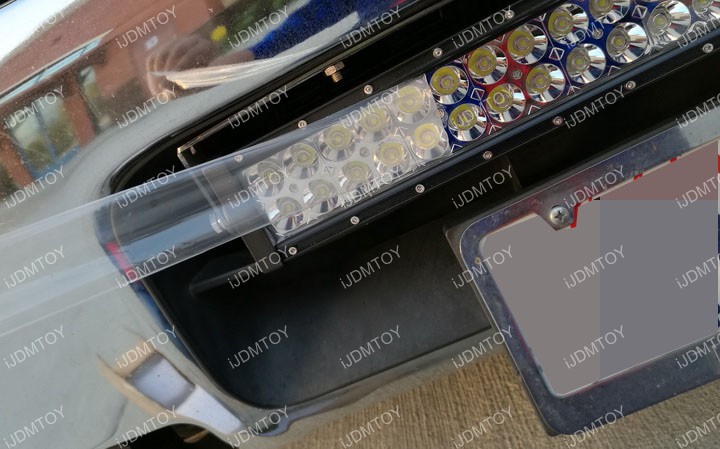

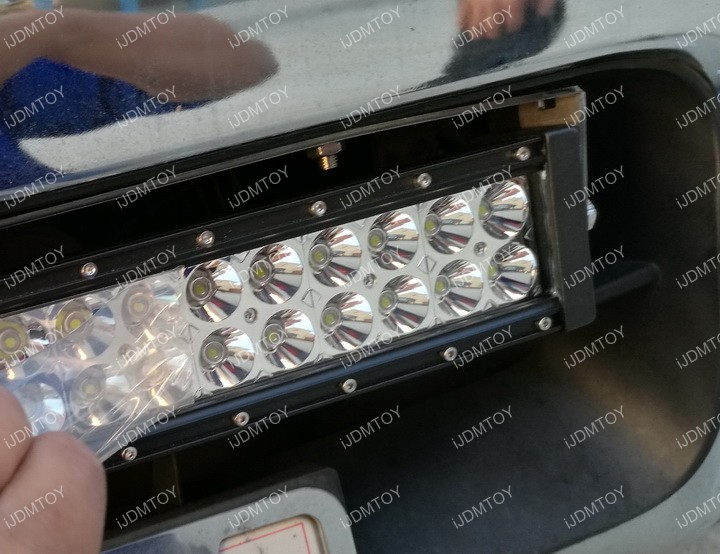

Step 7: Now for the satisfying part. Peel off the plastic film.



Step 8:
Wire up your new Nissan Titan LED light bar, check to make sure everything works, and now it's time to take your truck off-roading.
