2007-2014 Toyota FJ Cruiser Lower Grille Mounted 30" 180W LED Light Bar Kit Installation Guide

This is an installation guide for the SKU: 35-939

For more information on th 30" 180W high powered double row LED light bar for the 2007-2014 Toyota FJ Cruiser please view the product info page. Please note that this installation will require bumper modification. This will give your LED light bar room to be mounted and allow the high output light to shine uninhibited.

Step 1: Cut off the front mesh on your FJ Cruiser to make room for the LED light bar.

Step 2: Open your hood to gain access to the mounting area. We recommend you also removing the front bumper to give yourself more space to work with.

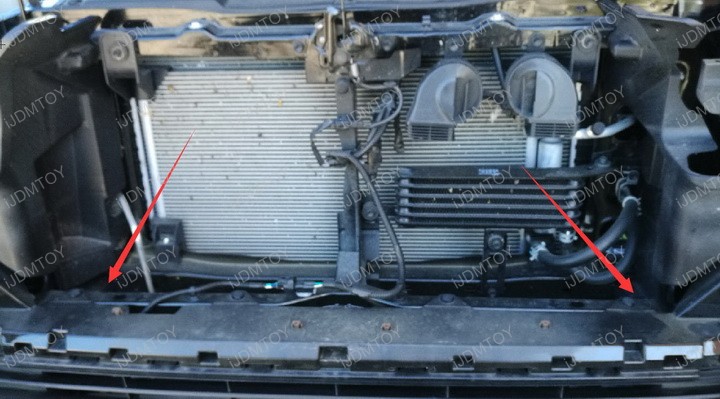

This close-up indicates where you will be mounting the LED light bar.

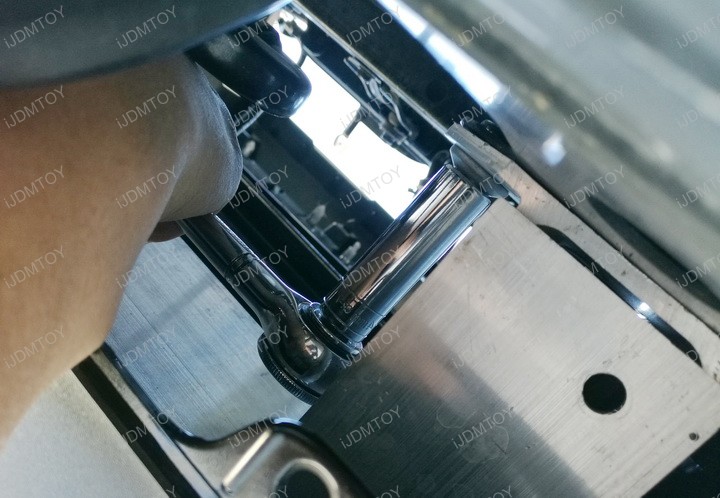

Step 3: Remove the bolt to expose the screw.

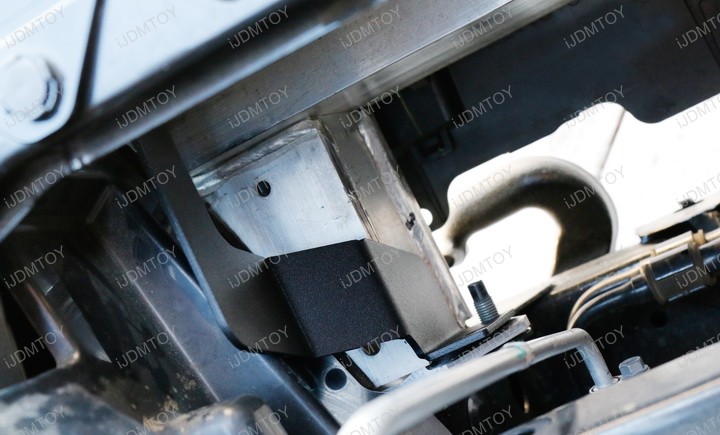

Step 4: Mount the included mounting brackets by the hole circled in red onto the exposed screw. Make sure the support brackets face outwards.

Here is a diagram to help you locate the mounting locations on your FJ Cruiser. This picture also applies to the 2014-up Tundra & 2016-up Tacoma LED light bars.

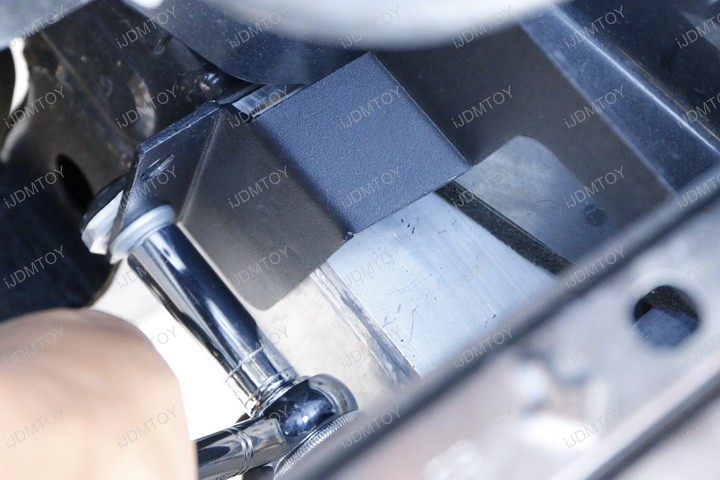

Step 5: Fix the LED light bar in between the mounting brackets and secure with a set of nuts and washers.

Step 6: Connect the wires to an existing harness or install with a relay wiring harness kit.

Step 7: Test your LED light bar to make sure it functions as it should. Once you've confirmed that it does, put your bumper back on to finish up and begin enjoying your new LED light bar!
