2007-2017 Jeep Wrangler JK LED White Daytime Running Light Amber Turn Signal Lamp Installation Guide

You can find this product under Jeep Wrangler LED DRL/Turn Signal Lamp (75-085).

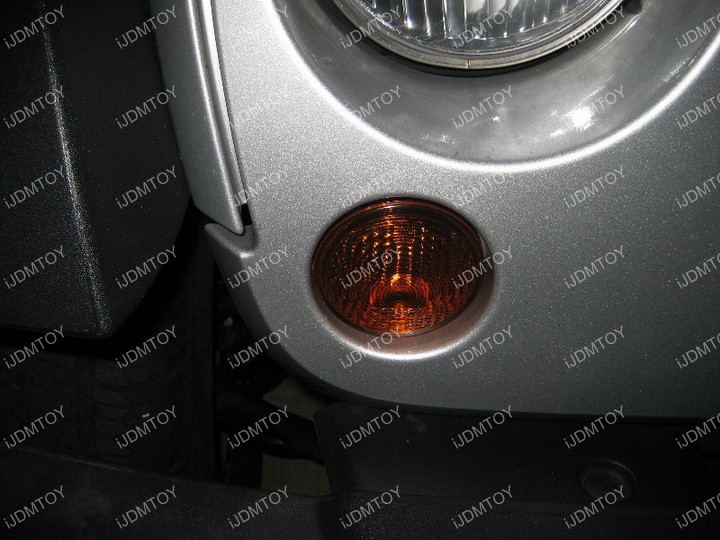

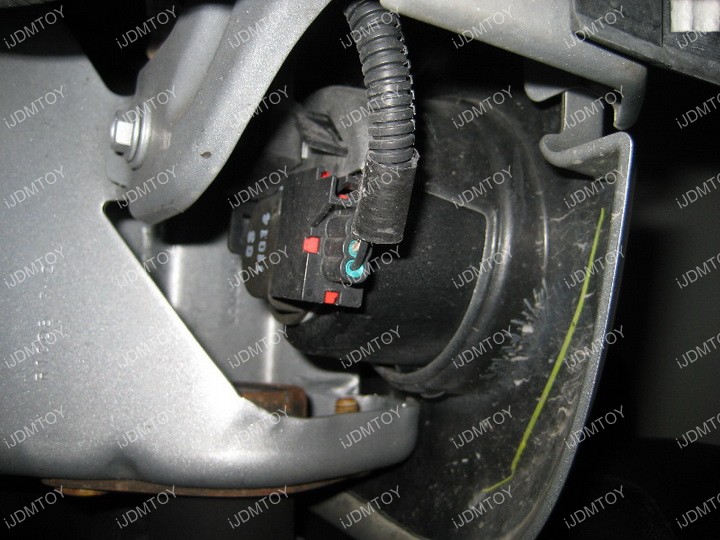

Step 1: First you will need to remove the stock turn signal lamp. Reach your hand behind the bumper and take out the turn signal lamp.

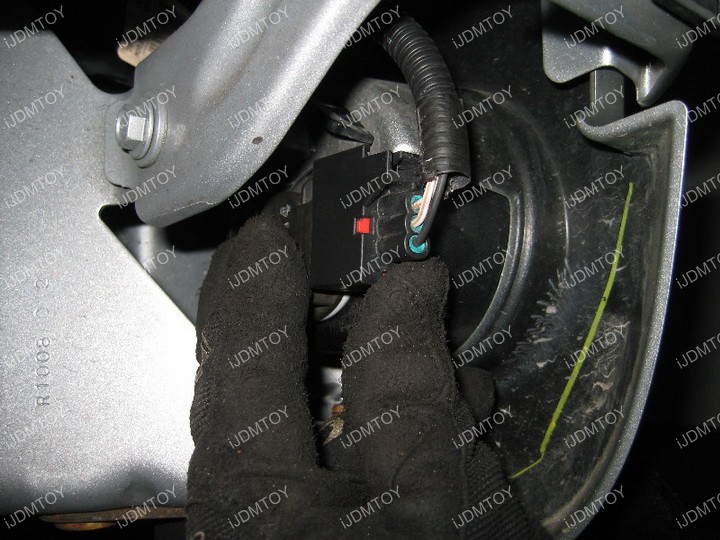

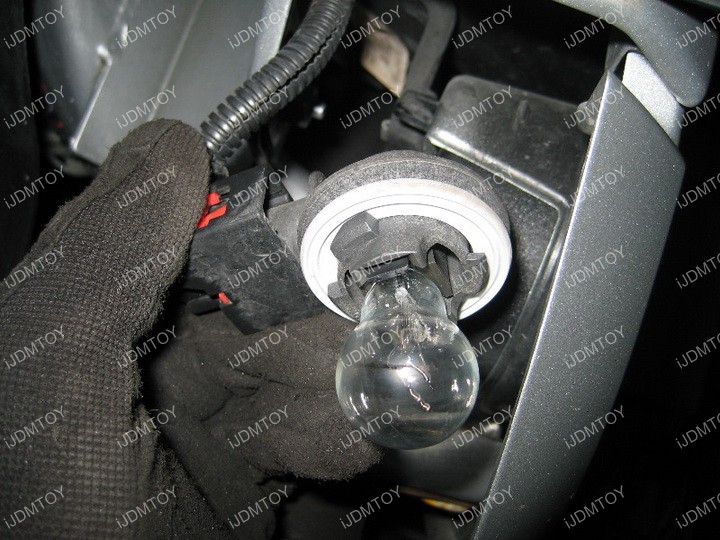

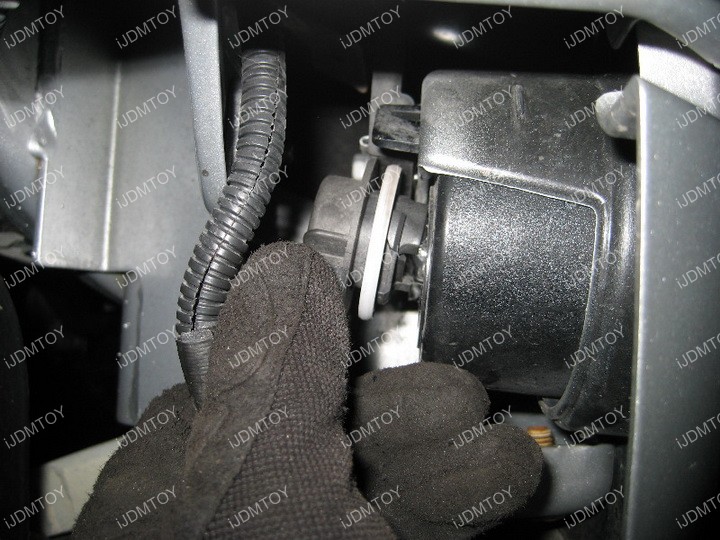

Step 2: Unplug and remove the stock turn signal bulb. Detach the bulb from the bulb base socket but make sure the socket is still connected to the stock harness.

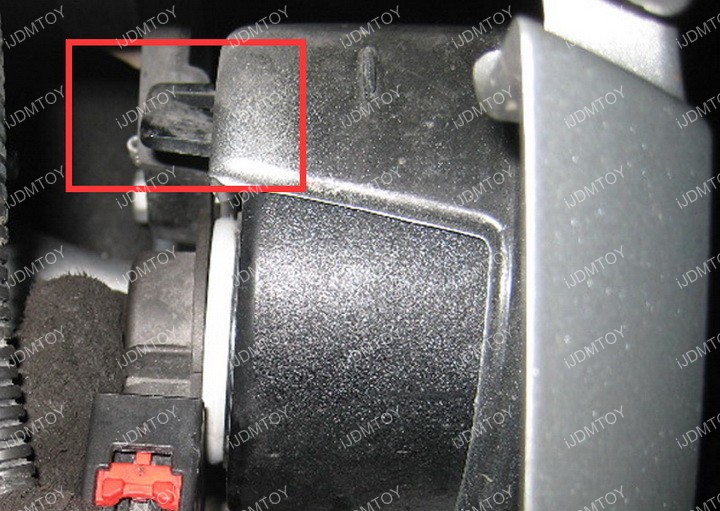

Step 3: Now you'll need to remove the stock turn signal lamp. Be mindful of the two tabs that are holding the lamp in place. Push down the tabs to release the stock turn signal lamp.



Step 4: Directly install the new LED DRL/turn signal lamp assembly. Be sure to insert it so the bars are vertical. Make sure that the two tabs lock in place to secure your LED assembly.

Connect the wires:
Connect the resistor adapter.
Connect turn signal light adapter to the existing turn signal bulb base
Connect the red wire to the ACC or parking light 12V+



Check to make sure everything works and enjoy your new Jeep Wrangler LED Daytime Running Lights/Turn Signal Lamp Assembly.
