2007-2017 Jeep Wrangler JK LED Daytime Running Light Turn Signal Lamp Installation Guide

You can find this product under Jeep Wrangler LED Turn Signal Lamp (75-078).

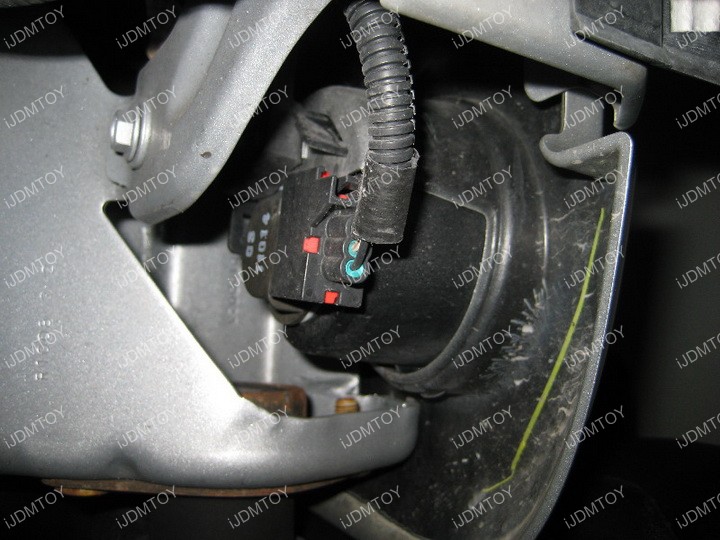

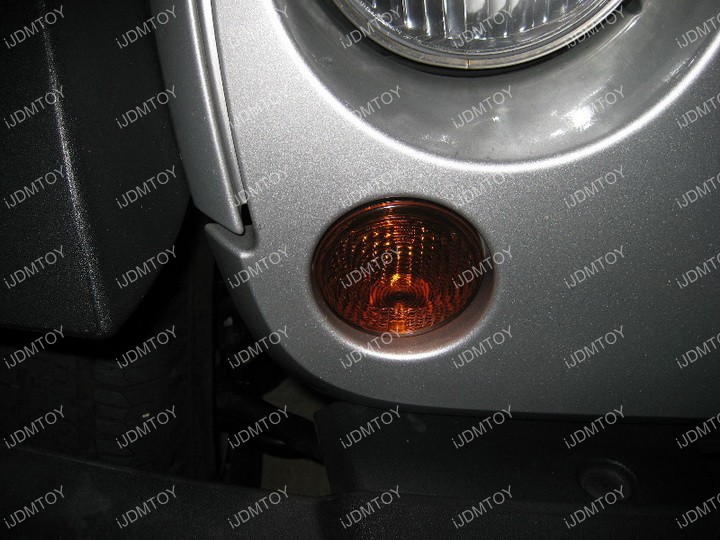

Step 1: First you will need to remove the stock turn signal lamp. Reach your hand behind the bumper and take out the turn signal lamp.

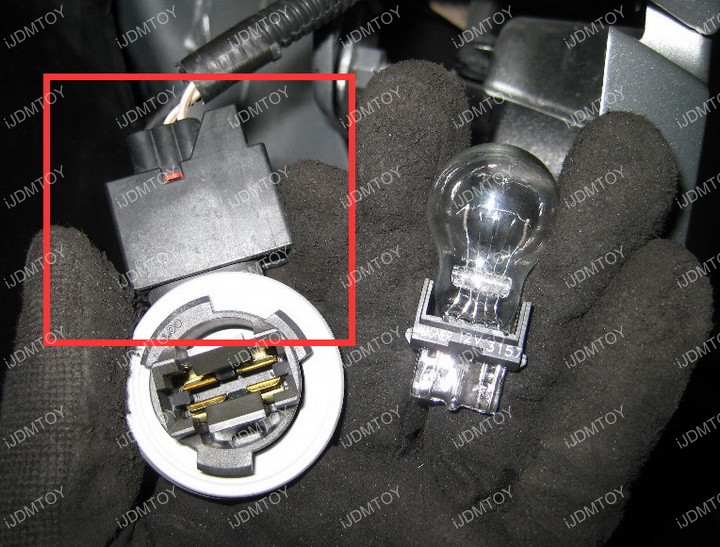

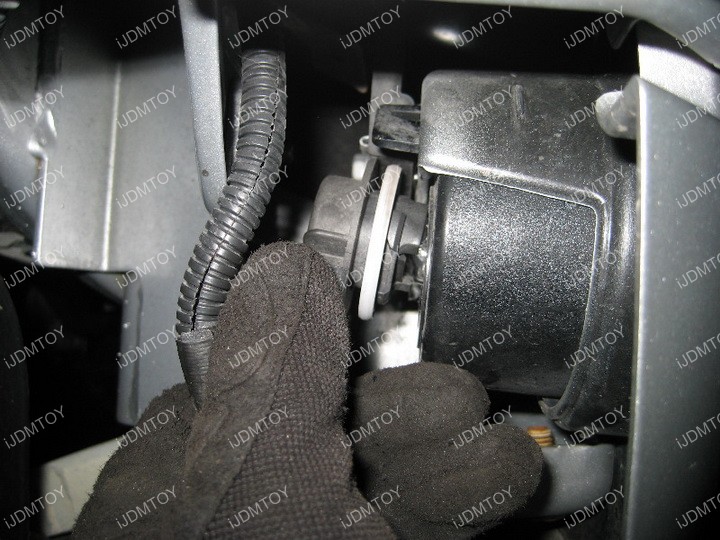

Step 2: Unplug and remove the stock turn signal bulb. Detach the bulb from the bulb base socket. You'll also need to detach the bulb base socket from the stock harness.

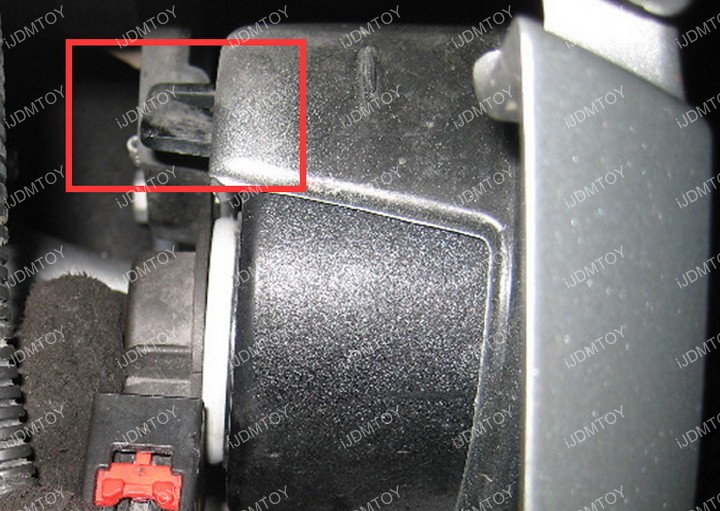

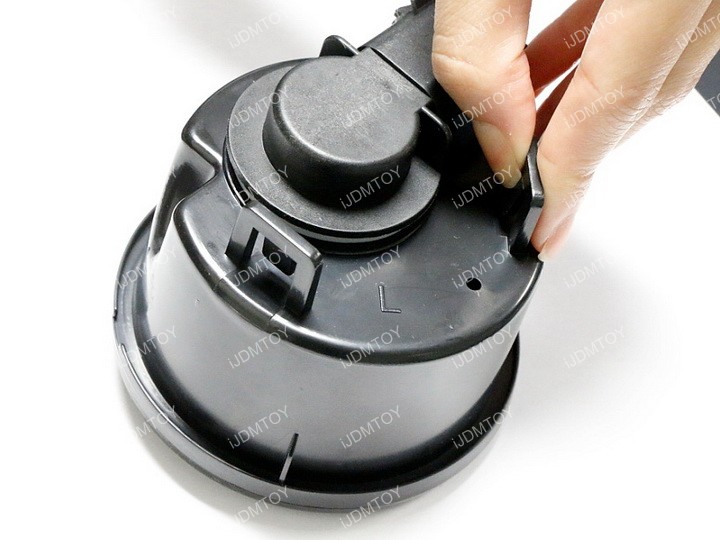

Step 3: Now you'll need to remove the stock turn signal lamp. Be mindful of the two tabs that are holding the lamp in place. Push down the tabs to release the stock turn signal lamp.

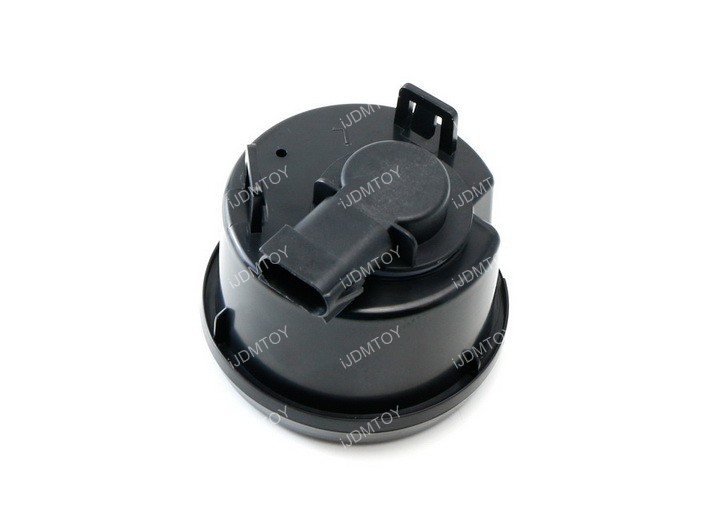

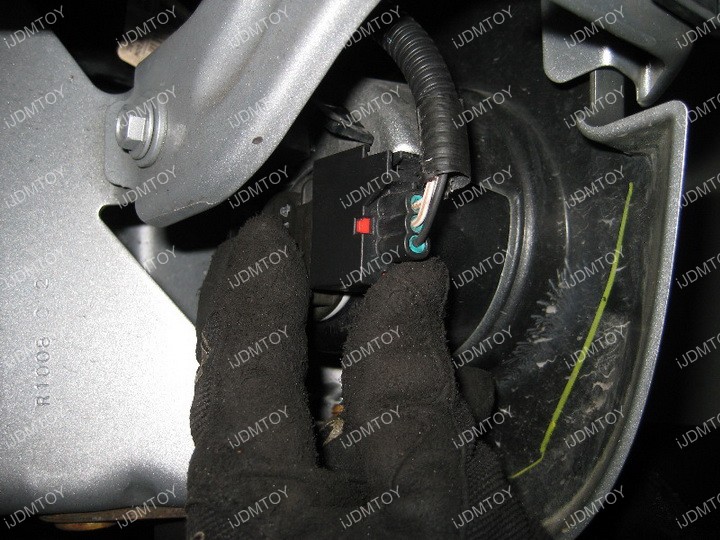

Step 4: Directly plug in the the Jeep Wrangler LED Turn Signal Lamp directly into the stock harness. Install the new LED assembly exactly the same way you removed the stock turn signal lamp. Make sure to clip the two tabs back in place to secure.



Note: This Jeep Wrangler LED turn signal assembly comes with built-in load resistors. This will prevent hyperflash for most vehicles, BUT if you modded your Jeep Wrangler with aftermarket taillights or other similar assemblies, you may need additional resistors for hyperflash.
