You can find this product under Jeep Wrangler LED DRL/Turn Signal Lamp (75-085 75-128).

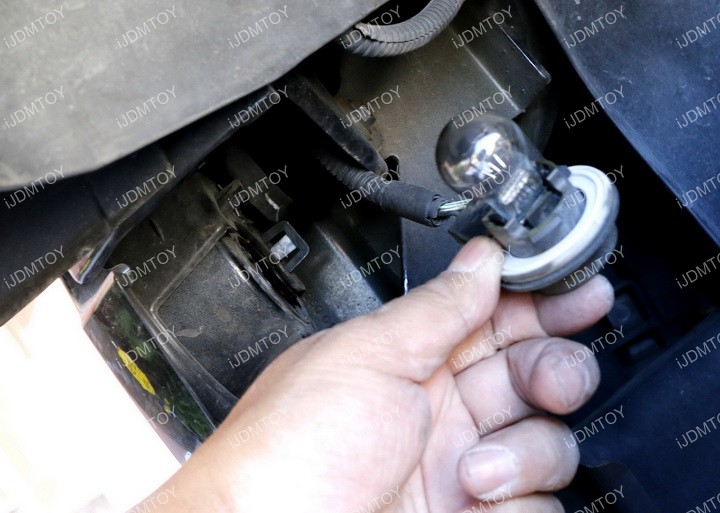

Step 1: Remove the stock turn signal bulb.
Make sure you've pulled out the correct bulb! You can compare your bulb with the one in this installation guide to verify. Also, when you remove the bulb, make sure to remove the bulb only. Don't remove the bulb socket as well.

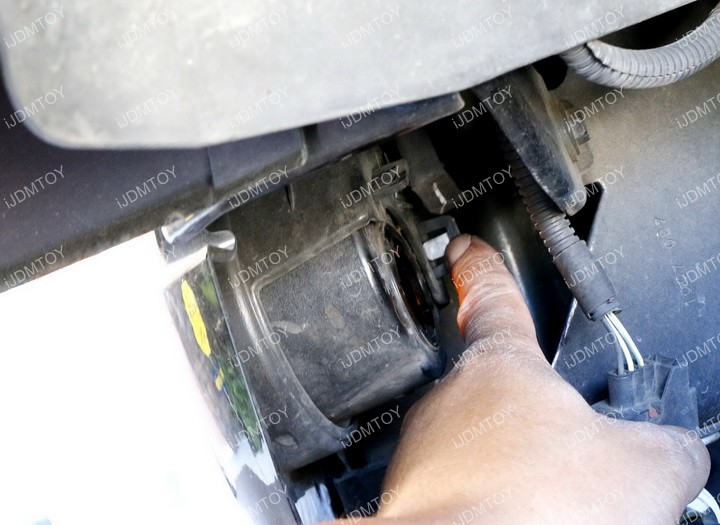

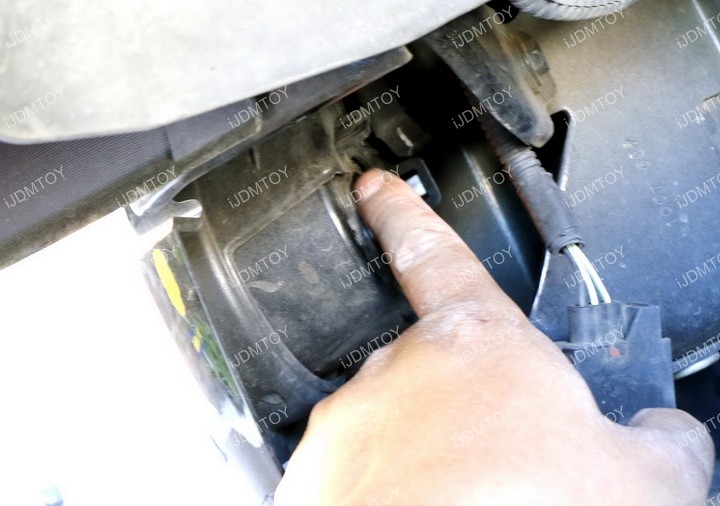

Step 2: Push down the tabs behind the stock turn signal housing to release the housing.

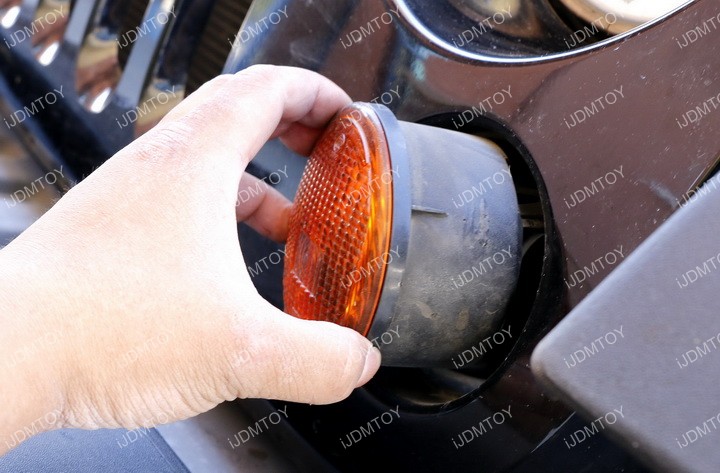

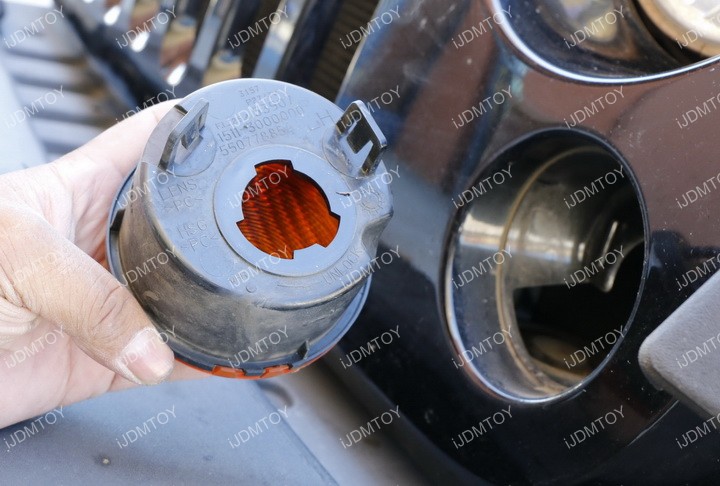

Step 3: Pull out the stock turn signal housing.

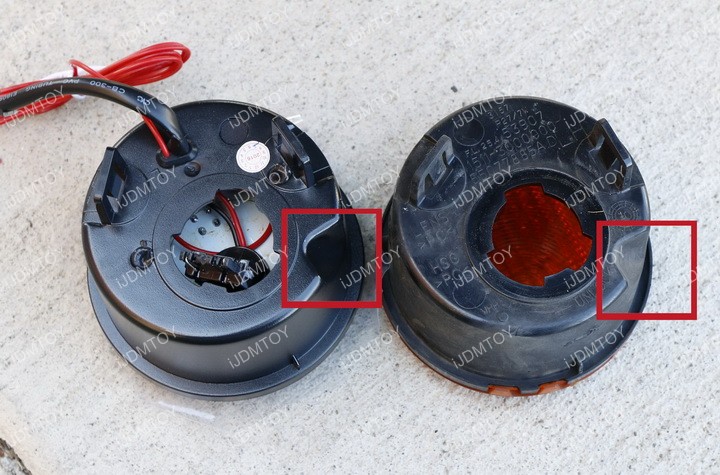

Step 4: Make sure to install the correct LED turn signal assembly on the correct side! The left and right LED assemblies look very similar, so compare with the stock assembly. There's an indicator on the LED turn signal assembly that will indicate L or R. Also you can match up the groove on the side of the LED assembly to the groove on the stock assembly to confirm the same side.
Alternatively, if the LED DRL/turn signal assembly does not "fit", try to swap sides!
Step 5:Directly install the new LED DRL/turn signal lamp assembly. Be sure to insert it so the bars are vertical. Make sure that the two tabs lock in place to secure your LED assembly.
Connect the wires:
Connect the resistor adapter.

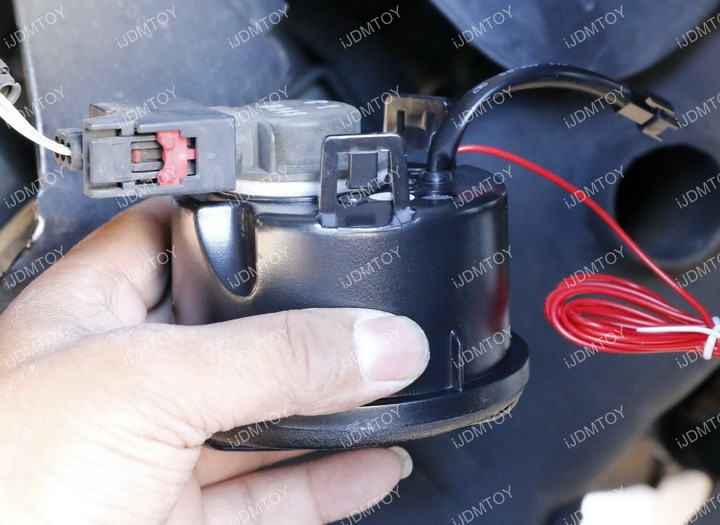

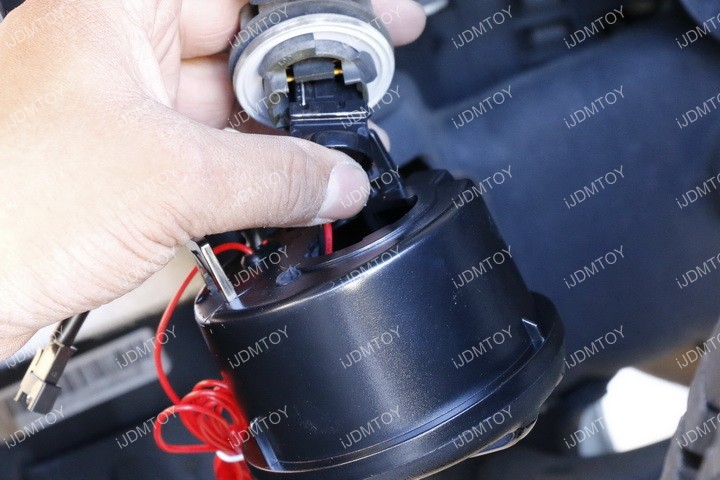

Connect turn signal light adapter to the existing turn signal bulb base
Connect the red wire to the ACC or parking light 12V+
Check to make sure everything works and enjoy your new Jeep Wrangler LED Daytime Running Lights/Turn Signal Lamp Assembly.
