2009-2014 Ford F-150, Raptor Rear High Mount LED Reverse Tail Light Installation Guide

This is an installation guide for SKU: 72-020

This tutorial will show you how to install the red or smoked lens LED high mount tail light, reverse/clearance light assembly with optional rear fog lamp for the 2009-2014 Ford F-150 and F-150 Raptor edition. The installation pictures in this guide are based on the 2014 Ford Raptor, but the steps will apply to most other high mount 3rd brake light installations.

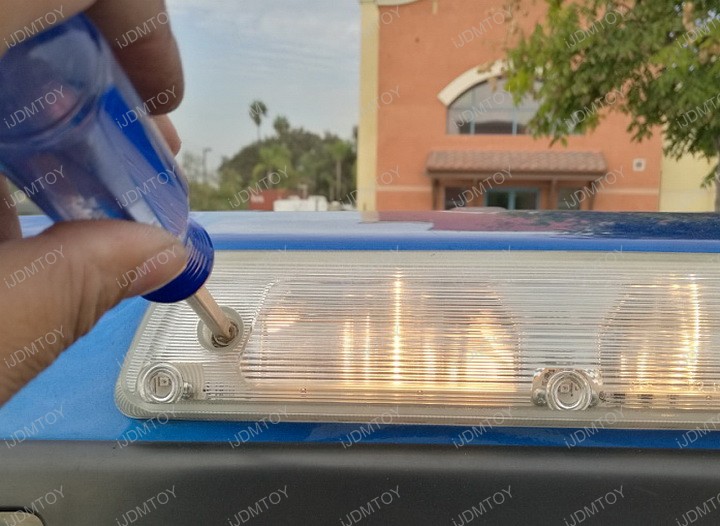

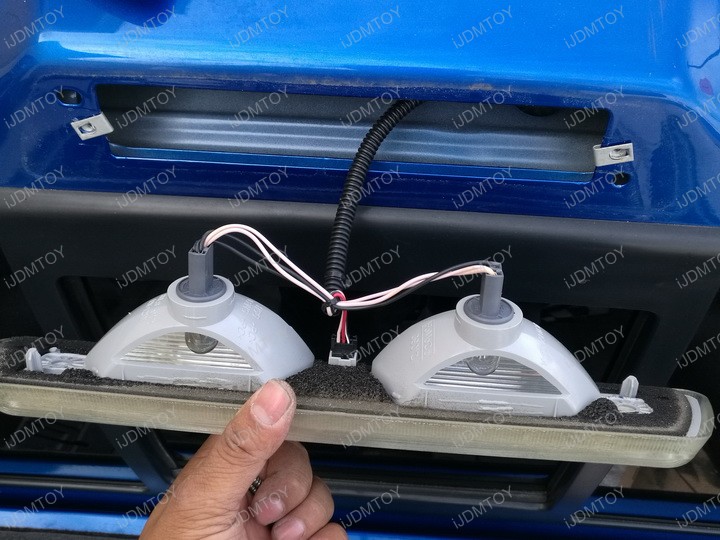

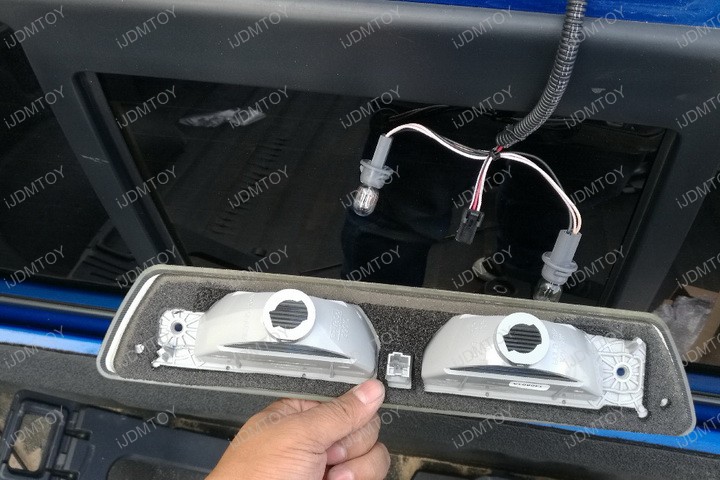

Step 1: Unscrew the bolts securing your OEM 3rd brake light. Twist to unlock the adapters.

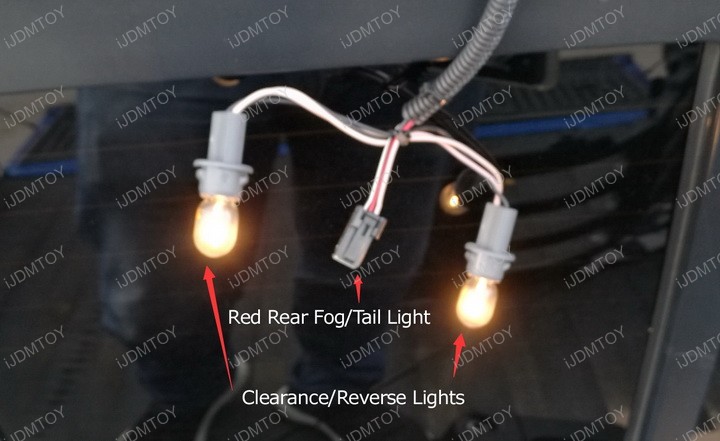

Step 2: Pull out the stock halogen clearance/reverse light bulbs from the adapters.

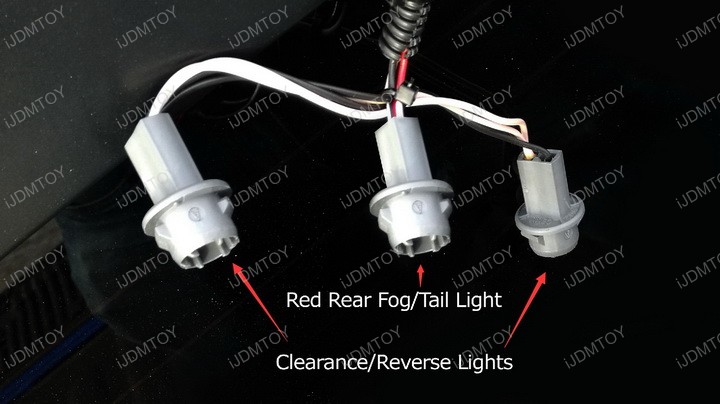

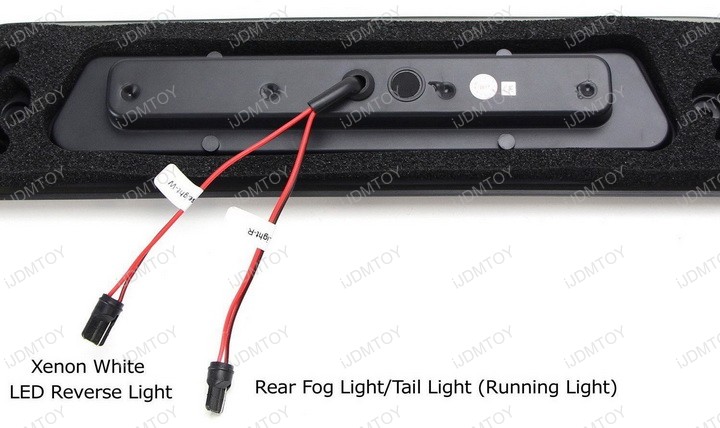

Step 3: Connect the reverse light plug into either clearance/reverse light harness and wrap the other one with black electrical tape. Connect the running light wire to the rear fog/tail light plug. Use these visual guides to help you wire the LED high mount tail light assembly.

[Ford Raptor edition]

[Ford F-150]

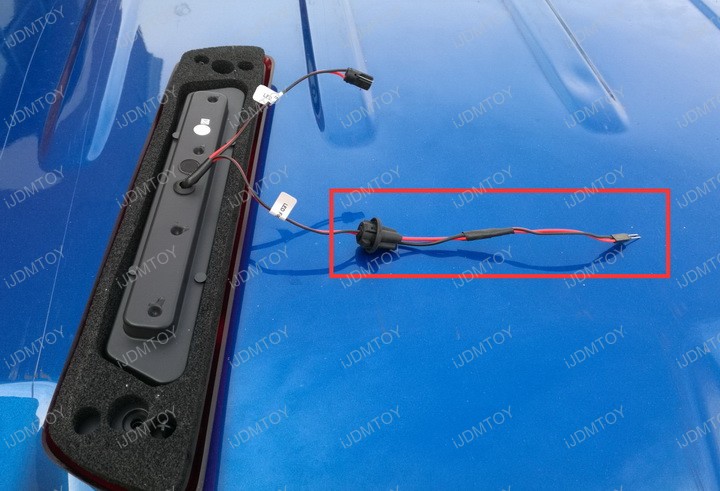

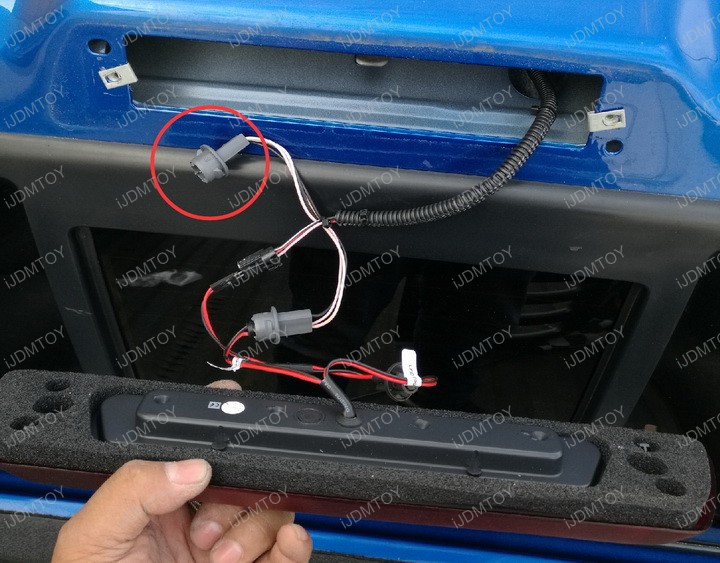

Step 4: Plug the included 2-pin adapter into the rear fog/tail light connector if you are working with a Ford F-150 Raptor edition. Connect the reverse light plug into either clearance/reverse light harness and wrap the other connector with black electrical tape. Connect the running light wire to the rear fog/tail light plug.

The 2-pin adapter is included to minimize the number of modifications needed to install this LED high mount tail light assembly.



Make sure you align the red wire of the 2-pin adapter to that of the fog/tail light connector.



Because the stock rear fog/tail light harness is a 3-pin adapter, you may have to try different slots to plug into.

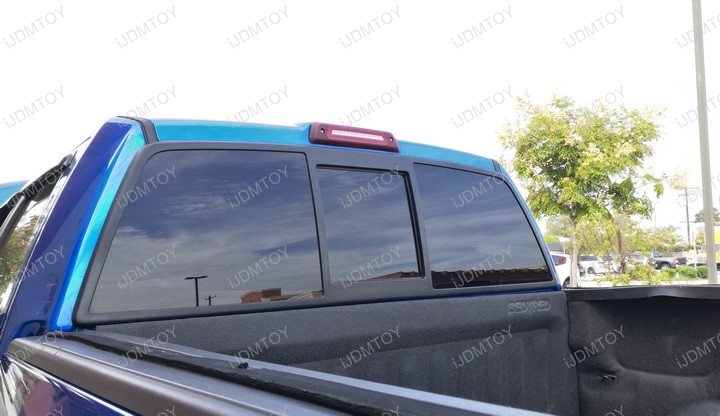

Step 5: Test the rear LED high mounted tail light to make sure it lights up. Once you've confirmed functionality, bolt on the LED reverse and tail light assembly and enjoy!
