2010-2014 Ford F-150 Raptor LED Pod Light Fog Lamp Kit Installation Guide

This is a tutorial that will show you how to install a set of LED pod lights onto the lower bumper fog area of the 2010-2014 Ford F-150 Raptor. The following steps apply to our 4 pc. CREE LED pod lights (70-201), 4 pc. 10W CREE high power LED fog lights (70-209), and the 6 pc. 10W CREE high power LED fog lights (70-283). With our specially crafted Ford Raptor support brackets, you can mount up to 3 of our uniquely designed circular faced LED pod lights or 2 of the industry standard LED pod lights.

Shown below: Triple 10W high power CREE LED pods

Step 1: Preassemble the pod light brackets. Slide the bolt through the wide side of the steel U-shaped bracket. Place the black piece in between the U-bracket's holes and slide the longer bolt through the holes. Secure the connection with a nut.

Step 2: Using the included mini Allen wrench, place the pod light bracket piece on the LED pod light and thread the small bolt through to finish the preassembling process. Repeat steps 1 and 2 as needed.

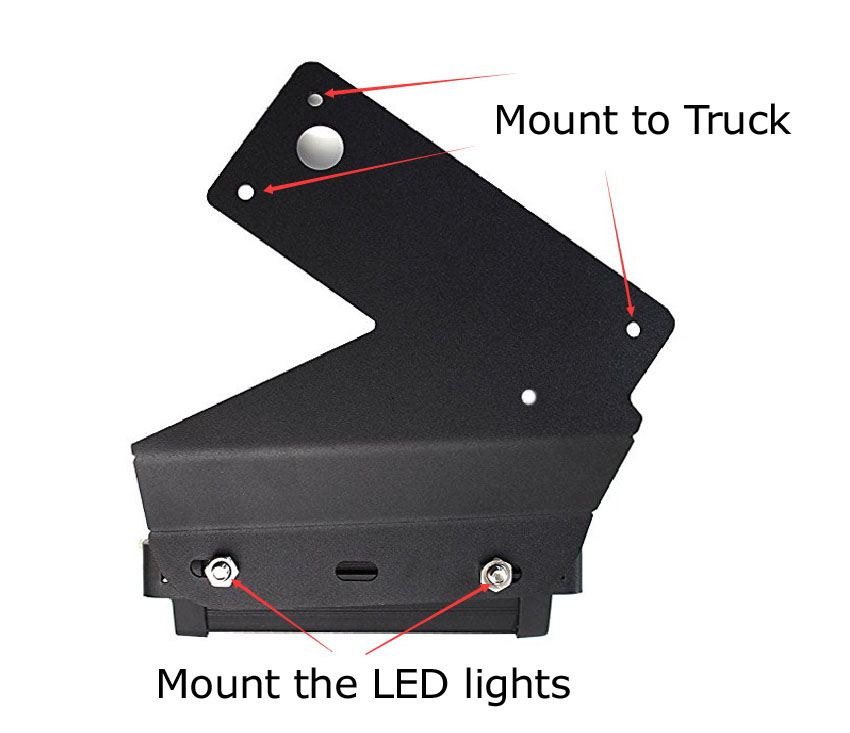

Step 3: Bolt on the LED pod lights onto the specially designed metal mounting bracket.

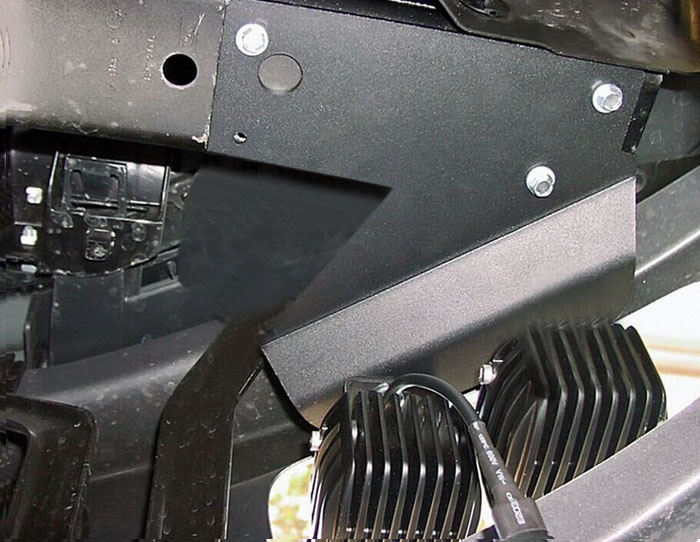

Step 4: Mount the LED pod light/bracket assembly underneath the frame of your truck. Repeat this step on the other side.

Step 5: Wire the LED pod lights using the included relay wiring harness.

Step 6: Test your LED pod lights to make sure everything works. Once you've confirmed full functionality, you can now enjoy the high output of your new Ford Raptor LED fog lights!
