2010-2014 Ford F150 Raptor High Power Dual Pod LED Fog Light Kit Installation Guide

This tutorial will show you how to install the high powered dual LED pod light kit (70-266) for the 2010-2014 Ford F-150 Raptor. This is a powerful set of LED fogs whose output matches the brawny and massive presence of your Raptor truck. With duo pod lights on each side, your Ford truck will have the most powerful set of fog lights among all other pick-up trucks on the road.

Step 1: Remove screws 2 and 3 on the angle bracket behind the fog lamp opening.

These bolts are the most accessible to unscrew so these need to be unbolted with a socket wrench first.

Step 2: Loosen screw 1. First remove the screw securing the wheel well, as well as the screw holding the plastic piece behind the wheel well.

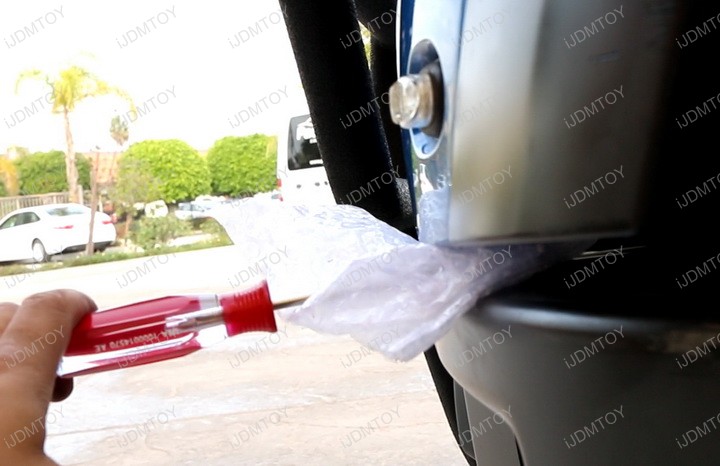

Line the bumper with a cloth or packing material to protect your Ford Raptor's paint job. Use a long flathead screwdriver to use as a lever to push the plastic piece up, revealing screw 1.

Insert a size 10 socket over screw 1. Apply the wrench onto the socket and loosen the screw.

Step 3: Slide in and shift the mounting bracket to lock it in. Tighten the bolts to secure the metal mounting brackets.

Make sure you secure the mounting brackets its corresponding sides, with the curved edge facing the fog light opening.

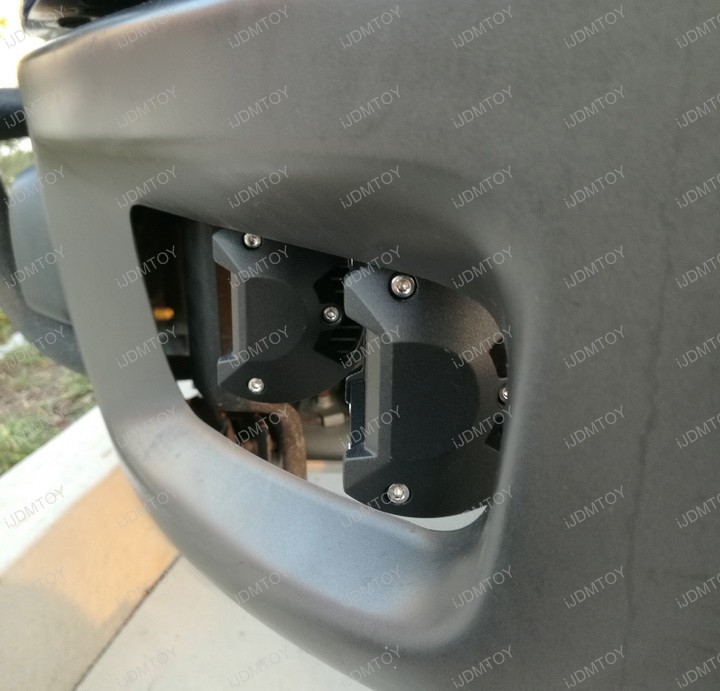

Step 4: Preassemble the LED pod lights as shown below.



Secure the 3x4 LED pod lights to the mounting brackets by first sliding a spring washer and flat washer though the bolt. Mount the LED pod lights with a flat washer and nut. Repeat steps 1-4 for the other side.



Step 5: Wire the LED pod lights using the included relay wiring harness with switch.





Step 6: Test the LED pod lamps to make sure they light up. Once you've confirmed functionality, you may now enjoy your Ford F-150 Raptor's brand new set of 3x4 LED pod lights!
