2010-2014 Ford Raptor 100W CREE LED Light Bar Fog Light Kit Installation Guide

This is a tutorial on how to install the 100W high powered CREE LED light bar fog lights (70-262) for the 2010 through 2014 Ford F-150 Raptor. This installation process is made simpler thanks to the specially designed metal mounting brackets, which allows you to just loosen screws so you won't lose any essential hardware. Once you mount and wire these LED light bar fog lights, your Ford Raptor will be equipped with one of the strongest set of LED fog lights out today.

Step 1: Remove screws 2 and 3 on the angle bracket behind the fog lamp opening.

These bolts are the most accessible to unscrew so these need to be unbolted with a socket wrench first.

Step 2: Loosen screw 1. First remove the screw securing the wheel well, as well as the screw holding the plastic piece behind the wheel well.

Line the bumper with a cloth or packing material to protect your Ford Raptor's paint job. Use a long flathead screwdriver to use as a lever to push the plastic piece up, revealing screw 1.

Insert a size 10 socket over screw 1. Apply the wrench onto the socket and loosen the screw.

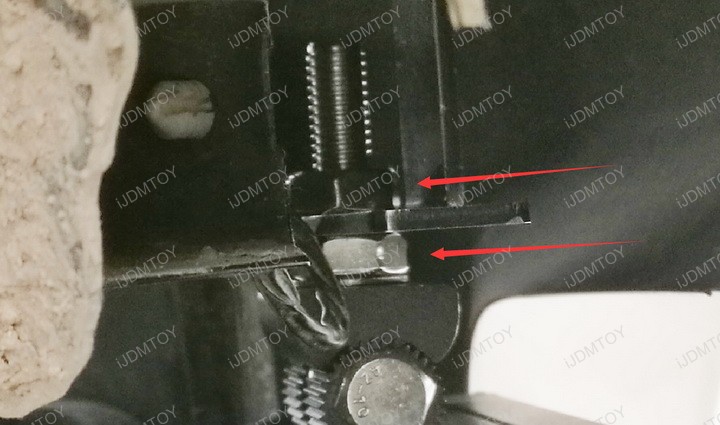

Step 3: Slide in and shift the mounting bracket to lock it in. Tighten the bolts to secure the metal mounting brackets.

Make sure you secure the mounting brackets its corresponding sides, with the curved edge facing the fog light opening.

Step 4: Place metal rail cap over the rail piece on the LED light bar fog light. Secure the rail cap onto the rail piece using a washer and nut.

Step 5: Mount the LED light bar onto the mounting bracket. Tighten the LED light bar to the specially designed metal mounting bracket with a nut. Repeat steps 1-4 for the other side.

Step 6: Wire the LED light bar fog lights using the included relay wiring harness with on/off switch.

Step 7: Test the LED light bar fog lights to make sure they light up. Once you've confirmed that they light up, you may now enjoy your Ford F-150 Raptor's new set of LED light bar fog lights!

Find this and more off-road truck LED lighting today!
