2011-2016 Ford F250 F350 F450 How to Assemble the LED Fog Light Kit for Installation

This guide will show you how to assemble the high powered LED fog lamp for 2011-2016 Ford F-250 F-350 F-450 (70-927) Super Duty series for installation.

Before we begin, please note that the cuts on the rear-side bezel shown below. We receive these as is from the manufacturer pre-cut so the LED fog light will have clearance.

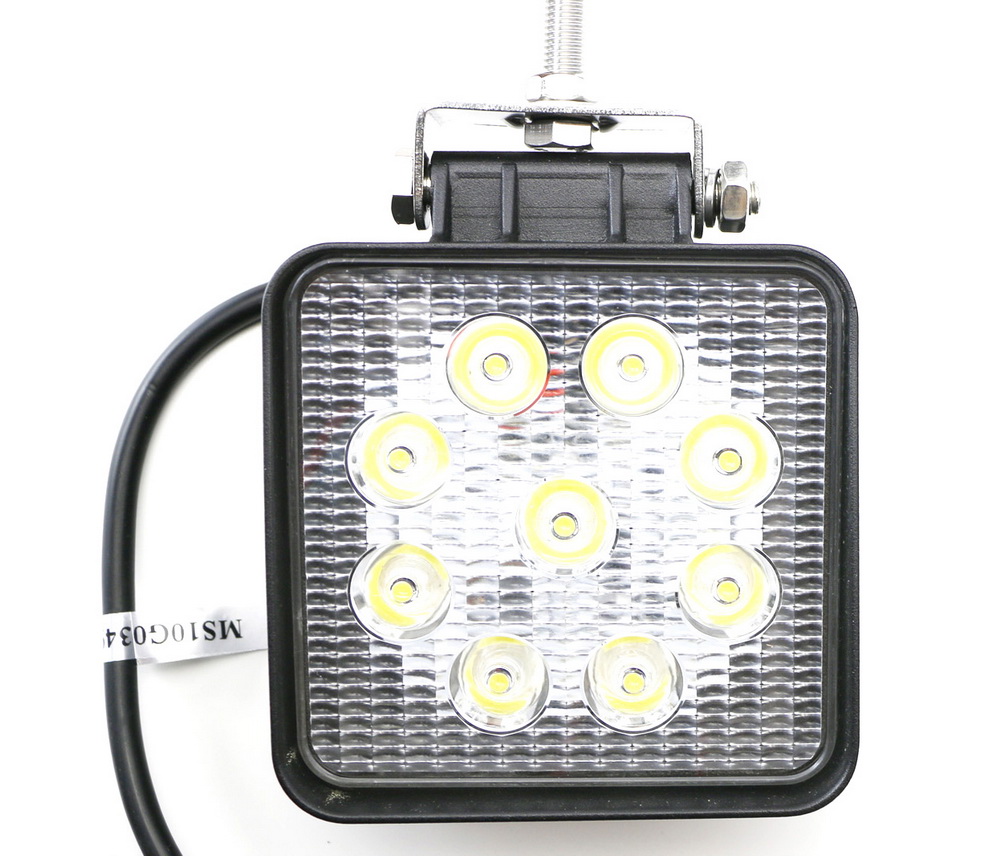

Step 1: Assemble the holding brackets to the LED fog light. Thread the shorter bolt through the U-shaped metal piece. Align the U-shaped metal piece with the holes of the LED fog light. Run the longer bolt through and secure with a spring washer and nut.

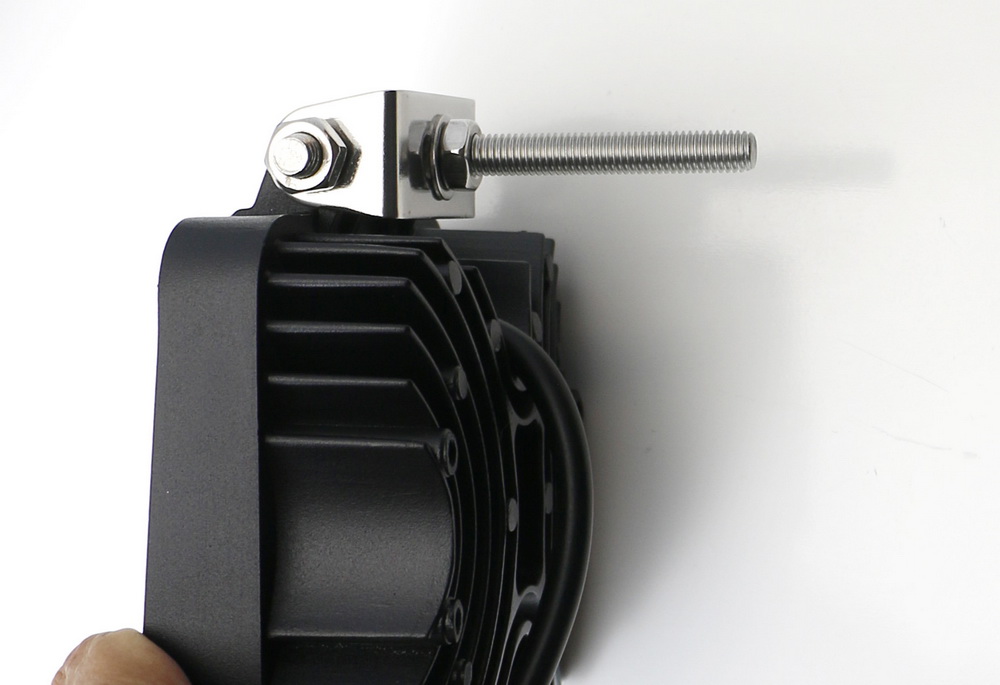

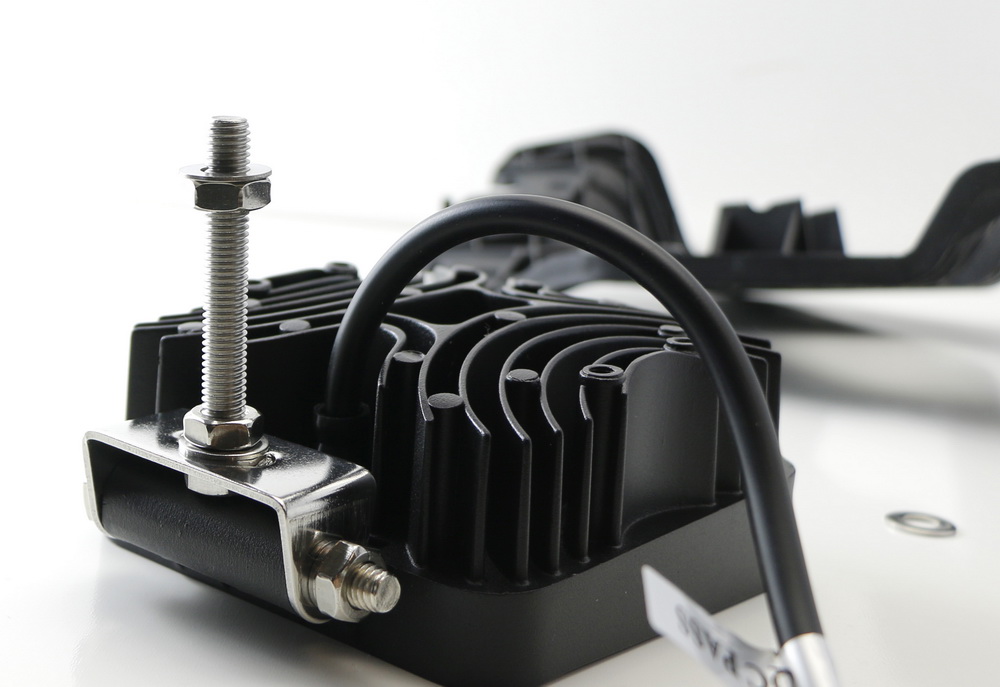

Step 2: Secure the U-shaped bracket through the longer end and screw in a spring washer and nut. Make sure the U-shaped bracket is secured by the very top of the gap.

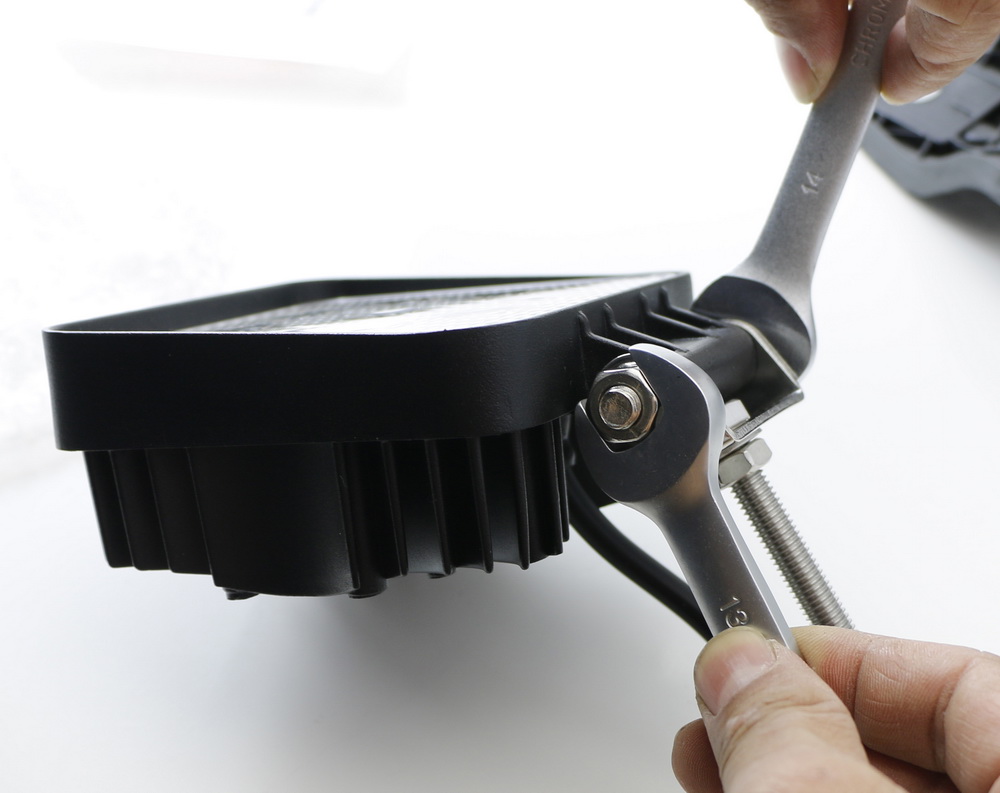

Step 3: Tighten the nut securing the metal piece and the pod light together. Only tighten it enough so that you can still turn the metal piece over.

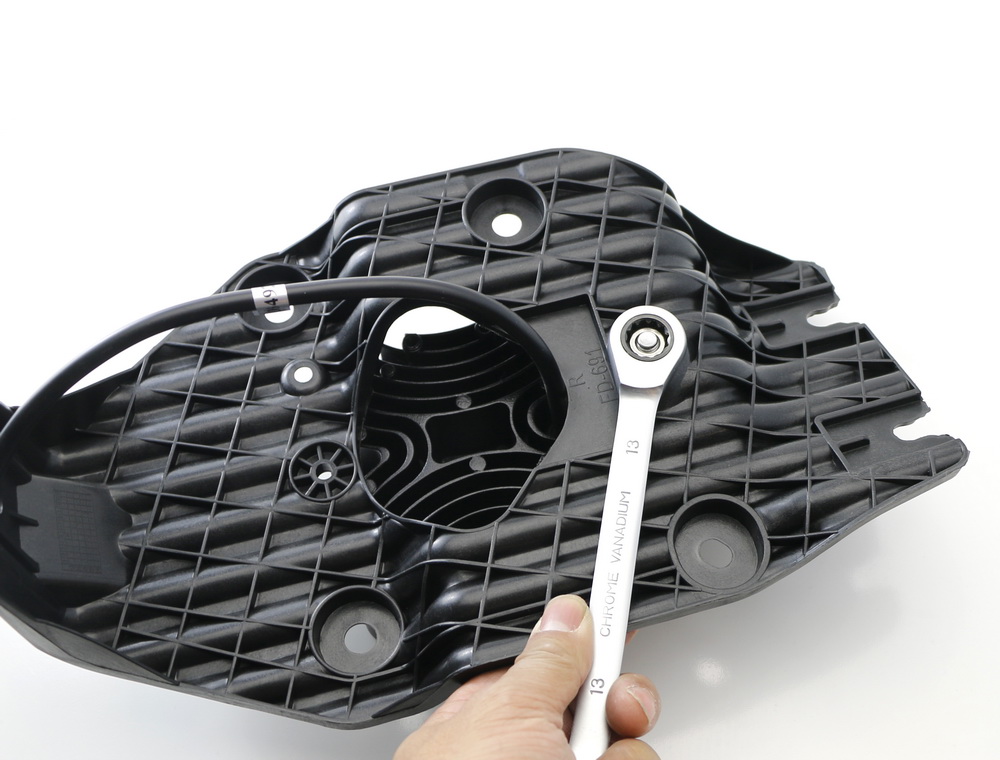

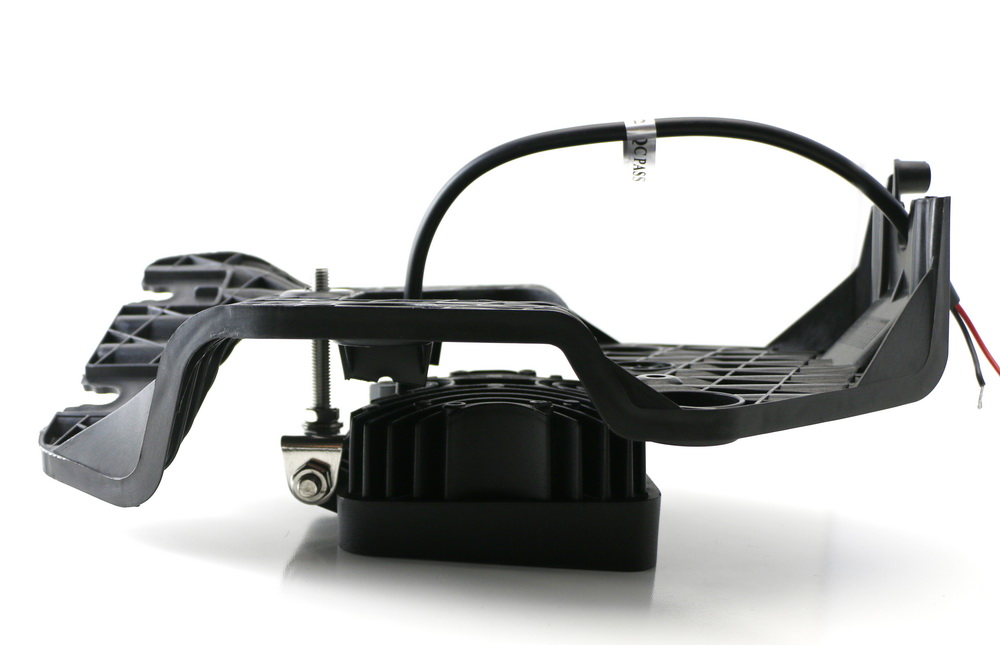

Step 4: Route the wire end through the gap in the chassis and the bolt end though the small hole by the gap.

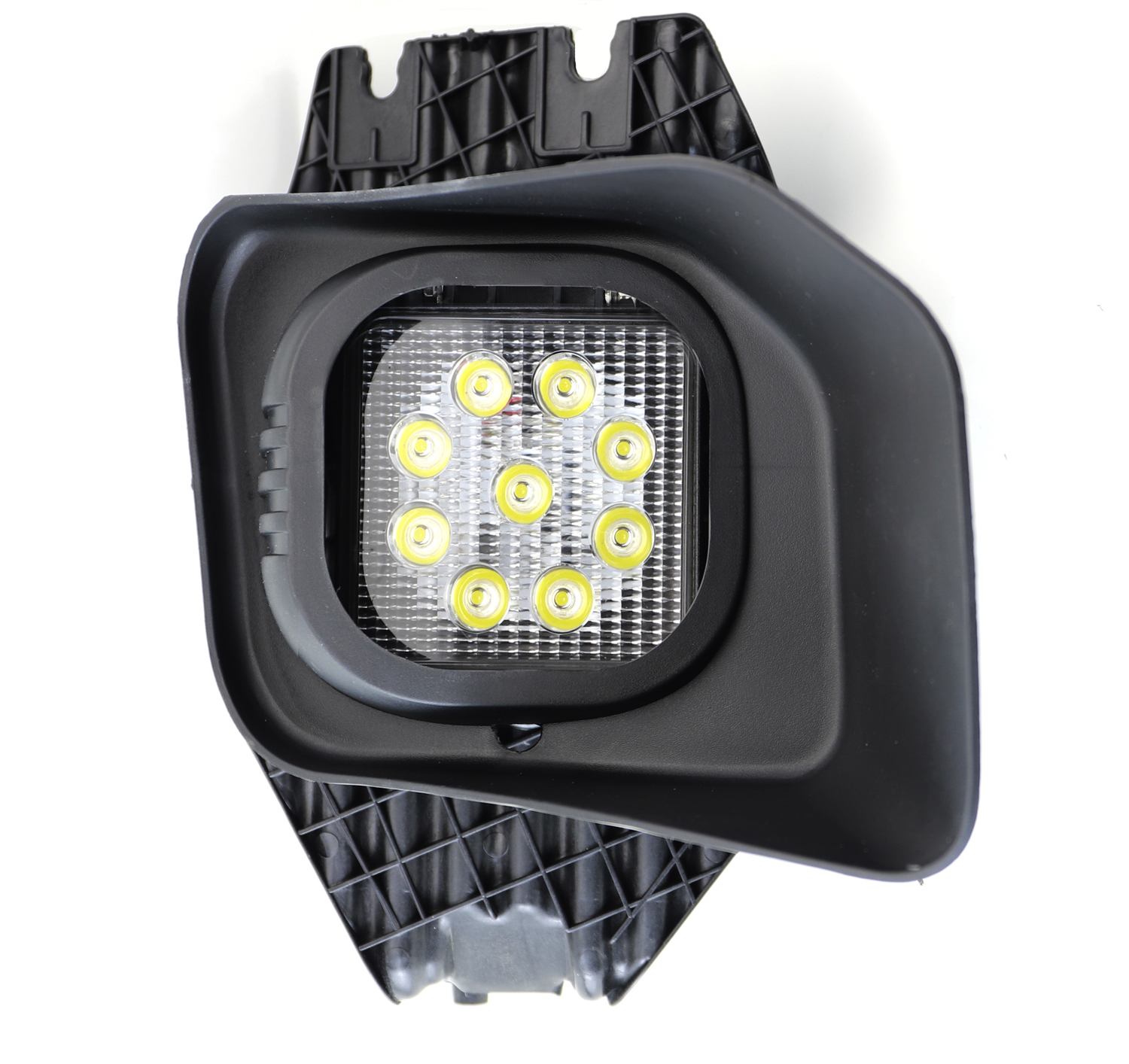

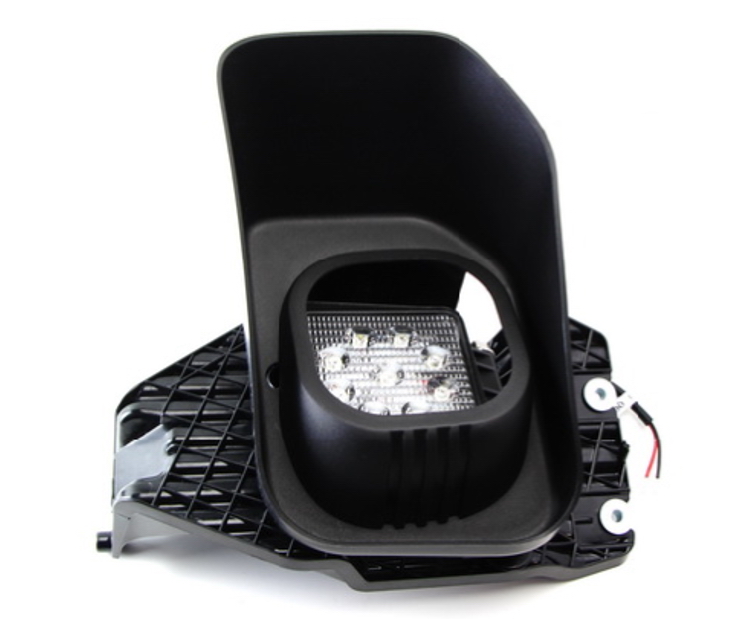

Step 5: Slot the foglamp bezel cover onto the rear-side bezel through the holes. Secure the two bezels with screws.
