2013-2015 Chevrolet Malibu Direct Fit LED DRL Daytime Running Light Installation Guide

You can find these products under Chevrolet Malibu Direct Fit LED Daytime Running Lights (70-711).

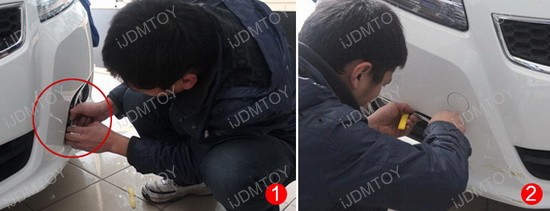

1.) Pop off the factory fog light bezel area using your hands or pliers. You can get a general idea of how to remove this using our General Direct Fit LED Lamps Installation guide here.

2.) Once removed, route the wires from the LED DRL through the hole in the fog light area up to the grill area circled in red.

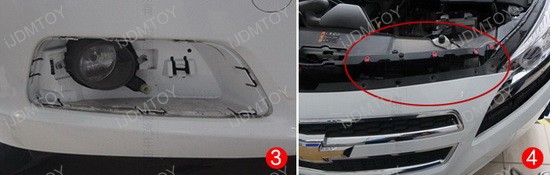

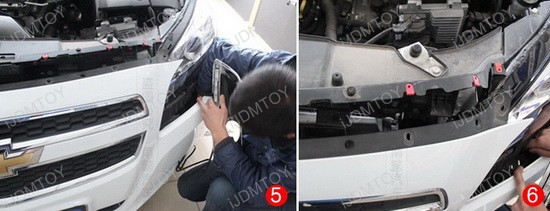

3.) After routing the wiring, pop the new LED DRL assembly back into the factory location.

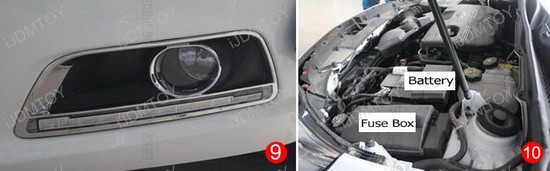

4.) Connect the Positive and Negative wires of the DRL to the battery positive and negative respectively. Connect the ACC + wire to the #52 fuse inside the engine bay (fuse taps which are available at most electronics parts stores would be useful to have).

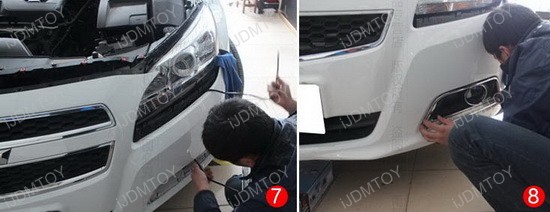

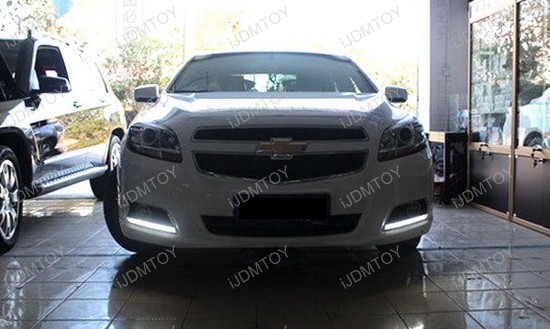

5.) Repeat the same procedure on the other side and enjoy your new Chevrolet Malibu Exact Fit 12-LED DRL lights!
