2013-2016 Scion FRS LED Front Turn Signal Light Installation Guide

You can find this product under JDM Full Front Scion FR-S LED Turn Signal (75-028).

Step 1: Use a pry tool to carefully pop out the stock bezel cover. Remove it and place it to the side.

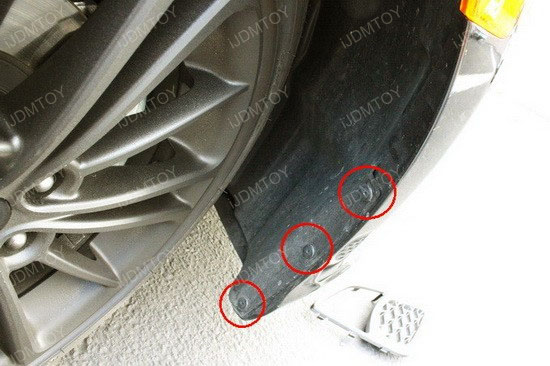

Step 2: There are three bolts at the outer corner of the wheelbase that you will need to remove as well as some bolts behind the stock turn signal lamp in order for the entire assembly to come off.



Step 3: Unplug the stock turn signal bulb from the stock harness.



Step 4: Pigtail and t-tap the wires from the LED lamps back to the stock 7443 sockets as well as the load resistors to prevent the LED lights from hyper flashing. Tap the red/black wires to the ACC 12V and the ground. You can also tap the wires to the stock side marker to enable as parking lights.



Step 5: Replace the new LED lamps and bolts back and test to make sure everything works.
