2015-2018 RAM Rebel Grille Mounted LED Light Bar Installation Guide

This tutorial will show you how to install the grille-mounted RAM Rebel LED light bar (35-980) for the 2015-2018 pickup truck models. Please note that the light bar bracket assembly will not allow you to affix the LED light bar on the RAM 1500, 2500, or 3500 models. It is specifically crafted to set a 20" 120W LED light bar on the front-side grille, utilizing the empty space below the RAM block letters. After installation, your RAM Rebel will achieve a rugged look with a flush fit LED light bar to light the way to where you need to go.

Step 1: Open your RAM's engine hood to gain access to your grille from the back.

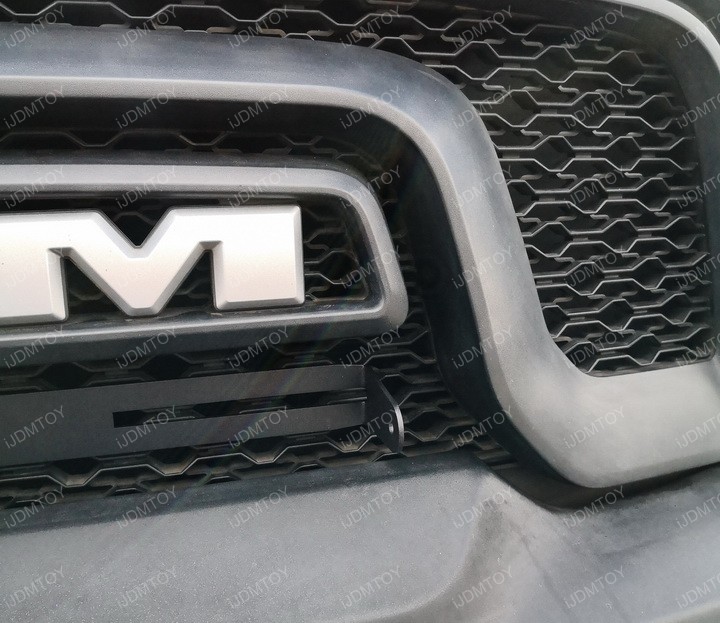

Step 2: Bolt on the light bar mounting bracket under the RAM name badge using the included hardware.

Use the washers to line the nuts so the light bar mounting bracket is adequately secure.

Step 3: Mount the LED light bar in between the mounting holes of the long-form metal mounting bracket.

Step 4: Wire the LED light bar using the included relay wiring harness.

Step 5: Test the LED light bar to make sure it functions properly. Once you have confirmed that it fully lights up, close your hood to finish. You may now enjoy your RAM Rebel's brand new grille mounted LED light bar!

Find this and more offroad truck LED lighting today!
