2015-up Chevy/GMC A-Pillar Mounted 40W CREE LED Pod Light Kit Installation Guide

This is a tutorial that will show you how to install the 40W high power CREE LED pod light kit (70-255b) onto the windshield A-pillar of the 2015 or later Chevrolet Silverado and Colorado, as well as the GMC Sierra and Canyon. This installation is a very straightforward process. And while it's barely noticeable, a section of the plastic shield will stick out a little bit. At this point, you may trim this section so that the cover will sit flush with the mounting bracket. After installation, your Chevy/GMC truck will be well equipped for work in many dark and rural areas.

The pictures in steps 1-3 will show you how to mount the L-shaped metal mounting brackets on the Silverado and the Sierra.

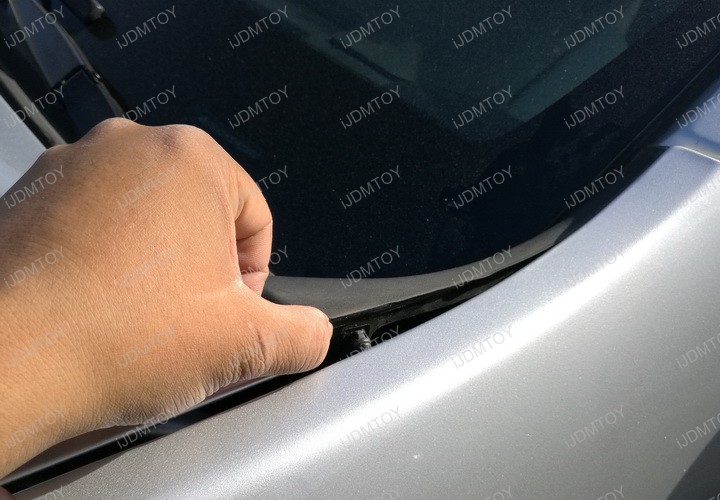

Step 1: Take out the plastic shield above the hinge of the hood.

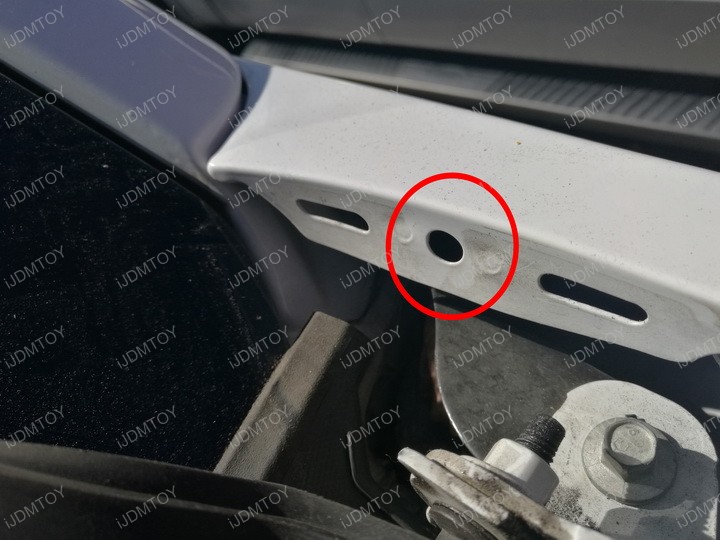

Step 2: Fasten the L-shaped mounting bracket onto the existing hole. Mount the L-bracket as high or as low as you want.




Step 3: Trim the plastic shield so that it closes completely through. This step is optional.

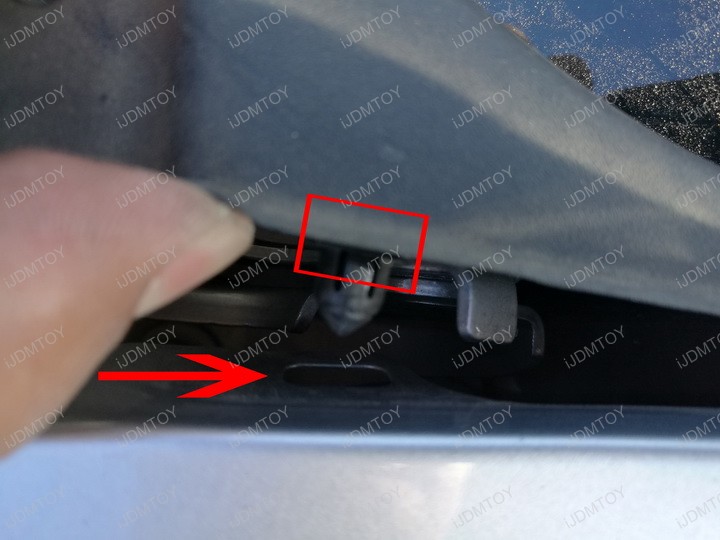

Step 4: For Colorado and Canyon truck drivers, refer to these pictures and apply steps 1-3. Remove the tab on the shield before mounting the L-bracket.




Step 5: Secure the LED pod lights onto the L-shaped brackets. Adjust the direction it's pointing at as you desire.

Step 6: Wire the LED pod lights using the included relay wiring harness with on/off switch. Test them to make sure they light up. Once you've confirmed that they have, you may now enjoy your Chevrolet or GMC's new A-pillar mounted LED pod lights!
