2015-up Volkswagen Mk7 GTI Side Mirror LED Sequential Turn Signal Light Installation Guide

This tutorial will show you how to install the dynamic sequential side mirror LED turn signal lights onto the Volkswagen Mk7 GTI (75-150). This pair of side turn signal lamps is incredibly bright and is a much needed upgrade over your OEM side mirror turn signals. What you'll get aside from superior brightness and a cool smoked look that improves your GTI's aesthetic no matter what its color is.

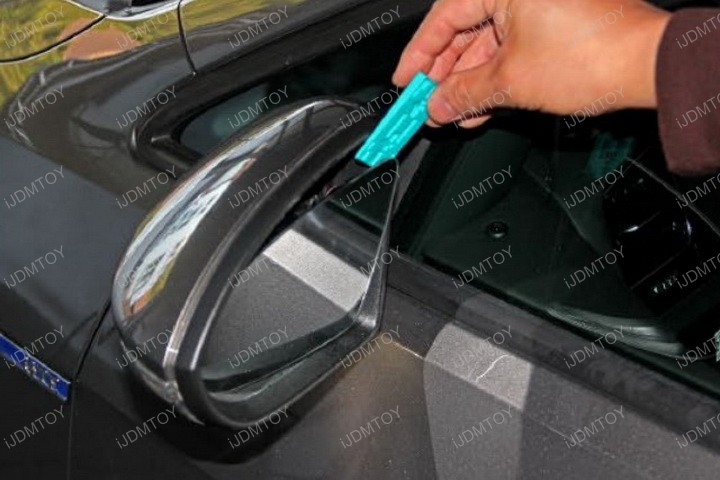

Step 1: Remove your side mirror. Tilt it towards the inner side so that you can carefully pry off the side-view mirror.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

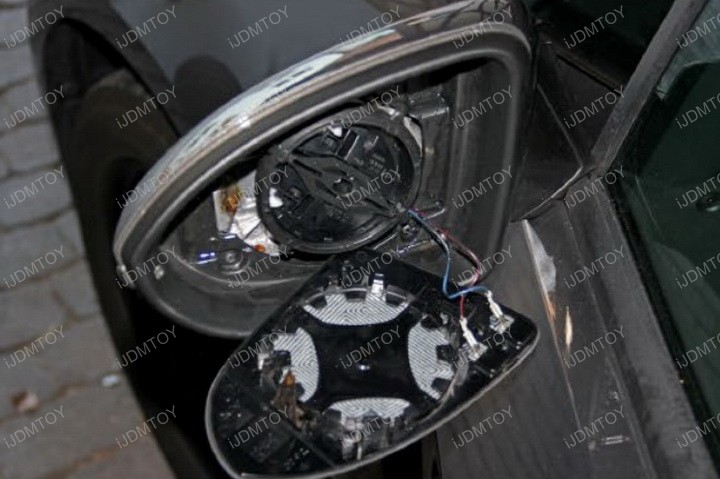

Do NOT pull the mirror off with too much force. The side-view mirror is connected to wiring that powers the tilting mechanism.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

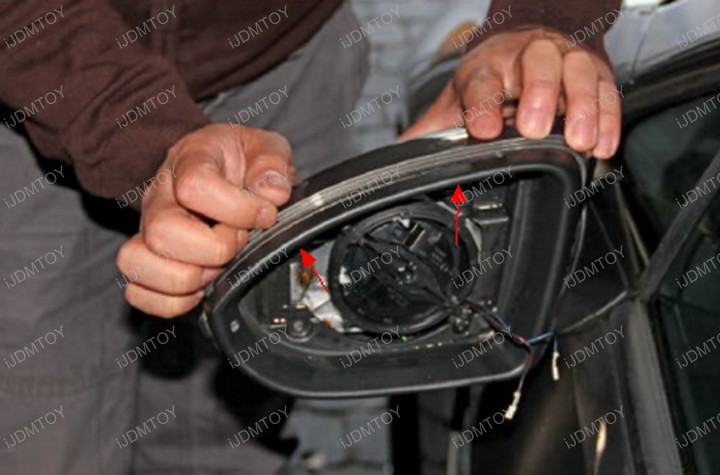

Step 2: Pop off the tabs indicated by the red arrows to release and remove the front cover.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

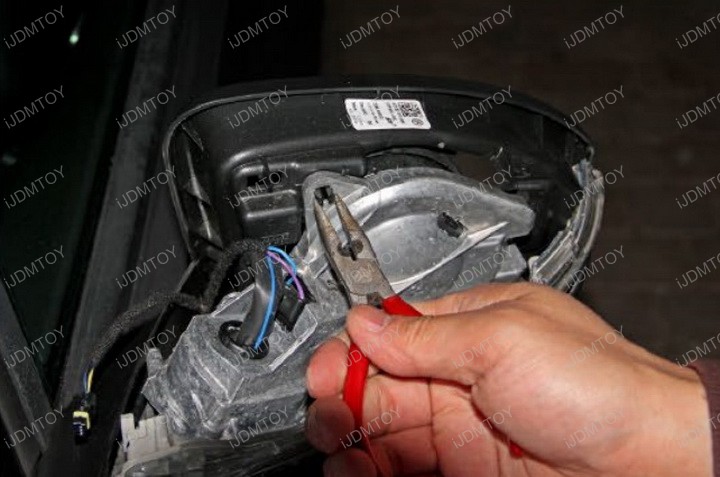

Step 3: Use needle-nose pliers to loosen the steel piece and give yourself more wiggle room.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

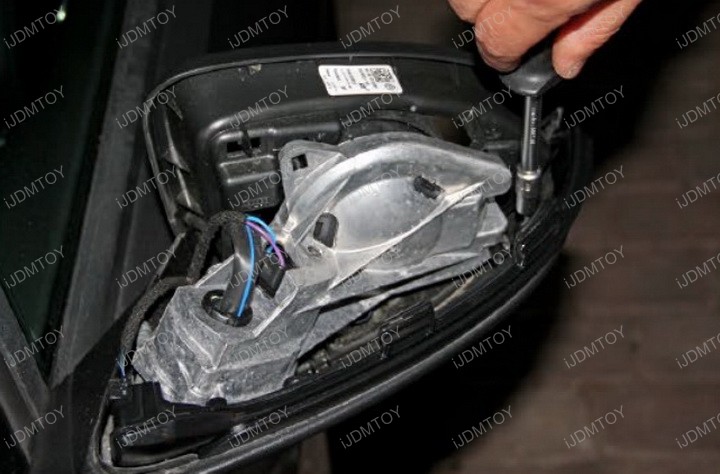

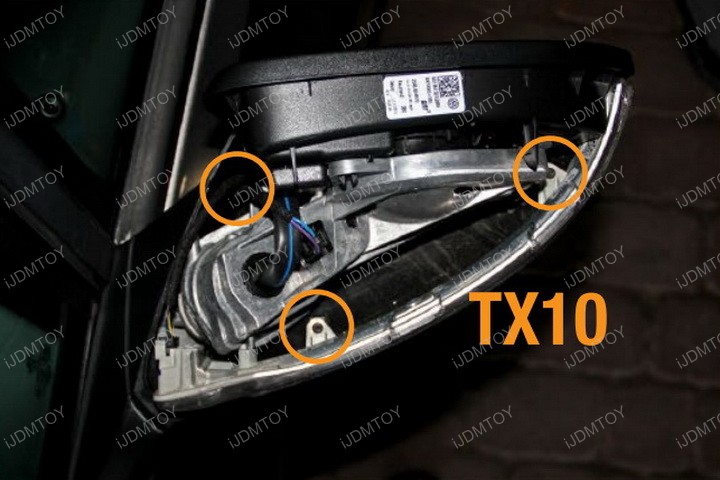

Step 4: Remove the T10 screws securing the stock turn signal lights. Unplug and remove the OEM side mirror turn signal lights.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

Step 5: Plug in the new dynamic sequential side mirror LED turn signal lights. Test the LED turn signal sequential lamps before reassembling your side-view mirror.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

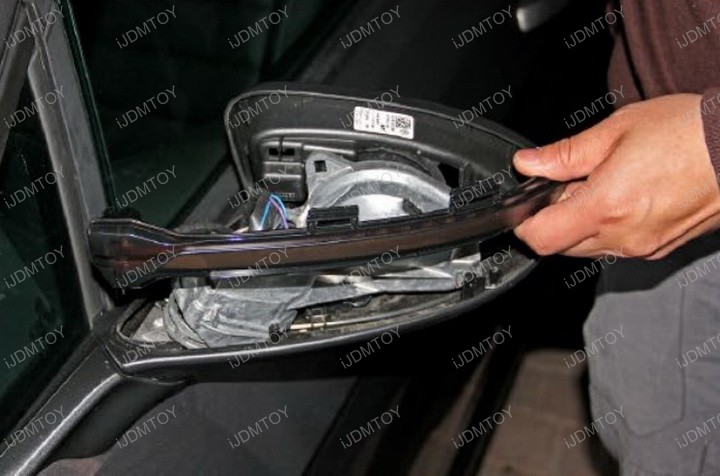

Step 6: Slide in the sequential LED turn signal lights and reapply the bolts to secure it. Repeat steps 1-5 for the other side.

Install Dynamic Sequential Side Mirror LED Turn Signal Light Lamp for VW MK7 GTI

Step 7: Snap the steel piece on either side, side mirror covers, and the side-view mirrors back in. You may now enjoy your Volkswagen MK7 GTI's brand new set of LED dynamic sequential side mirror turn signal lights!

You may refer to this video for a visual guide on how to install the dynamic sequential side mirror LED turn signal lights:
