2018-up Jeep Wrangler JL Install Hood Hinge Mount LED Light Bar Kit

This tutorial will show you how to install the hood hinge mounted dual LED light bar kit (70-287) on the 2018-up Jeep Wrangler JL. Your LED light bar kit will include (2) single-row 30W CREE LED light bars, a pair of cradle shaped metal support brackets, and a relay wiring harness with an on/off switch. This set of CREE LED light bars is the perfect addition to your Wrangler if you want to make use of your hood top but don't want a long light bar. After you finish the installation, your Jeep Wrangler will gain a more aggressive off-road look along with a strong source of light.

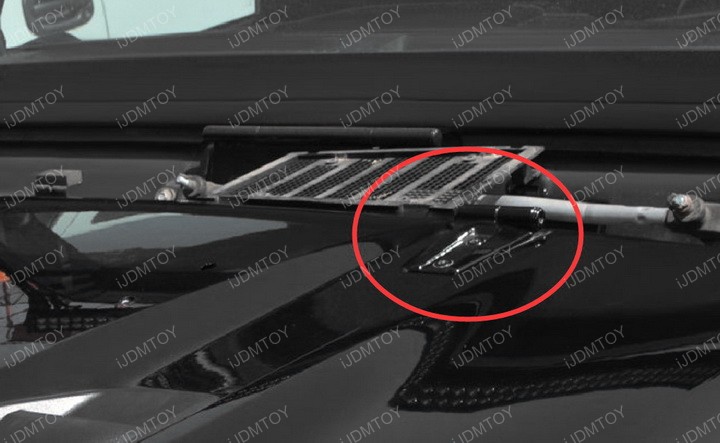

Step 1: Take out the screws on your Jeep's hood hinges.



Step 2: Bolt on the cradle mounting brackets.



Step 3: Mount the pair of mini LED light bars in between the two support brackets.


Step 4: Wire the 30W LED lightbars using the included relay wiring harness.

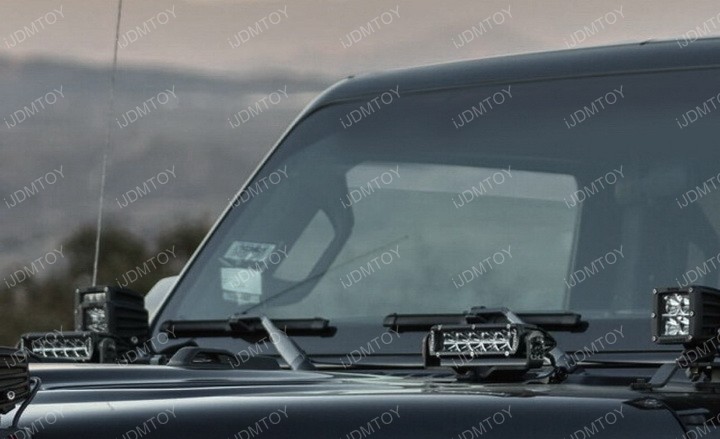

Step 5: Test the two single-row LED light bars to make sure both fully light up. Once you have, you may now enjoy your Jeep Wrangler's new source of high output light best used for any outdoor occasion!
