BMW H8 LED Angel Eye Ring Marker Light Installation Guide

You can find this H8 BMW Angel Eyes here

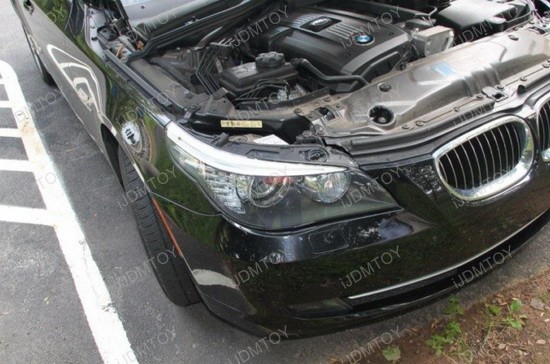

1) Open your hood and locate the stock H8 angel eye housing on top of the headlight.



2) There is a cap on the top of the headlight, near the back; remove that by twisting it off.



3) Once you have the cap removed, you should see the stock H8 angel eye bulb. Disconnect the harness and remove this halogen bulb by twisting it off. Replace with our BMW Angel Eyes H8 LED bulb and follow the steps in reverse order to put everything back.

Installation Notes:

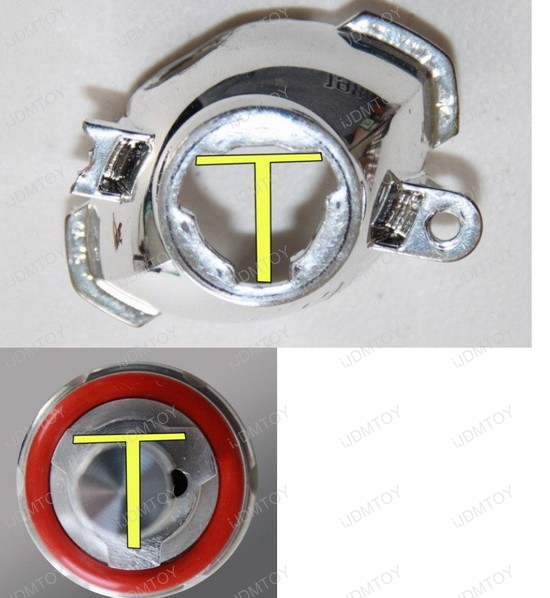

When installing the H8 bulb, there are three (3) tabs that need to be lined up in order for the H8 bulb to twist-lock into the housing. The three (3) tabs form a shape of a "T" and it will be easier for you to install if you were to mark the bottom of the bulb to indicate which direction is "TOP".

How to make the outer ring brighter?

Picture of the stock housing:

NOTES: Please keep in mind that this installation guide is meant to be used as assistance in installing these lights onto your vehicle. iJDMTOY is not responsible for any damages caused by improper installation or misuse of this guide
