Chevrolet Camaro Knight Rider Style LED Scanner Light Kit Installation Guide

You can find this product under LED Scanner Knight Rider Kit

This installation guide is for Chevrolet Camaro and it might also apply for other vehicles

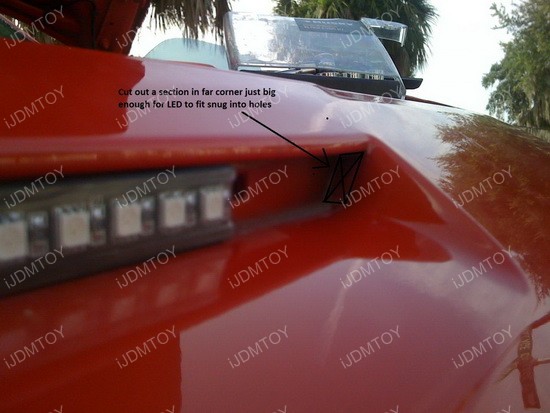

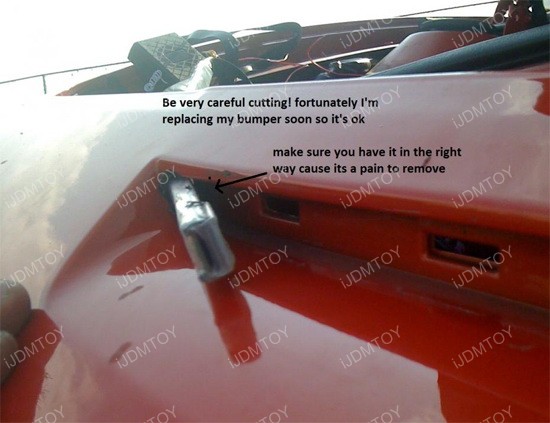

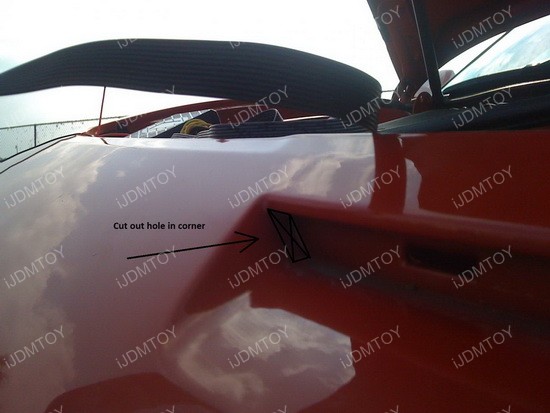

1) Cut out a small section in far corner just big enough for the LED scanner bar to insert thru (both left and right hand sides)

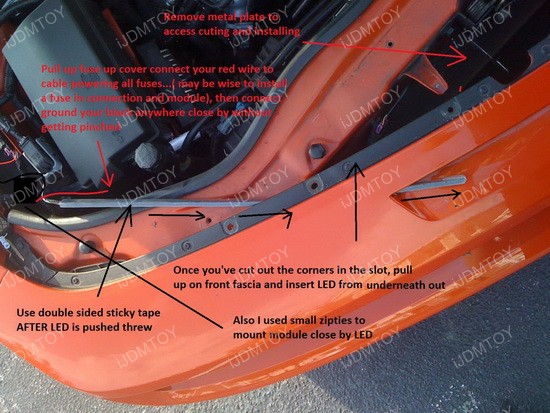

2) Insert thru the LED scanner bar from the passenger side

3) Secure the LED Scanner Bar

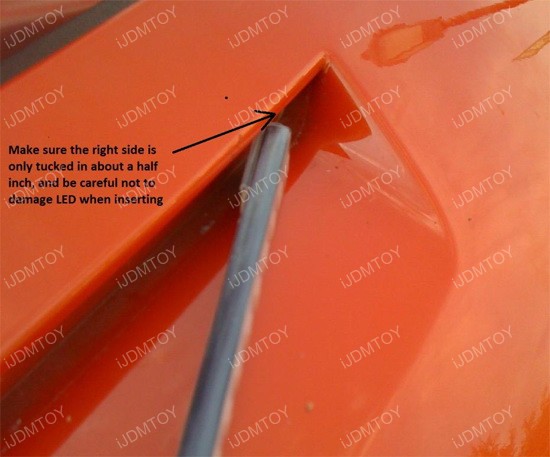

4) For the LED Scanner Bar ending wire, make sure do not bend it

5) Connect the LED scanner bar to the control module

6) Hide the LED scanner bar control module near the battery so it will keep completely dry

7) Connect only the RED and BLACK wires to battery positive and negative and leave other three wires absent

8) Enjoy the LED scanner lights

================

Wiring configuration
