Ford Raptor Behind The Grille Flush Mount LED Pod Light Kit Installation Guide

This is a tutorial that will show you how to install the behind-the-grille 48W flush mount LED pod lights (70-280). While this installation is based on the 2017 Ford F-250 Raptor, this set of 6-LED flush mount pod lights are able to be fitted behind many lower bumper grille inserts and upper front grilles such as the Toyota 4Runner, FJ Cruiser, Ford Raptor, and the 2018-up F-150. The flush mount LED pod lights are fairly lightweight, they will ideally secure themselves tightly if your grille mesh is strong enough. This installation guide will demonstrate the mounting on the Ford Raptor lower bumper grille insert.

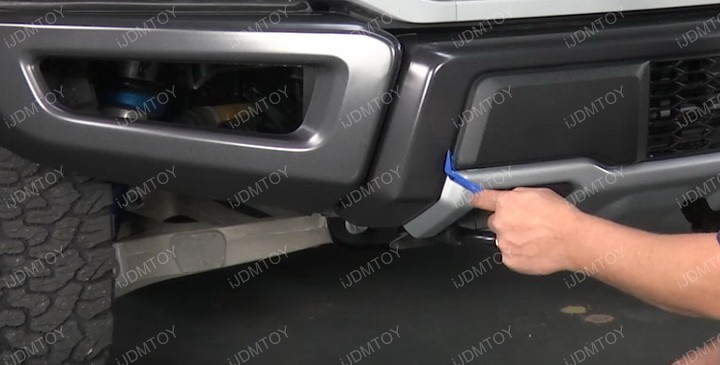

Step 1: Carefully remove the lower bumper grille mesh. We highly recommend performing this step because it will simplify the process. While this step is optional, keeping your grille mesh on will limit the amount of hand space you have to work with.

Step 2: Place one metal mounting plate on the front-side grille and thread two hex bolts through the mounting holes.

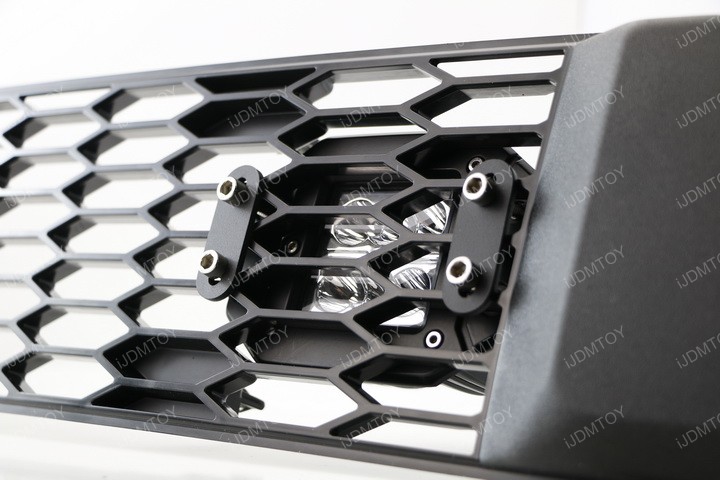

Step 3: From behind, place the flush mount 6-LED pod light through the podlamp mounting holes. Fully secure it with nuts. Fasten the other mounting plate and hardware set on the other side of the LED pod light.

Repeat steps 2 and 3 on the other side.

Step 4: Place your lower bumper grille insert back on.

Step 5: Wire the dual flush mount LED pod lamps using the included relay wiring harness with toggle power switch.

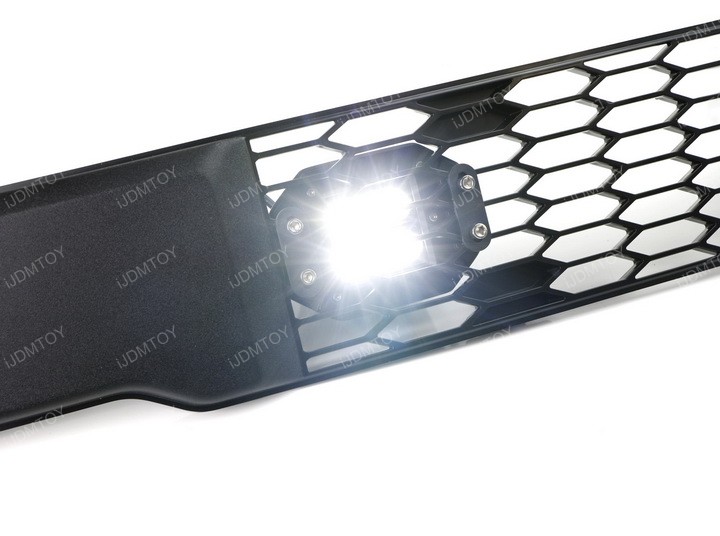

Step 6: Test the two LED pod lights to make sure each of them fully lights up. Once you've confirmed full functionality, you may now enjoy the powerful white lighting output of the dual flush mount grille LED pod lights!
