HID Conversion Kit Installation Guide

Step 1: First of all, let's take a look at this diagram below so you will get a clear idea on how to hook up all the parts.

How to install HID Conversion Kit

Step 2: Open the hood, locate the back of the headlight to see whether you can remove the bulbs directly. If not, you might have to remove the headlight housing in order to perform the installation.

How to install HID Conversion Kit

Step 3: Remove the stock socket.

How to install HID Conversion Kit

How to install HID Conversion Kit

Step 4: Remove the stock headlight bulb and remember do not touch the bulb glass with your finger.

How to install HID Conversion Kit

How to install HID Conversion Kit

Step 5: Alright! Now take off the HID bulb from its plastic shell. Again, do not touch the HID bulb glass with your finger, but id you did, you can use rubbing alcohol to clean it :)

How to install HID Conversion Kit

How to install HID Conversion Kit

Step 6: Put the HID bulb back to the headlight housing

How to install HID Conversion Kit

How to install HID Conversion Kit

Step 7: Connect the HID bulb with the ballast

How to install HID Conversion Kit

How to install HID Conversion Kit

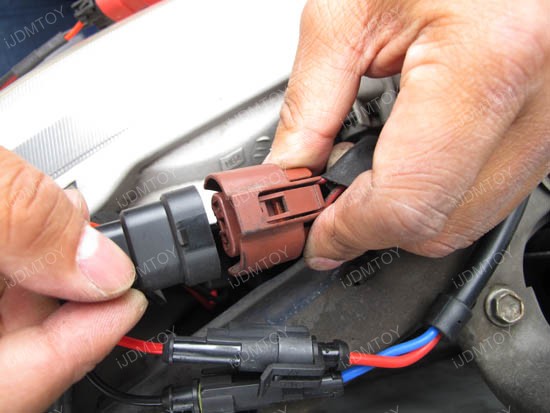

Step 8: Connect the HID ballast back to the stock socket

How to install HID Conversion Kit

How to install HID Conversion Kit

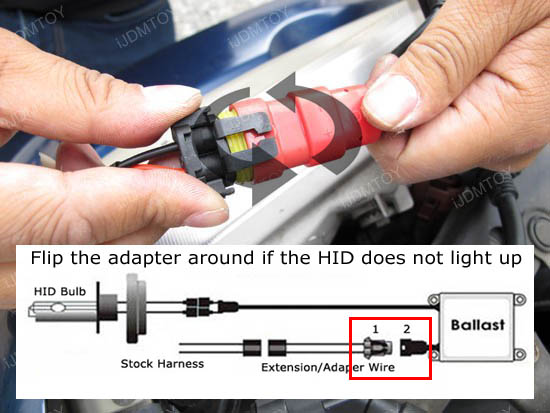

Step 9: Let's test the HID light first to make sure it lights up. If not, please turn the extension/adapter wire 180 degrees. (1) and (2) in the diagram

How to install HID Conversion Kit

How to install HID Conversion Kit

Step 10: Mount the HID ballast using zip-tie or double-sided tape

How to install HID Conversion Kit

Enjoy your new HID headlights!

How to install HID Conversion Kit

Other information

You can find this product under HID Conversion Kit (HID-CONVERSION-KIT).

HID Conversion Kit Troubleshooting
