How to Assemble the Ford F-250 F-350 Hybrid LED Fog Light Kit

Check out the Ford F-250 F-350 Hybrid LED Fog Lights

NOTE: Since this LED fog light is extremely large, bezels will not be needed for installation and are not included.

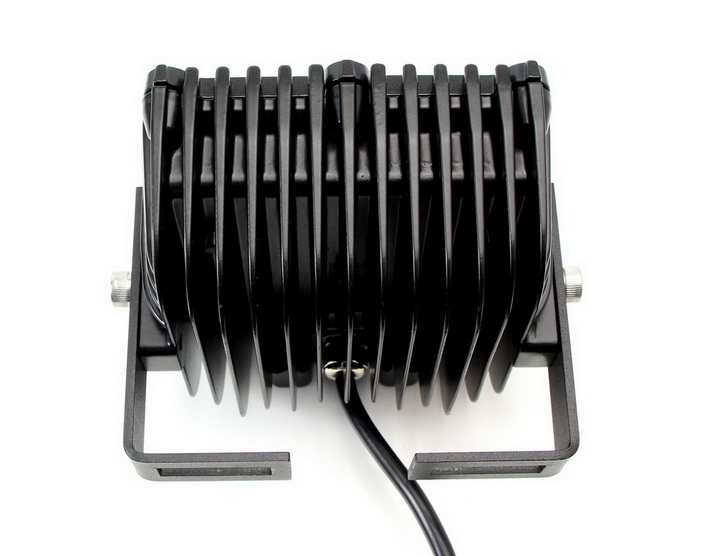

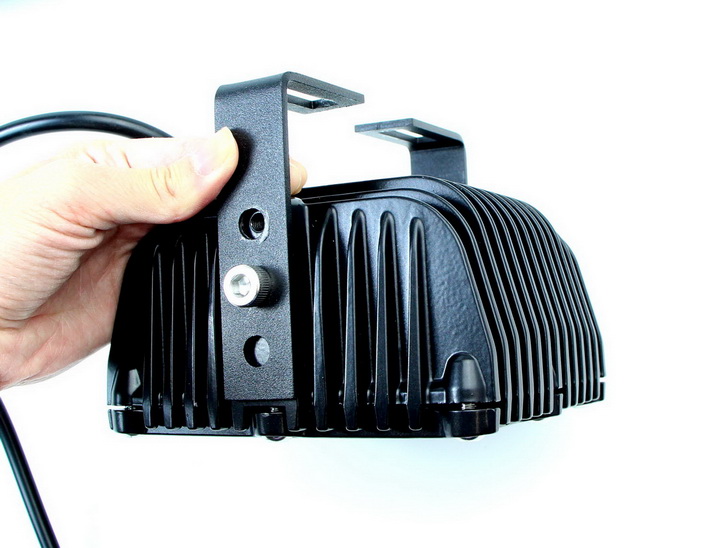

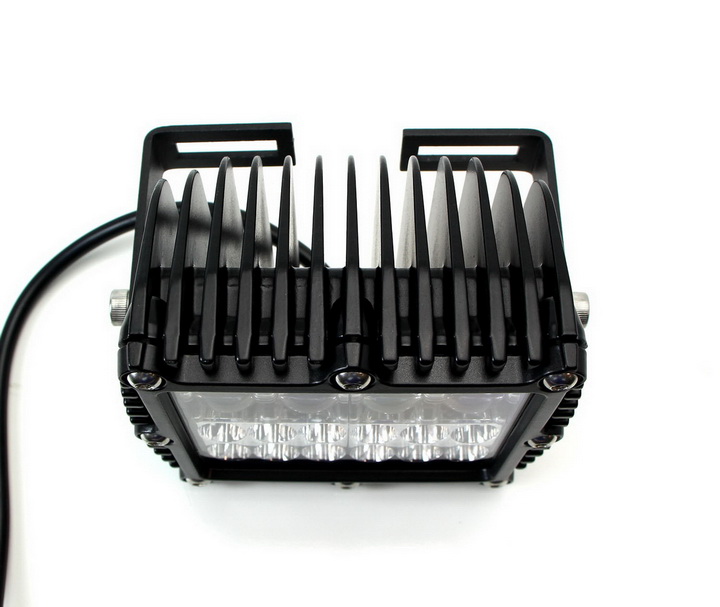

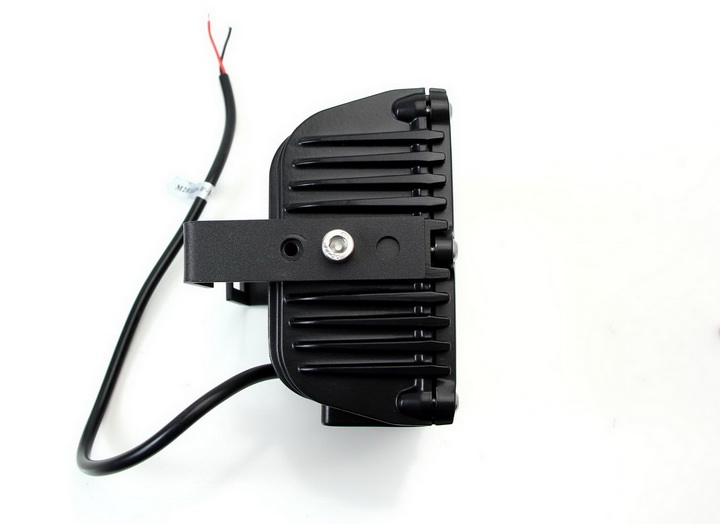

Step 1: Install the L-shaped brackets by securing one on each side of the LED fog light.

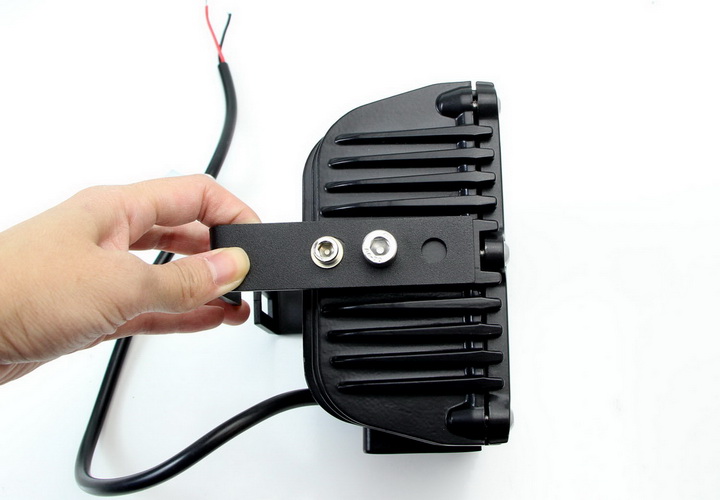

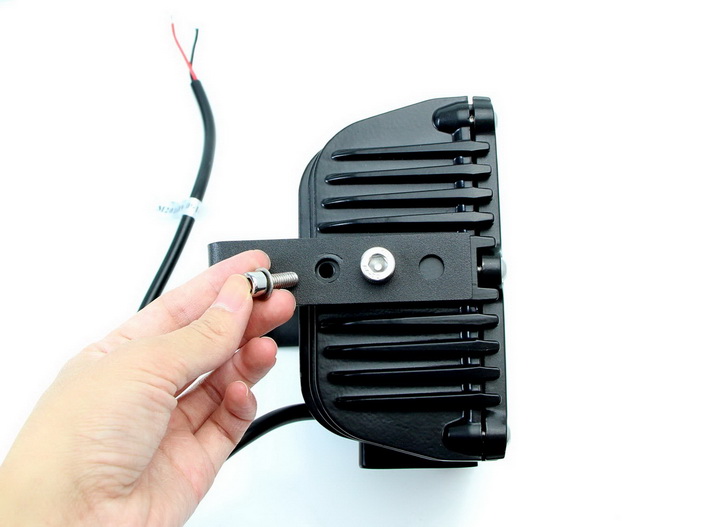

Take a screw and bolt to secure the middle hole on the bracket to the LED fog light. You can reinforce the bracket with an additional screw and washer in the extra adjacent hole.

Tighten to secure.

Step 2:
Take the back support bracket. Insert the LED fog light wire through the opening and let the wire sit at the bottom of the opening.

Step 3: Now we are going to secure the metal mounting brackets onto the back support bracket.

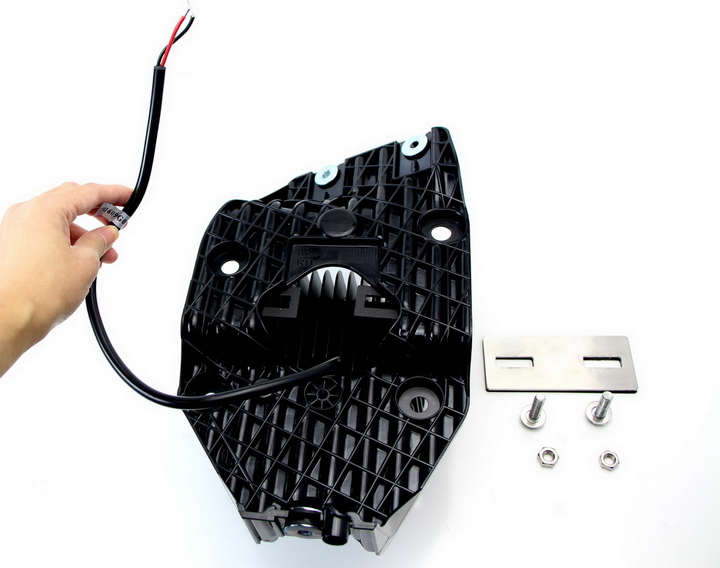

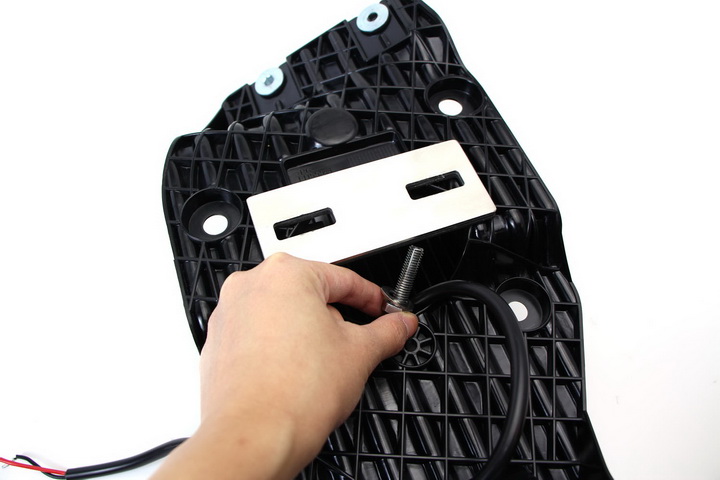

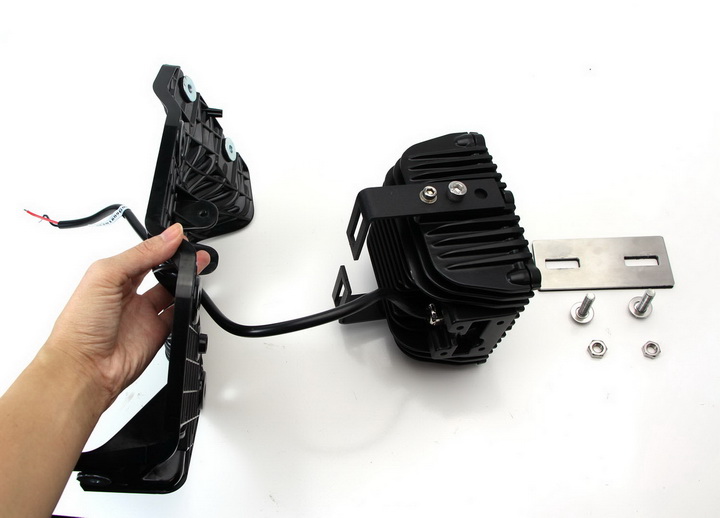

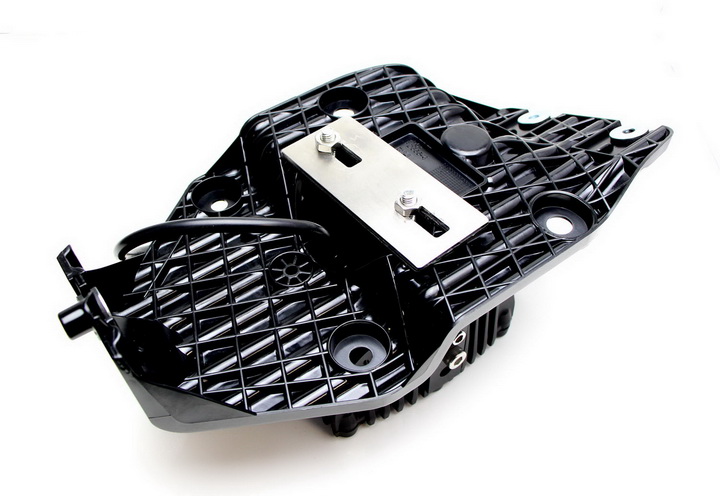

Turn the components around so you are looking at the back part. Take the long screw and washer. Insert the screw and washer from underneath and up through the metal mounting bracket. Now take the flat metal plate and use it to sandwich the back support bracket in the middle of the metal mounting bracket and the flat metal place.

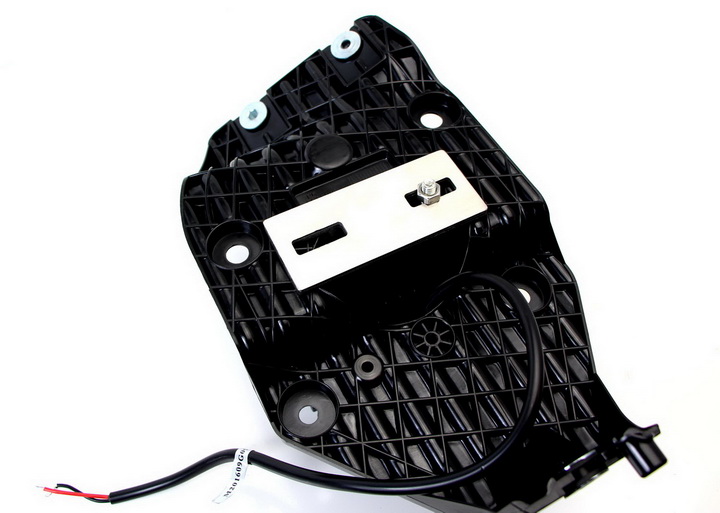

Take a nut and thread it into the screw from the top, but don't tighten all the way. You will need some wiggle room when you secure the other side of the flat metal plate.

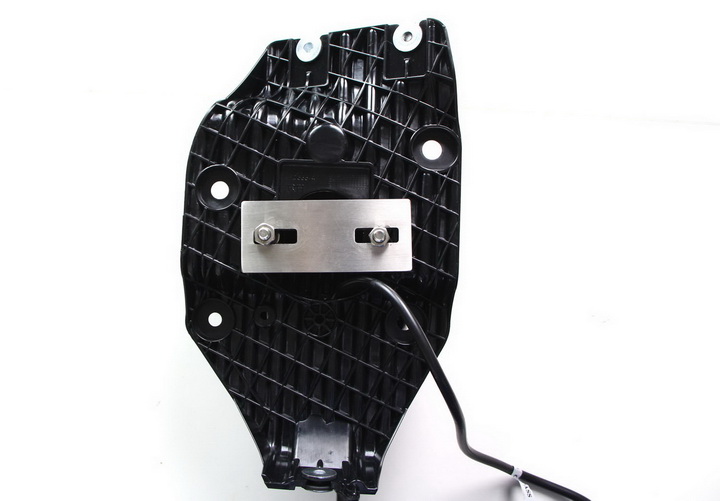

Step 4: Repeat the same process on the other side of the flat metal plate. Before you secure the metal plate along with the metal mounting bracket, you can take the time to adjust the angling of the LED fog light. When you are satisfied, you can further tighten the bolts from behind the flat metal plate to secure all the components together.

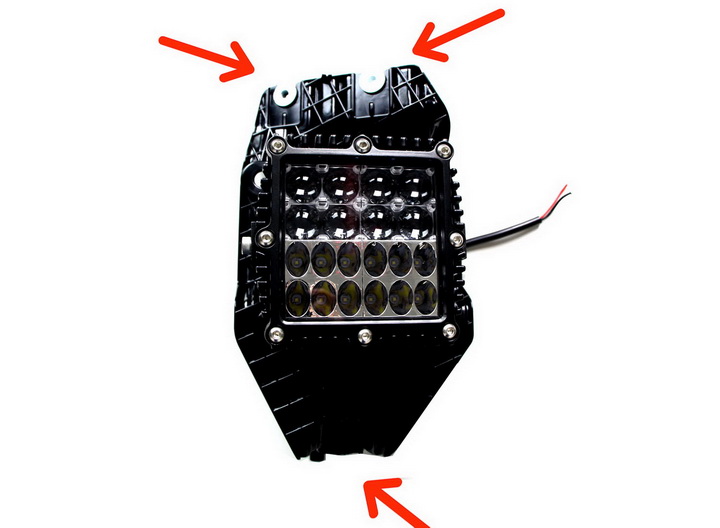

Step 5: Mount the completed LED fog light kit back to the truck via the existing holes at the top of the back support bracket and the singular hole at the bottom.
