LED Back Lit Push Start Ignition Button Installation Guide

You can find this product under LED Background Light Engine Push Start (35-223).

1.) Stop the car and shut off the engine.
2.) Fix the "Push Button" to appropriate position.
3.) Pass the wire through the partition board and press the starting switch against the partition board. Attach the rubber ring and tighten the nut.
4.) Connect the push button connector to the relay box.
5.) The black wire should be connected to the metal bodywork of the car or the battery negative.
6.) The blue wire should be connected to terminal 15(ign) behind the ignition switch, another one connecting the terminal 50 behind the ignition switch.
7.) The red wire should be connected to the terminal 15. (The power path that passes through ign)
8.) Fix the Relay Box using the double side tap and screws.

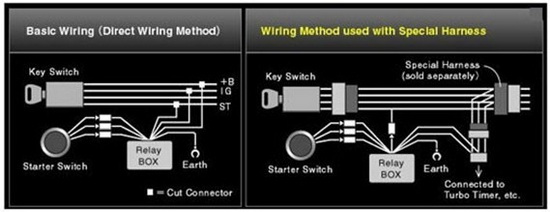

Wiring Methods:
