License Plate Light 168 194 LED Bulb Installation Guide

You can find this product under LED License Plate Lights

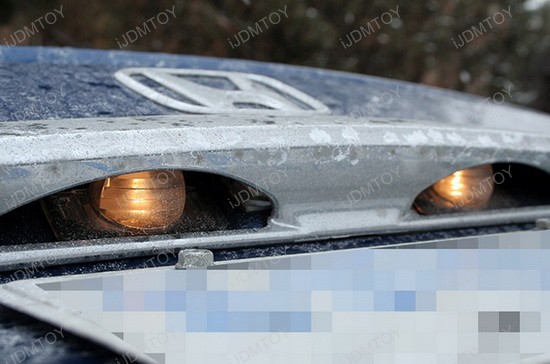

And we finally move on to the license plate bulbs. Stock bulbs shown.

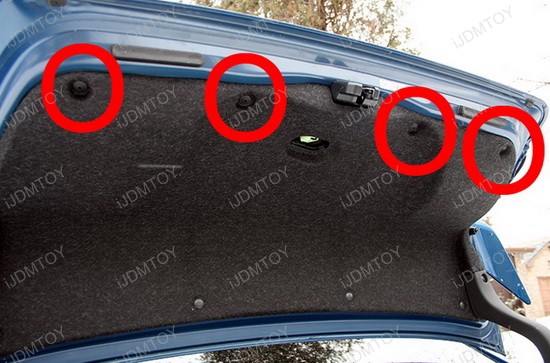

This part requires the partial removal of the trunk liner, I circled the four clips that have to be removed to access the license plate bulbs.

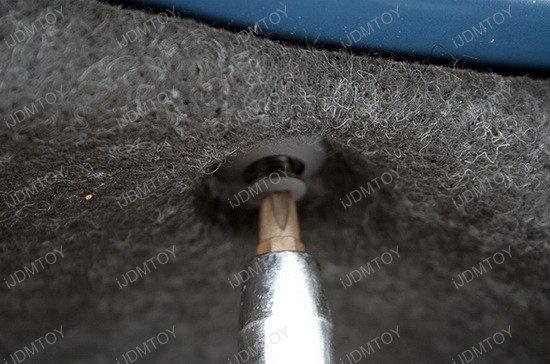

The clips simply unscrew and come off.

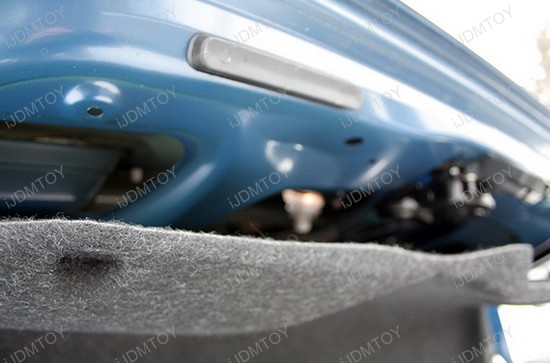

The liner hangs down and now gives us access to the bulbs.

Press the tabs together to remove the socket.

Stock T10 license plate bulb is shown.

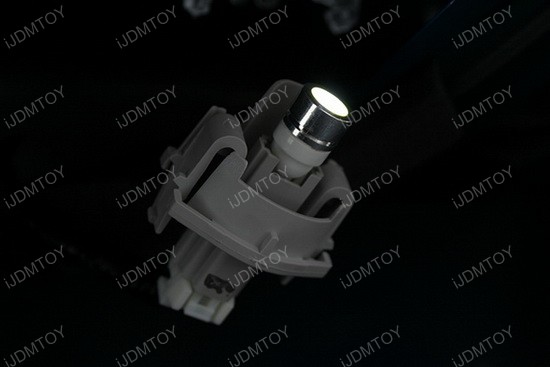

Replaced with a high powered T10 LED license plate light bulb.

Socket pops back in, here's a comparison of the stock vs. LED bulbs.

And Here's both lights done.

Special thanks to K20Z3 from civicforums dot com for providing us these pictures and instructions on the install guide.
