Mercedes-Benz C300 W204 LED Back Up Reverse Light Bulb Installation Guide

You can find this product under LED Backup Reverse Lights (20-311).

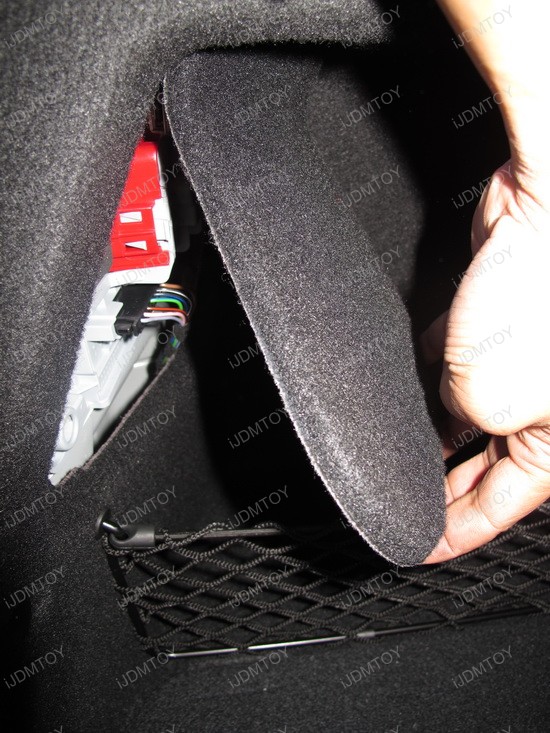

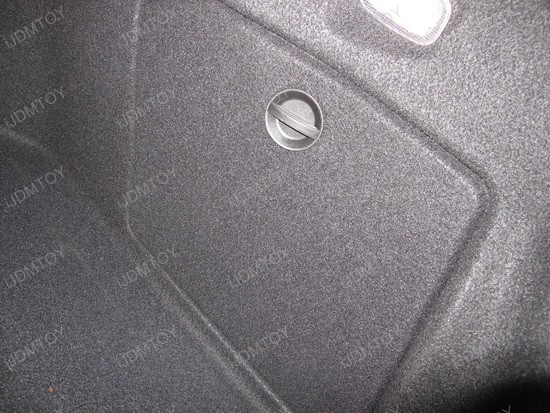

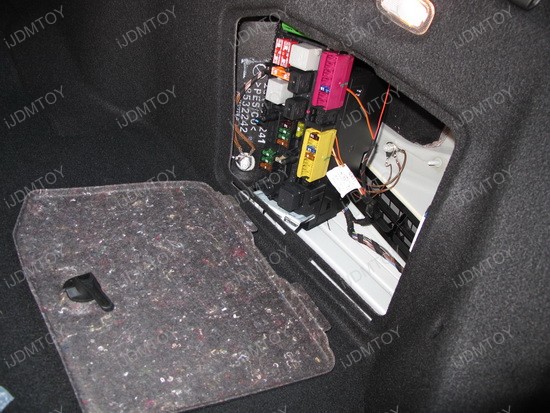

1.) Open the trunk, locate the carpeted panel near the tail lights, and remove it.

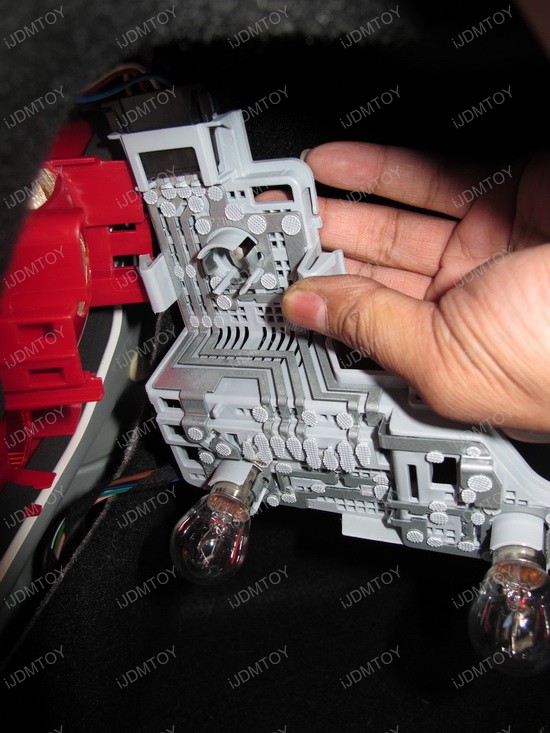

2.) The tail lights bulb assembly should be held into the tail light with plastic clips, gently depress the clips and remove the gray assembly. Remove the top bulb (the reverse light).

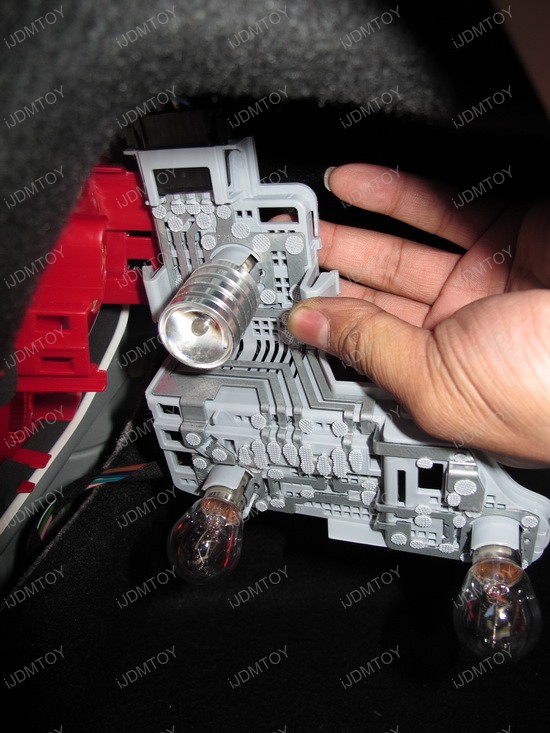

3.) Install our LED bulb and follow the same steps to replace the other side as well.

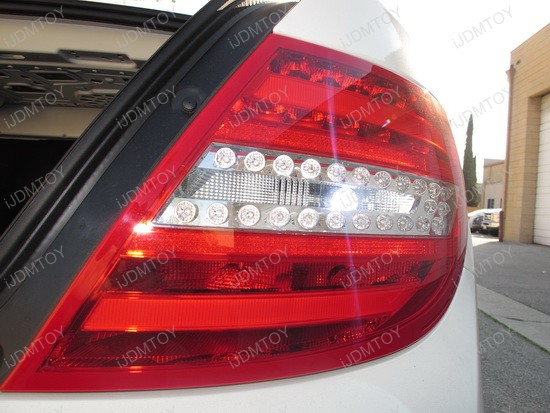

4.) Once you have successfully installed both sides, install all the components back into their proper locations and start the vehicle. Have somebody inside the vehicle and put the vehicle into reverse so you are able to check the lights. Once confirmed they are working, turn off your vehicle, and enjoy your new LED backup reverse lights!
