Mercedes Benz VIP Brabus Style LED Puddle Light Installation Guide

You can find this product under VIP Brabus Style LED Puddle Lights (50-068).

This is a simply illustration for how to install the VIP Brabus style LED puddle lights. We recommend professional installation for this product.

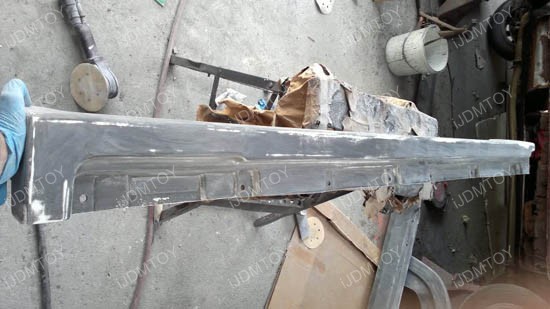

1) Remove the side skirt if you can (this will make the installation much easier)

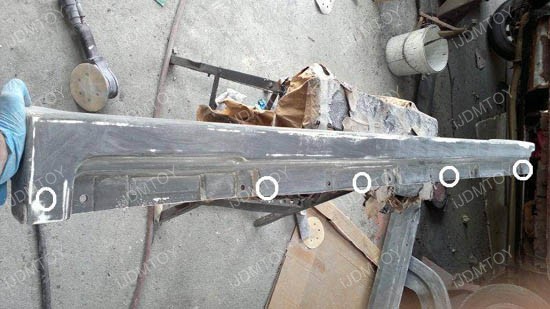

2) Draw circles on the side skirt for where to mount the LED puddle lamps. Make sure to place the LED puddle lamps a little bit inside so they won't be spotted.
a) Use the double-sided tape comes with the LED puddle light kit to first stick the LED lamps to the desired locations
b) Then use the screws comes with the package to mount the LED puddle lamps

3) After you have done with both driver side and passenger sides, you can tap the wires to either the side mirror puddle lights (if there is) or interior dome lights, so when you unlock the car, the LED puddle lights will turn on. You can also tap the wires to the parking lights (side marker lights) so the LED puddle lights can turn on when the headlight is on)
