Scion FR-S, Toyota 86, Subaru BRZ Valenti Style Rear LED Backup Brake Light Installation Guide

You can find this product under 2013-up Scion FR-S Subaru BRZ Valenti Style LED Reverse Light Kit (75-027).

This guide is meant to illustrate how to install the V-shape rear LED backup light for either a 2013+ Subaru FR-S or Subaru BR-Z. Installation is very straightforward and is not considered difficult.

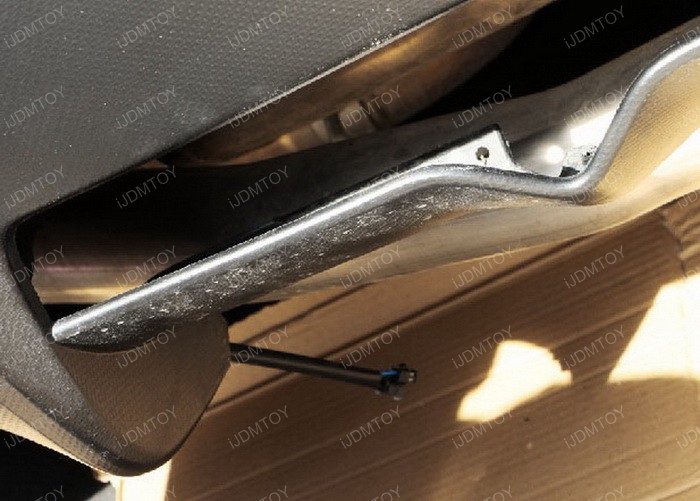

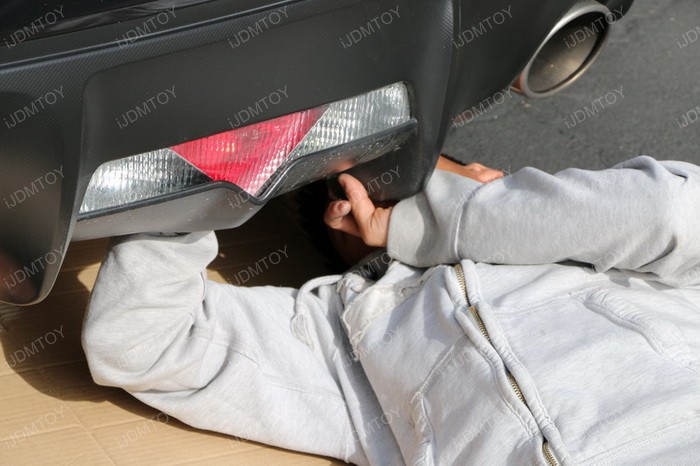

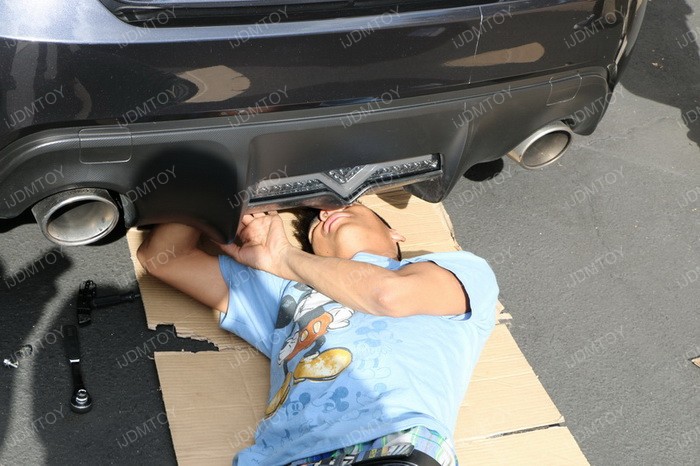

Step 1) You would have to reach the bottom of the stock reverse lamp to unfasten the clips and clamps by the reverse light before you can take apart the lamp. There are 2 screws and a couple clips that need to be taken out before you take off the lamp.

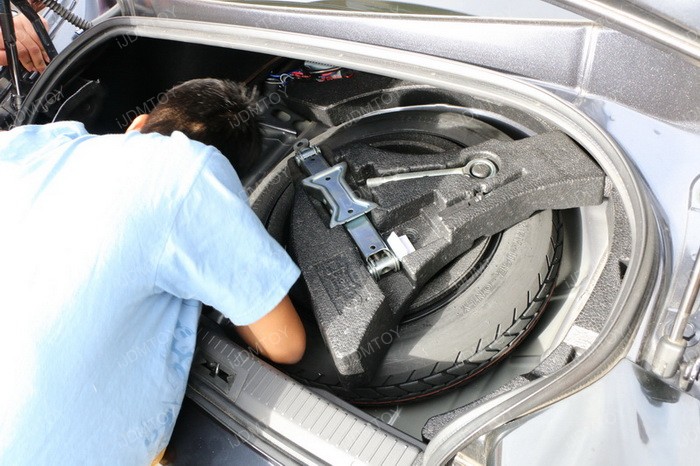

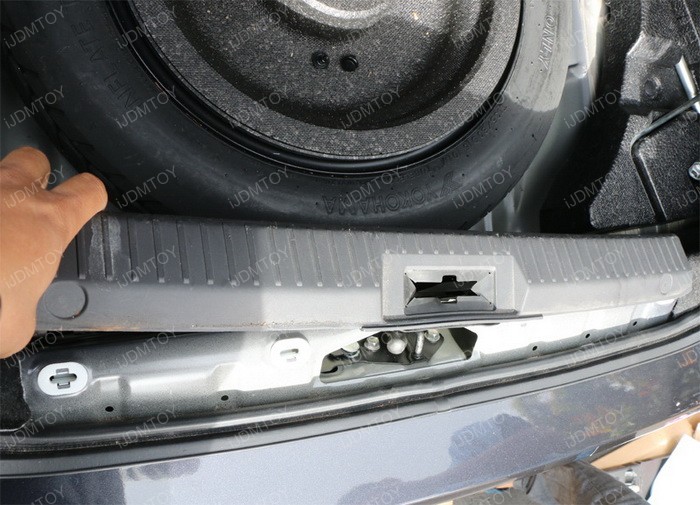

Step 2) Remove the trunk liner so that you can see the wire adapter for the factory stock reverse light in order to swap it out and replace it with the Valenti -Style Rear LED Backup Light.

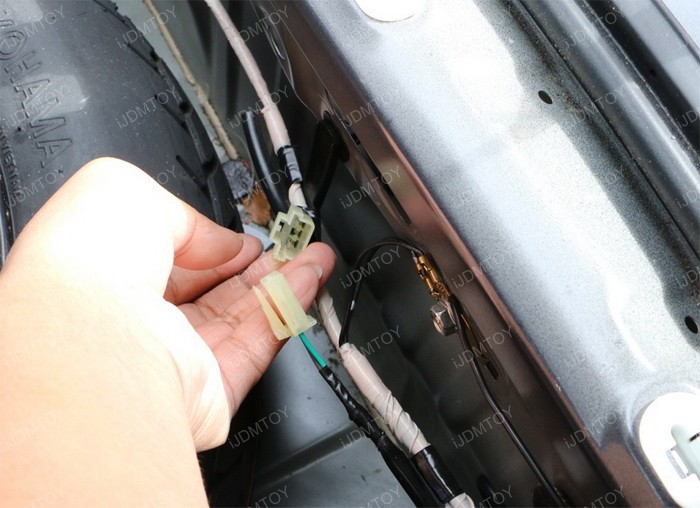

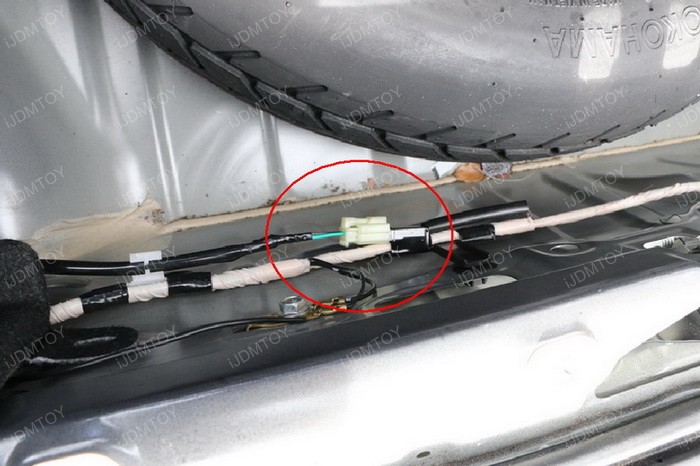

Step 3) Unplug the adapter in the red circle.

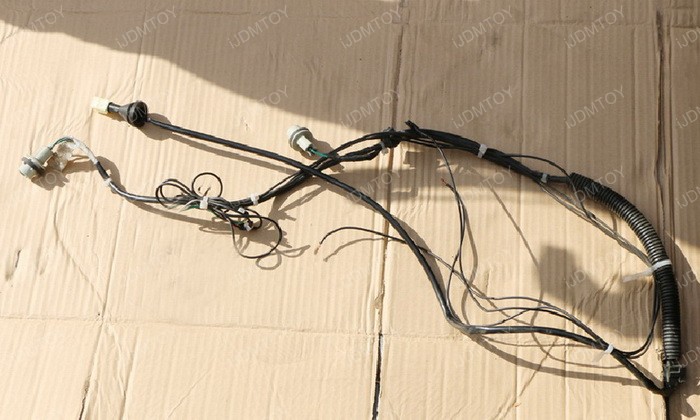

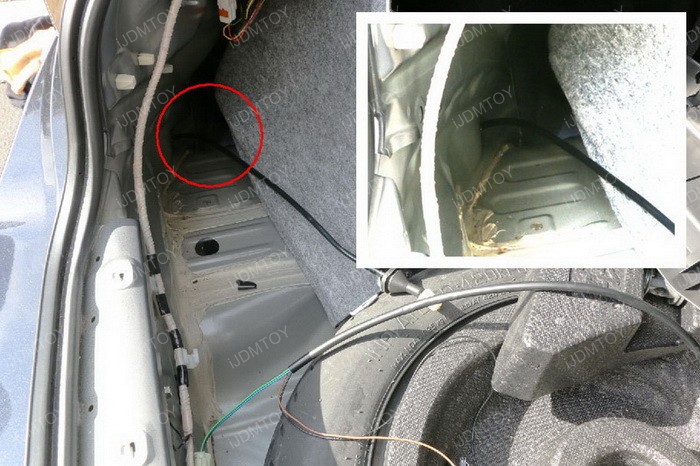

Step 4) Remove the entire reverse lamp harness from the driver’s side trunk through the firewall, which is the opening for the wiring.

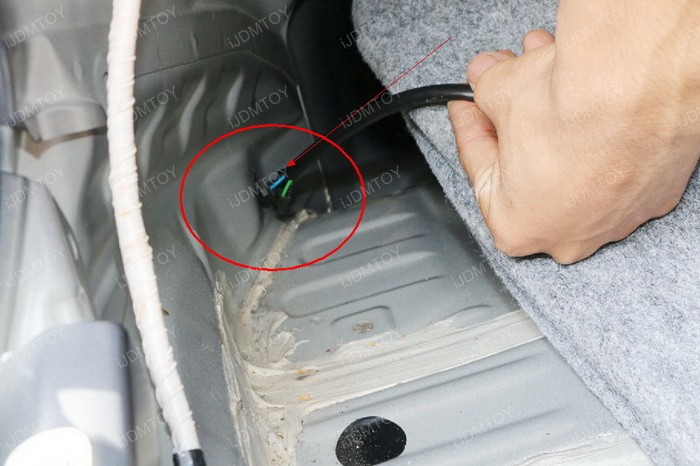

Step 5) Insert the LED rear bumper light wirings through the same firewall hole.

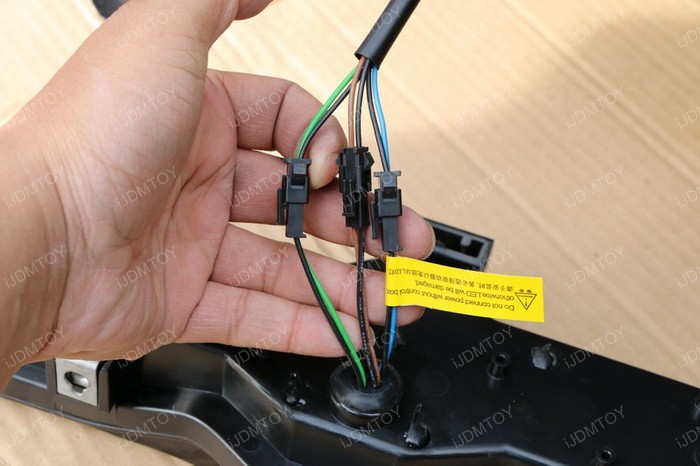

Step 6) Connect the wires to the LED rear reverse light. Pay attention to the colors of the wires.

Step 7) Below is the diagram for the wiring portion.

Connect the black wire to the ground
Connect the navy, blue, aqua wires to the adapter
Connect the brown wire to the yellow stock tail light wire
Extend the blue wire to the red stock brake light wire

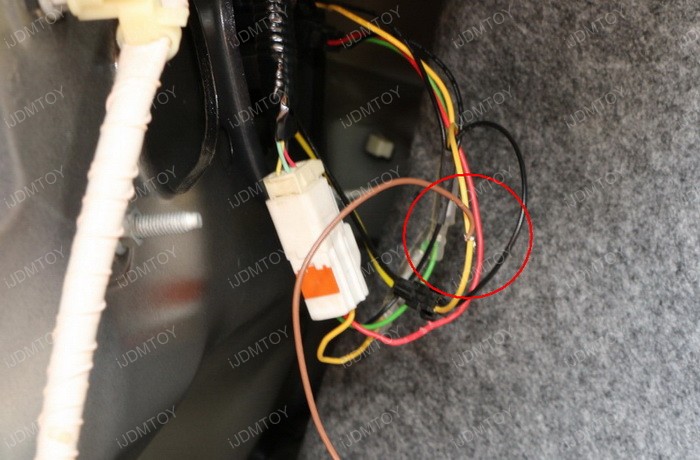

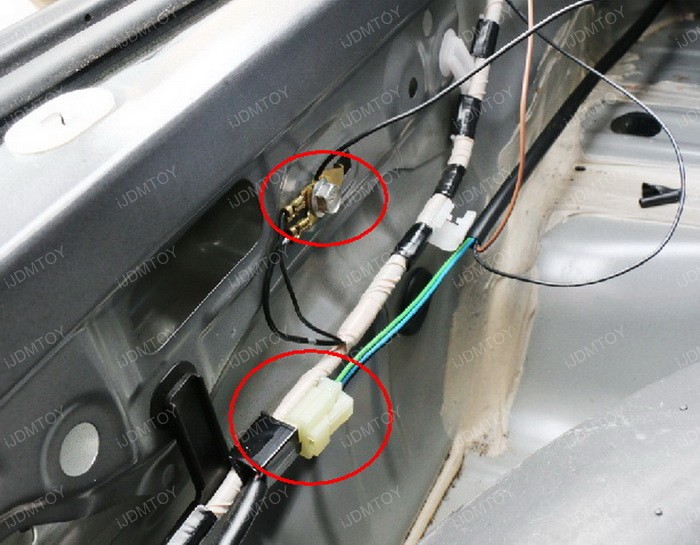

Connect the black wire to the ground and connect the plug back to the stock socket.

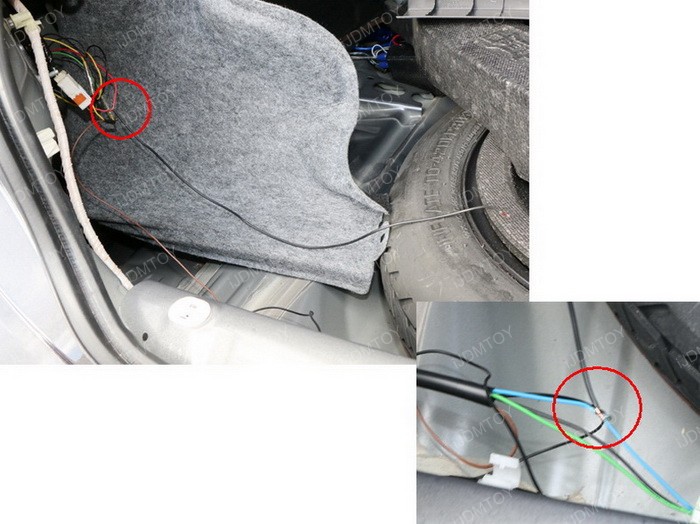

Connect the brown wire to the yellow stock tail light wire and extend the blue wire to the red stock brake wire.

Extend the blue wire and have the extended wire tapped to the red stock brake light wire.

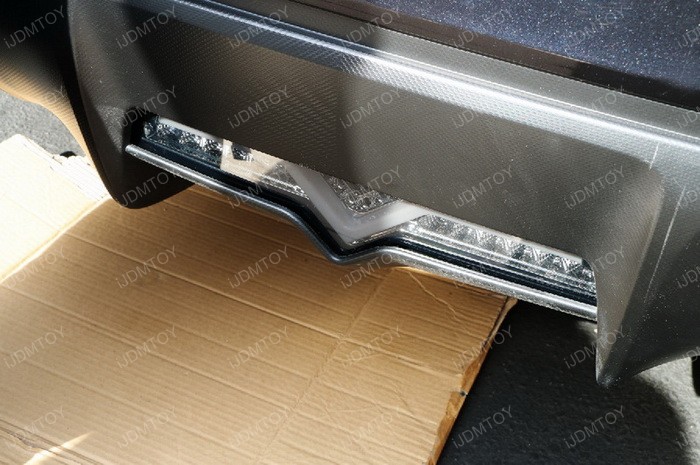

Step 8) Test to make sure everything works, then mount the LED rear reverse light back exactly the same way you removed the stock one.

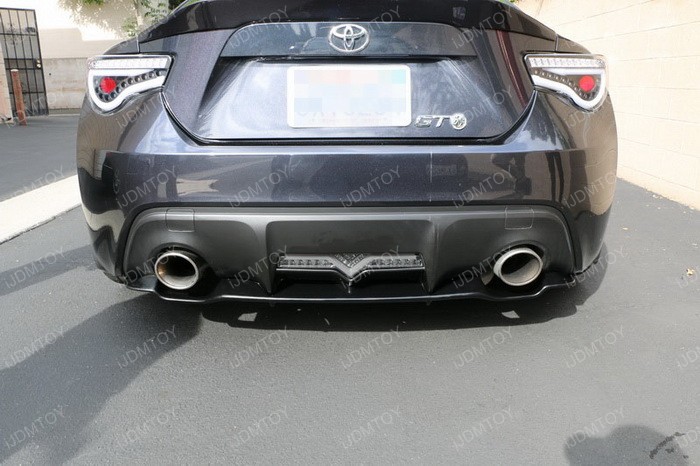

Step 9) Enjoy the new Valenti-style LED rear bumper reverse light for your Scion FR-S or Subaru BRZ!
