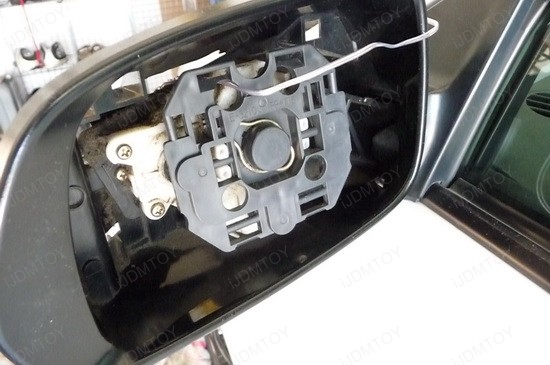

Step 1: Pop and remove the side mirror by tilting the mirror up and pulling it from the bottom gently.

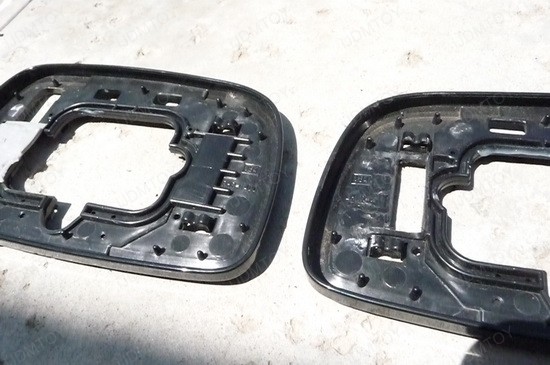

Step 2: Remove the plastic or any material on the back of the mirror to prep for installation.
Step 2A: A heat gun may have to be used on some mirrors as there is adhesive on the back of the mirror. This step may not be necessary on some vehicles due to the variations in the mirror design.

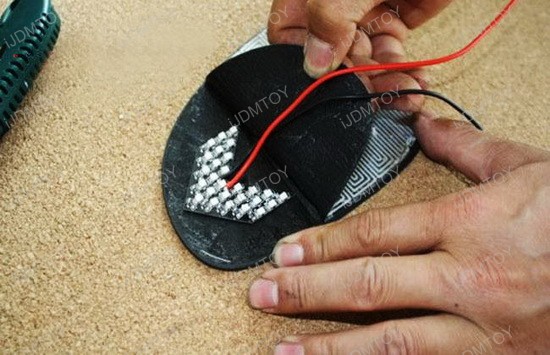

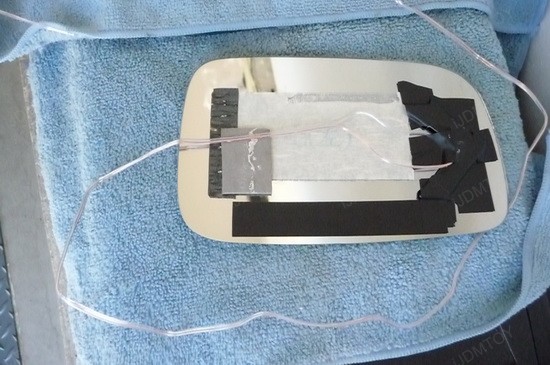

Step 3: Install the LED arrow to the back of the mirror (make sure to have the LED against the back of the mirror facing toward the driverâ€™s view of it). Secure it using adhesive tape.
Step 4: Before installing the mirror into the vehicle, test to make sure the LED does light up properly and show through the mirror lens.

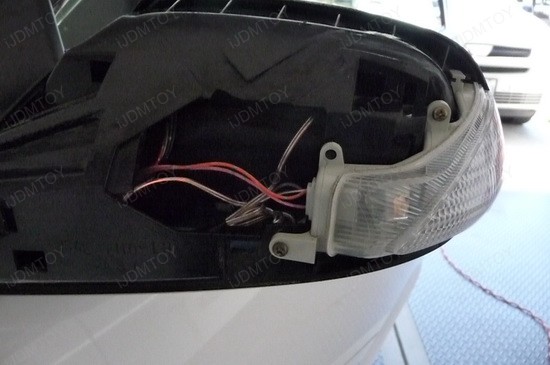

Step 5: Route the wires from the side mirror all the way to the front engine bay and tap the wires to the front turn signal light, the front side marker lights on the fender, or the mirror assembly turn signal (if so equipped). This step will show how itâ€™s tapped on the turn signal assembly on the mirror.
Step 6: Put everything back together, repeat the same procedure on the other side, and enjoy your new LED side mirror arrows!
We also have a video here to virtually guide you thru on how to install this LED arrow for the side mirror
