Toyota SR-MINI 10W CREE LED Pod Lamp Fog Light Installation Guide

This tutorial will show you how to assemble the SR-MINI 10W high powered CREE LED pod lights (70-248) with the included metal mounting bracket, made to fit most Toyota and Lexus models that come equipped with factory fog lights. The holes of our specially designed metal mounting brackets line up exactly the same way as the stock fog lights, which allows you to easily mount the SR-MINI LED pod lights onto your bumper or bezel cover. The pictures of this guide will use the 2014 Toyota Tundra as an example to mount the SR-MINI LED pod lamps.

Step 1: Remove your factory fog lamp from the bumper. Separate the fog light from your existing stock bezel by unscrewing the singular bolt (two bolts in some cases).

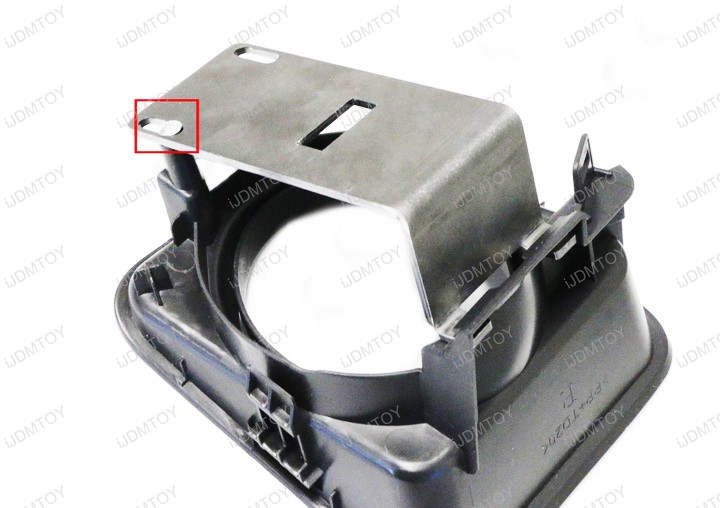

Step 2: Slide in the two short legs of the metal mounting bracket into the slots. Secure the support bracket with a bolt through the hole on the other side of the bracket.

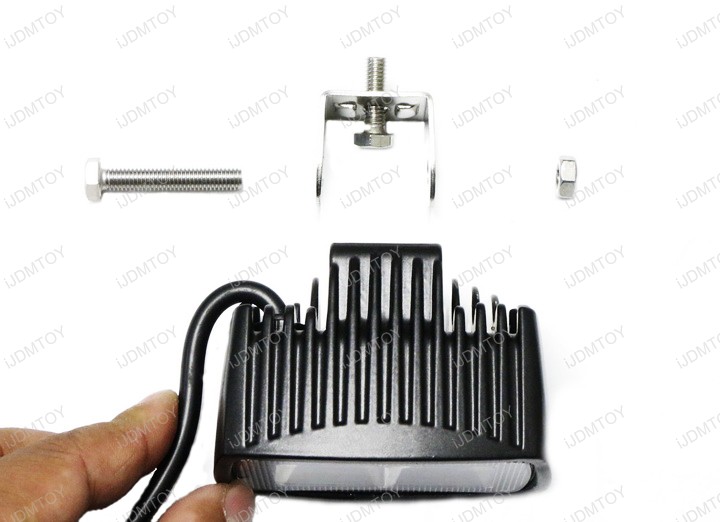

Step 3: Preassemble the SR-MINI LED pod light. Route the shorter bolt through the U-shaped bracket as you see in the picture.

Insert the U-bracket to align with the holes and run the longer bolt through. Secure with a nut.

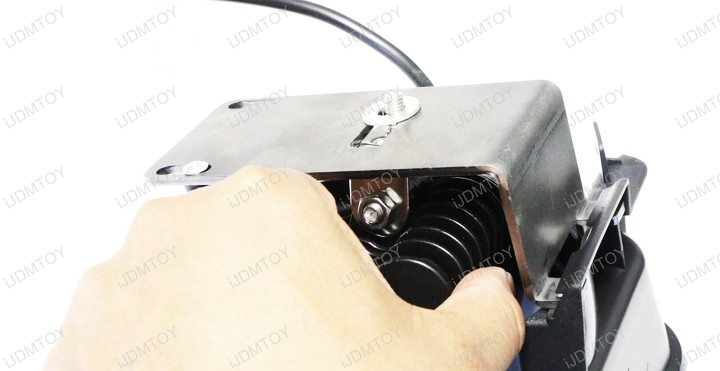

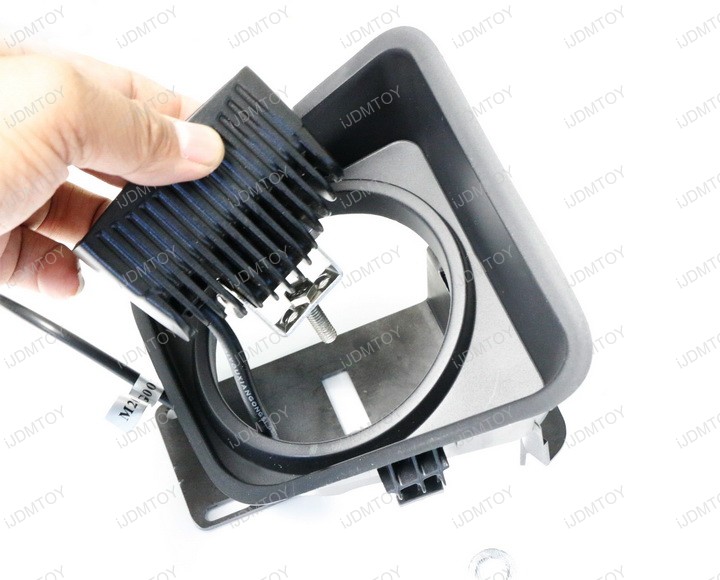

Step 4: Mount the SR-MINI LED pod light onto the metal supporting bracket. Run the bolt through the center opening of the mounting bracket. Secure the connection with a washer and nut to complete the assembly.

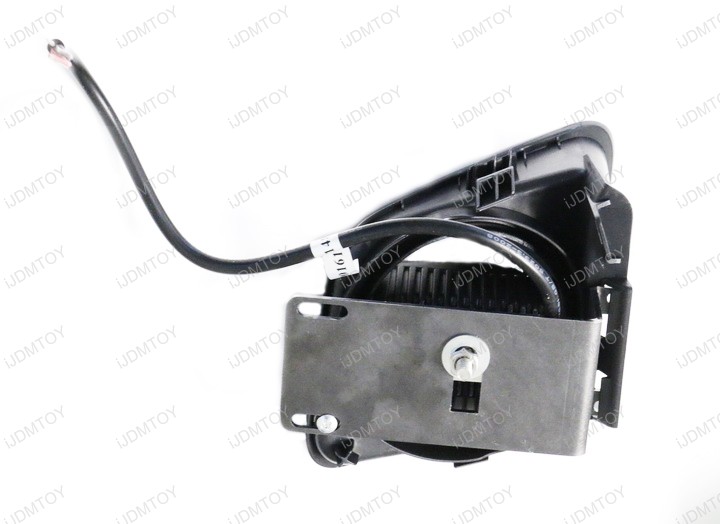

If the SR-MINI LED pod light doesn't medially align with the bezel opening, try rotating the pod lamp 180 degrees. You can also adjust the screw in the back to move the SR-MINI LED pod lamp horizontally. Repeat steps 1-4 on the other side.

Step 5: Connect the wires to the existing fog light harness. Test to make sure it lights up. Once it does, rescrew or reclip parts you have disassembled such as the wheel well. You can now enjoy your Toyota's new SR-MINI LED pod lights!
