2000-2009 Honda S2000 Smoked Lens LED Side Marker Lights Installation Guide

This is a tutorial that will show you how to install the smoked lens front fender S2K LED side marker lights on the 2000-2009 Honda S2000 (75-138). This installation will require some wiring actions; however, this will not be a big issue to S2Kers as the process will be straightforward. After installation, your Honda S2000 will look sleeker during the day and brighter at night.

Step 1: Push your stock side marker light forward to release it.





Step 2: Remove the side marker lens and pull out the OEM incandescent bulb from the stock harness.



Step 3: Wire the S2000 LED side marker lamps to your stock harness. You can either cut off the socket and base or tap the side marker wires to the stock harness. At this point, you may test the LED side marker running lights to make sure they fully light up.

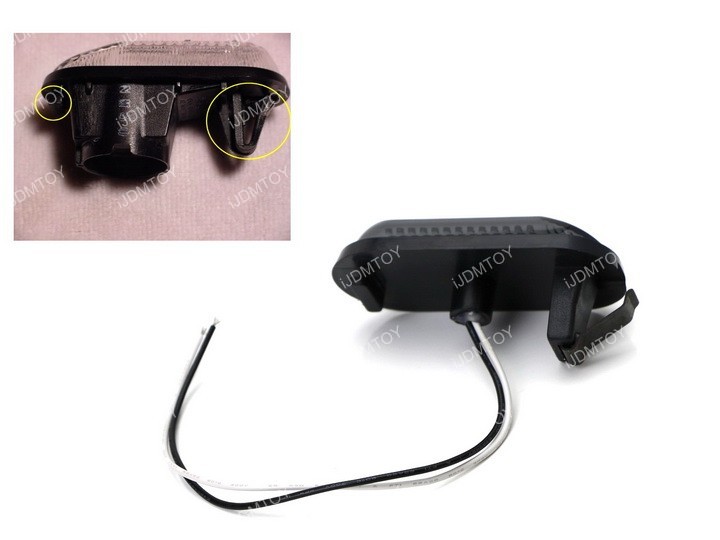

Step 4: Snap in the Honda S2k amber LED side marker lights. The tabs and clips on these LED side marker housings match the OEM side markers' so this installation step should be quick and easy.

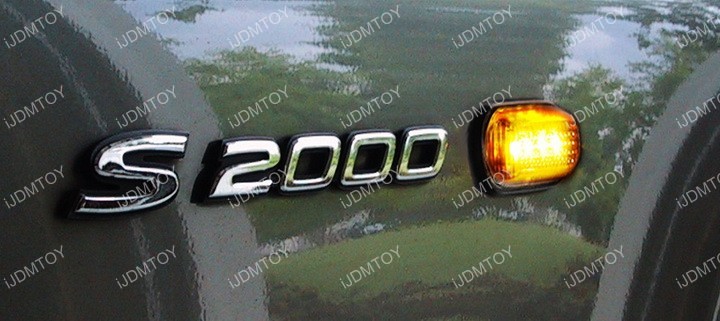

Enjoy your Honda S2000's brand new pair of front fender smoked lens amber LED side marker lamps! Find this and more OEM replacement LED lights today.
