This is an installation guide for SKU 75-086 & 75-095.
This tutorial will show you how to install the clear or smoked lens 27-SMD amber LED side marker lights for the 2010-2014 Ford Mustang's front and rear bumper. Steps 1-4 will list out the installation process for the tail end LED side marker lamps while steps 5-10 will demonstrate how to install the front end LED side marker lights.

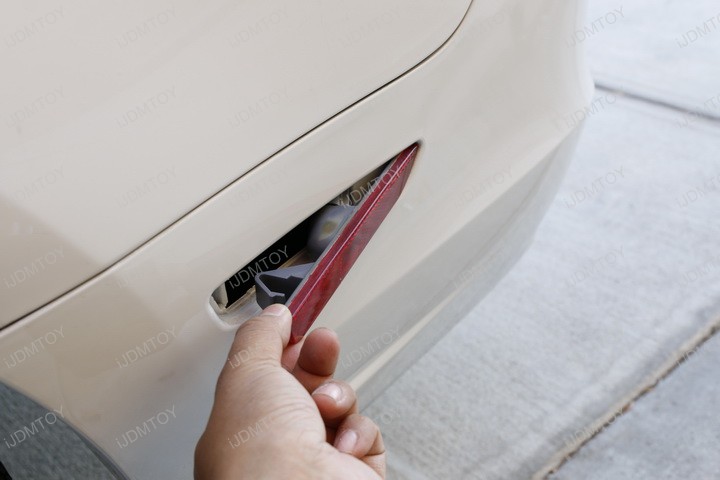

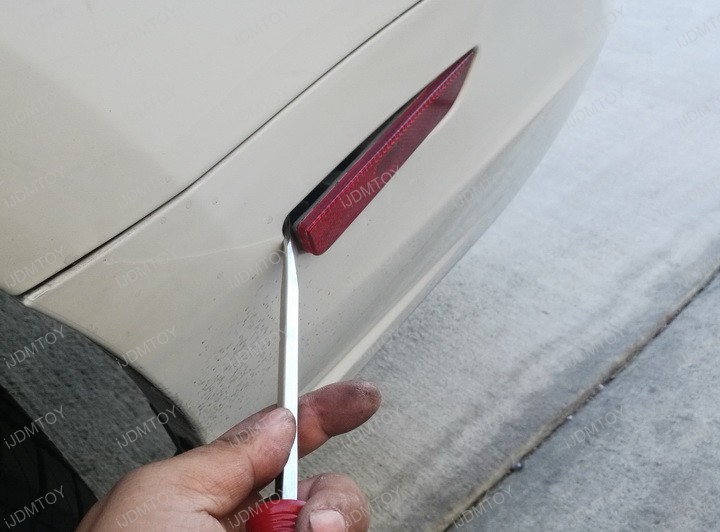

Step 1: For the rear end, pry off the stock side marker lights with a flathead screwdriver.

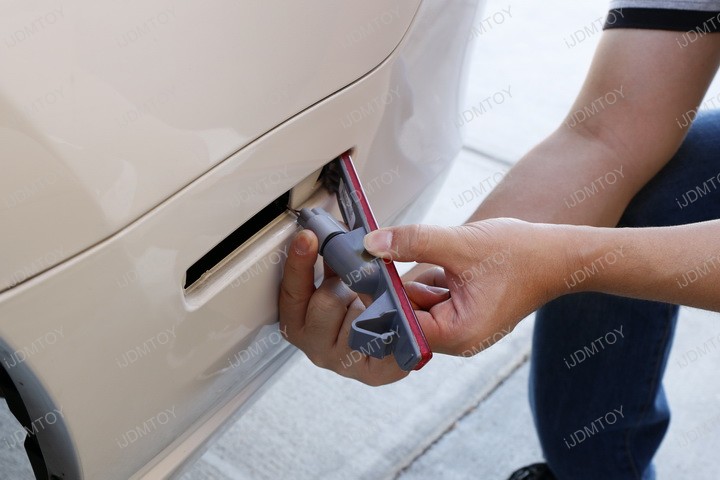

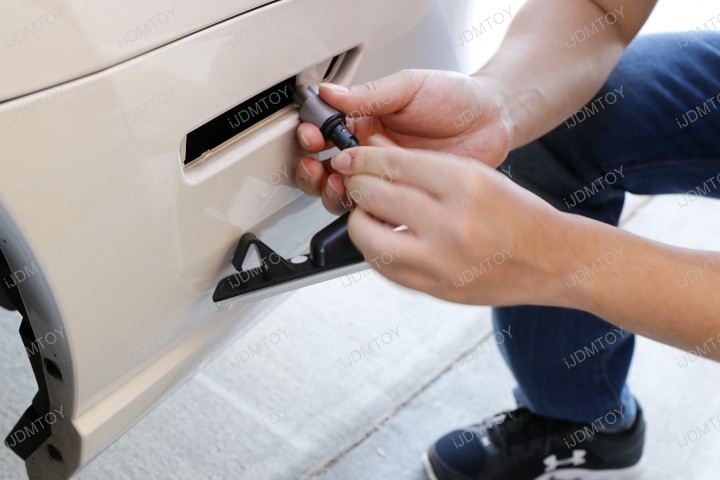

Step 2: Twist to remove the OEM marker light housing from the entire bulb socket.

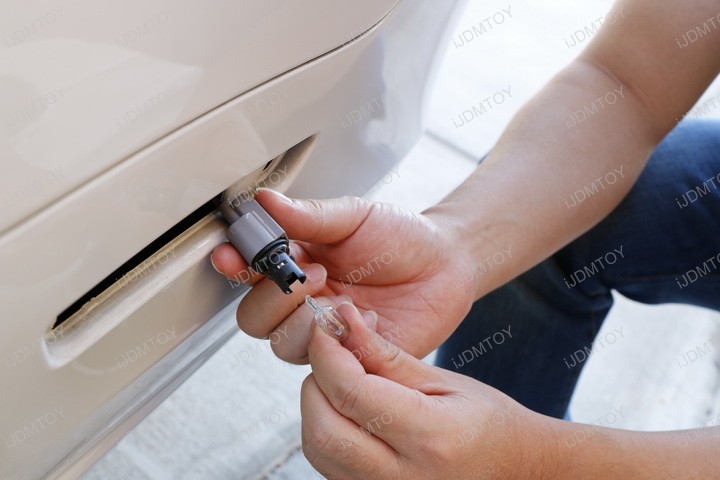

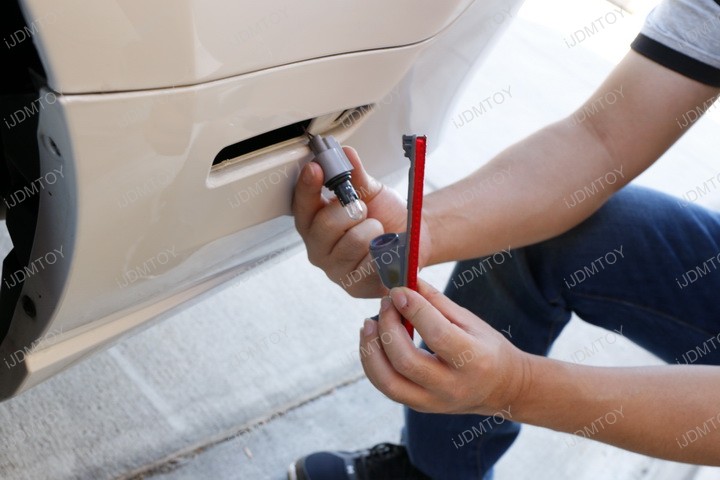

Remove only the bulb from the bulb socket.

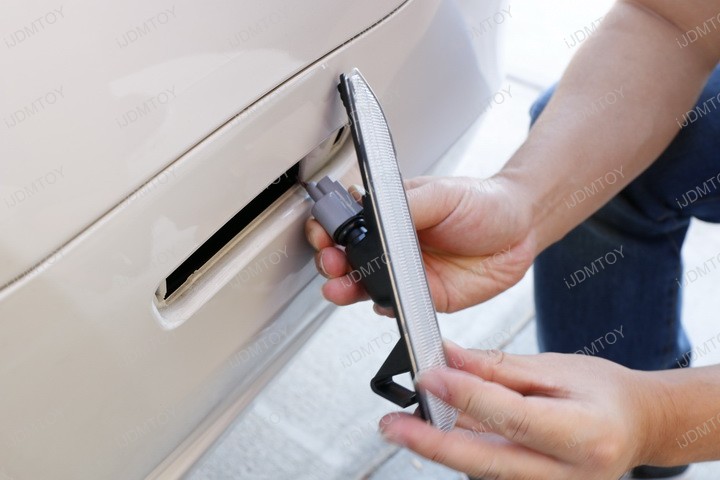

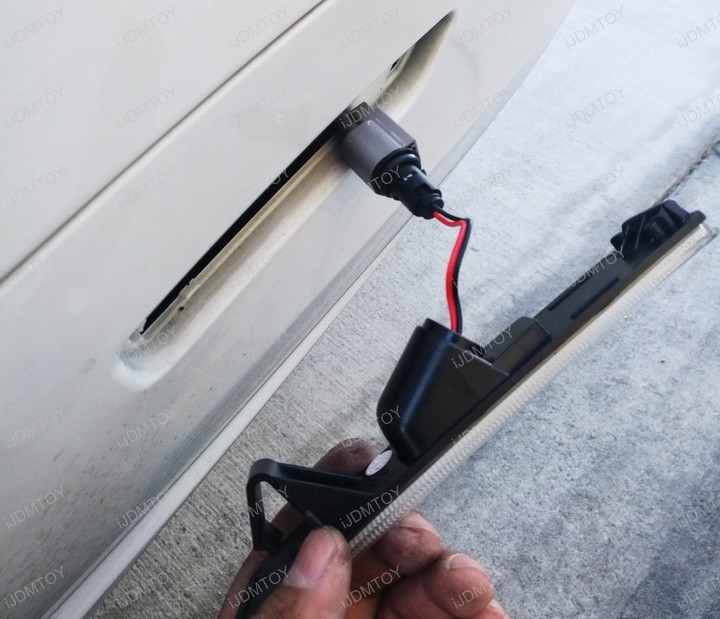

Step 3: Plug in the rear LED side marker light. At this point, you may test the LED side marker lamp to make sure it lights up.

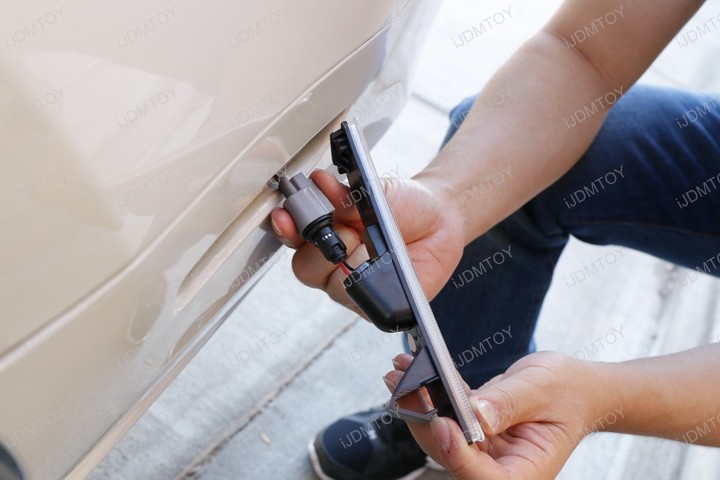

Tuck the wires into the LED side marker lamp housing and twist the bulb socket back in. This will prevent water from getting into the wires and rusting/damaging the LED inside.

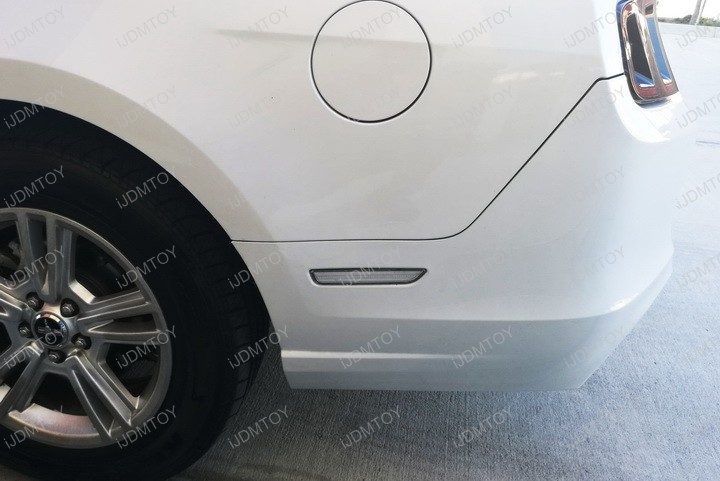

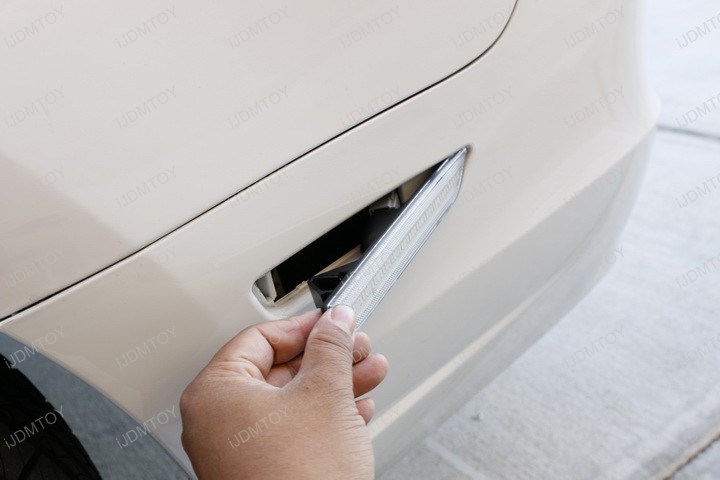

Step 4: Snap the LED side marker light in to finish. Repeat steps 1-4 for the other side.

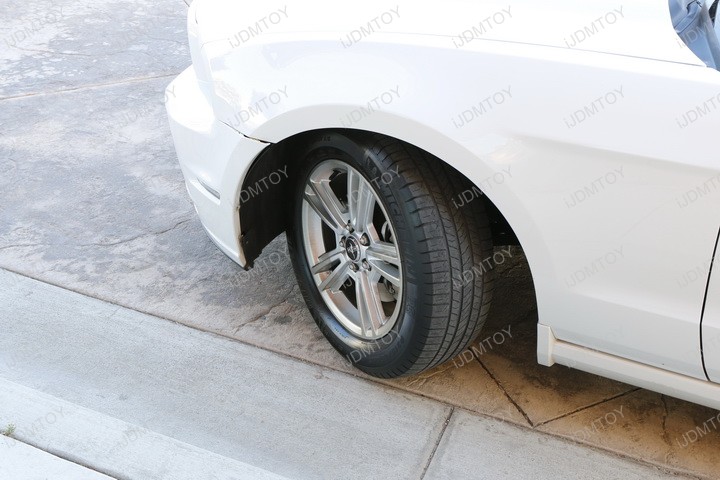

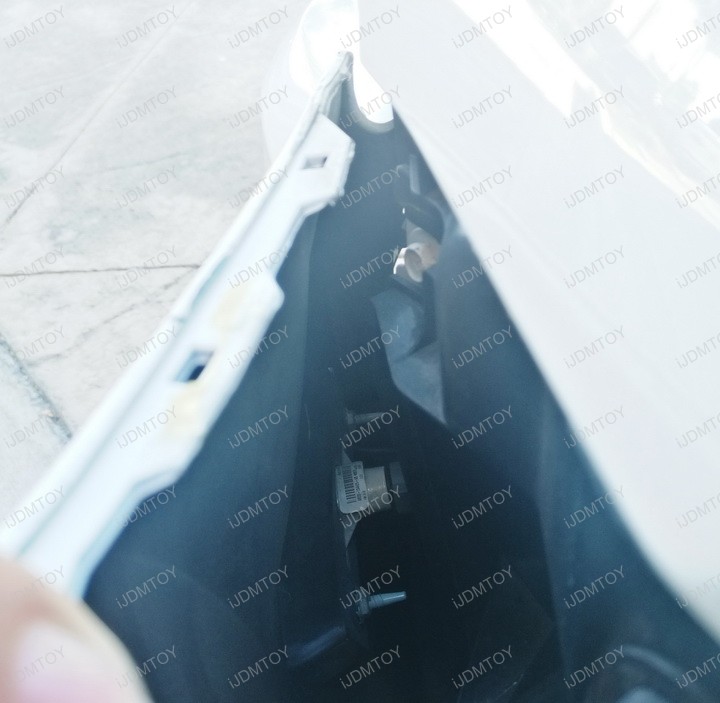

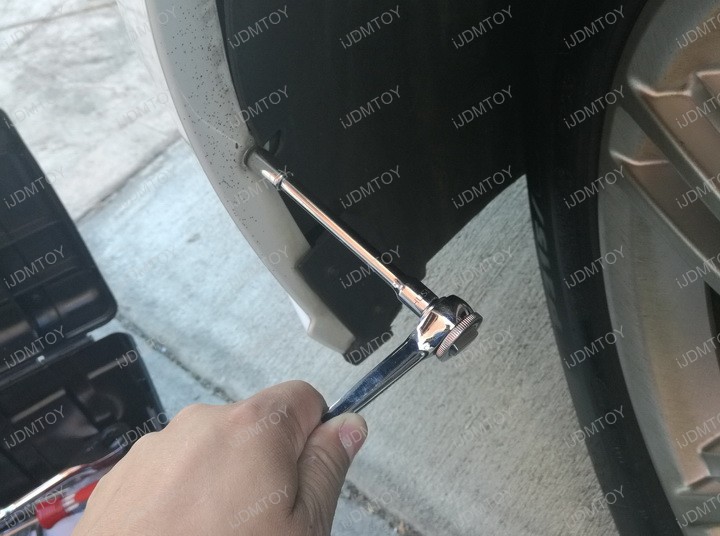

Step 5: For the front end, turn your wheel inwards to give yourself hand clearance to work. Take out the screws to move the fender aside, revealing the backside of your stock side marker light.

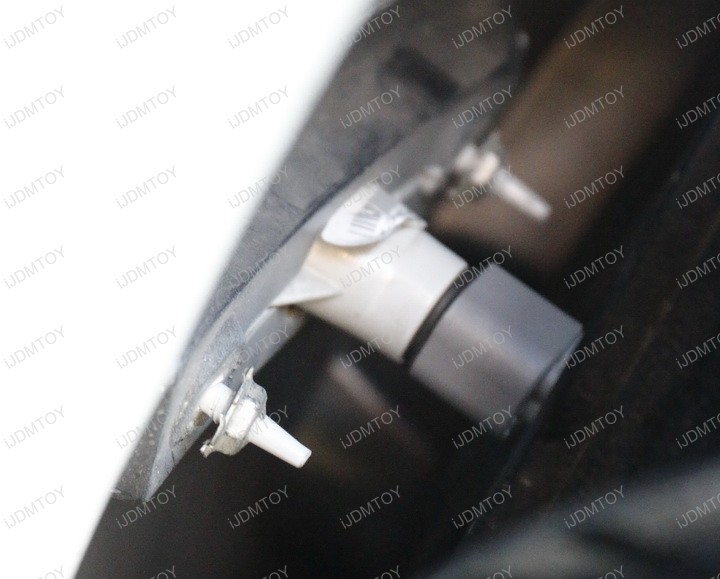

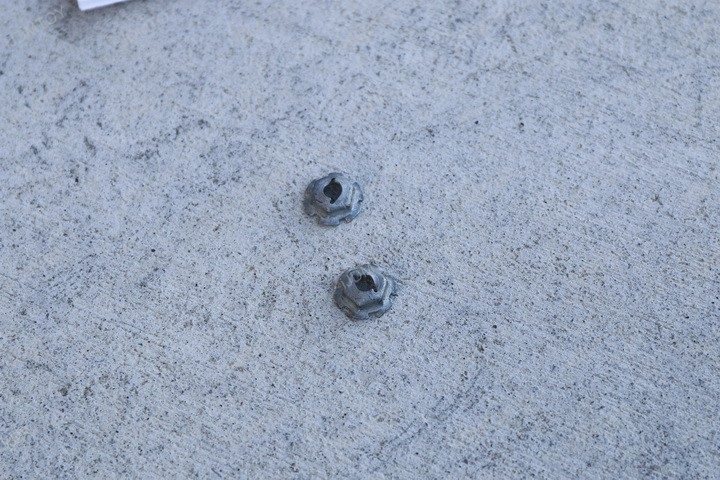

Step 6: Use a pair of pliers to remove the "jar" nuts off of the OEM side marker lights.

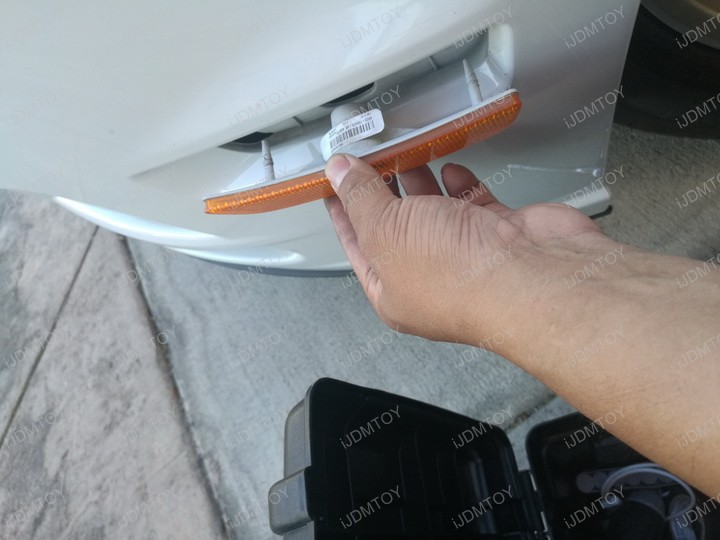

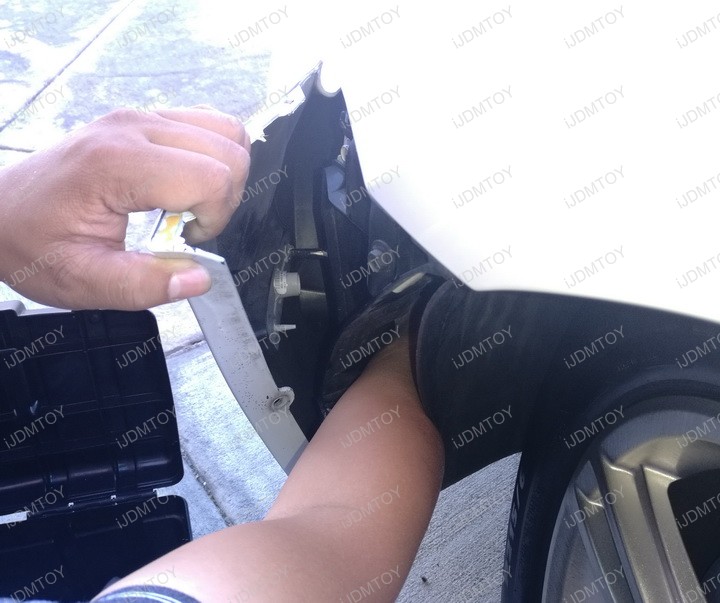

Step 7: Remove the stock side marker lamp.

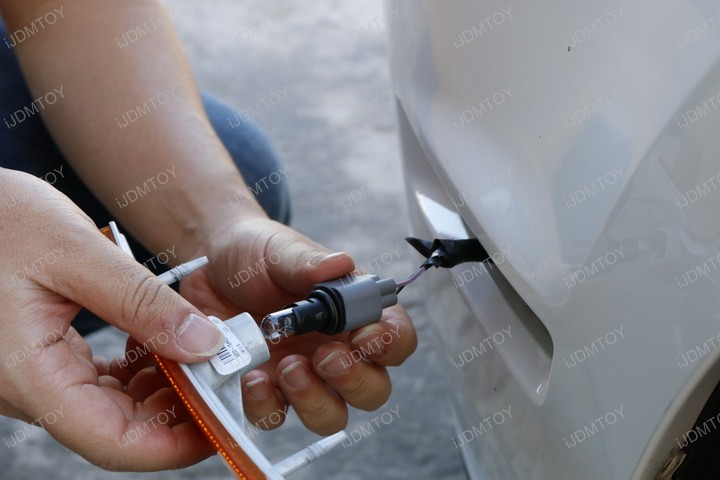

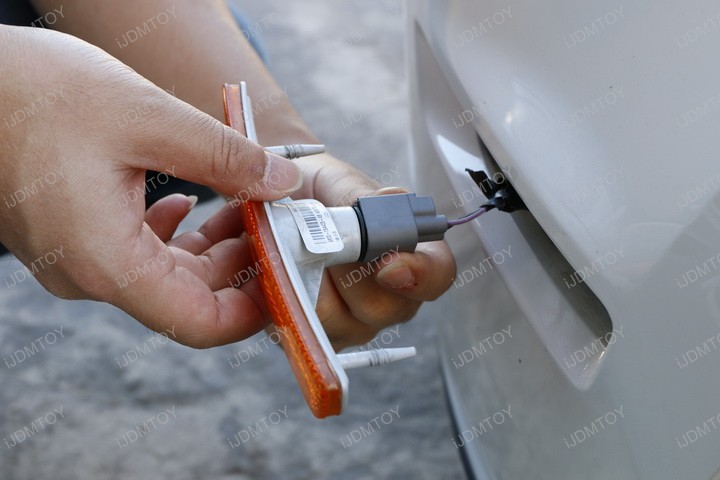

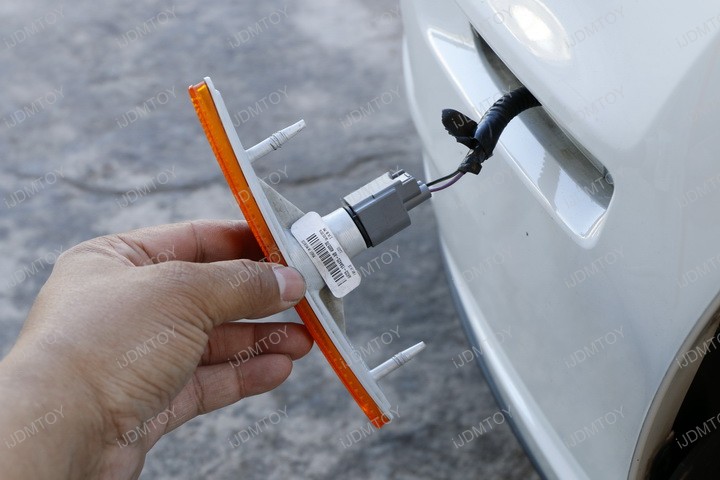

Twist to remove the OEM marker light housing from the entire bulb socket.

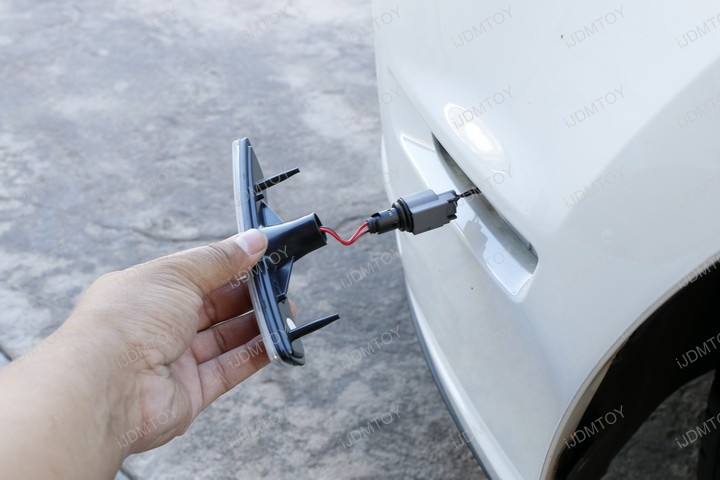

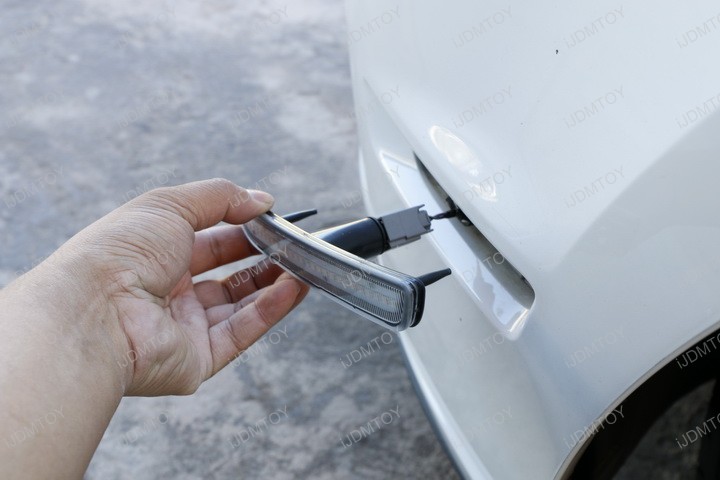

Step 8: Plug in the front LED side marker light. At this point, you may test the LED side marker lamp to make sure it lights up.
Step 9: Tuck the wires into the LED side marker lamp housing and twist the bulb socket back in. This will prevent water from getting into the wires and rusting/damaging the LED inside.
Step 10: Snap in the LED side marker light. Reapply the "jar" nuts in to finish. Repeat steps 5-9 for the other side.
Enjoy your Ford Mustang's brand new set of LED side marker lights! Find this and more OEM replacement LED lights today!
