This tutorial will show you how to install the JDM fluid style red LED rear bumper reflector and rear fog light (75-422) kit, made to fit the 2016 and later Honda Civic. Unlike our regular LED bumper reflectors, this LED assembly replaces both your OEM bumper reflectors and stock plastic bezels. This installation will involve minor instances of drilling; however this hole will not affect your Civic's aesthetic as the hole will be drilled behind the bezels and will not show up at all. Please note that this LED bumper reflector and fog light set fits the Civic sedan only. It does NOT fit the coupe nor hatchback body styles.

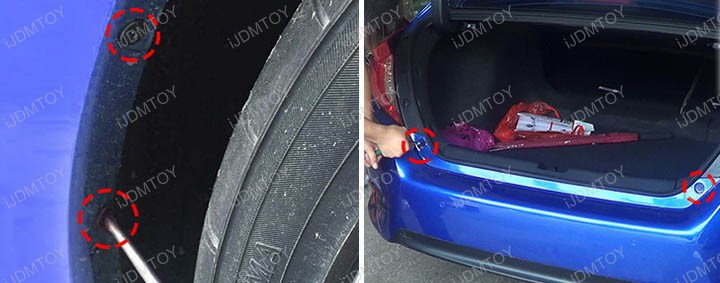

Step 1: Remove the bumper. Unscrew the bolts holding the bumper shell up at the wheel well as well as the edge of the trunk opening.

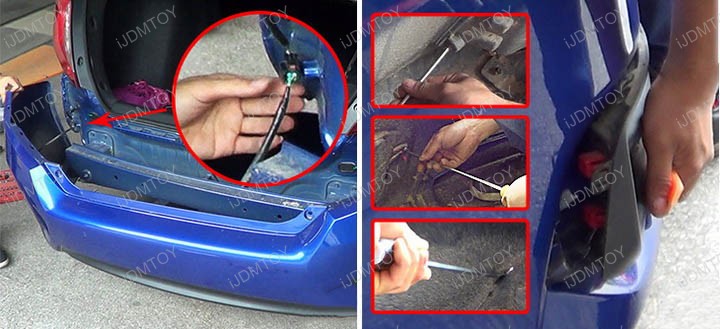

Step 2: Take out the stock reflector and plastic bezel. Reach your hand to the back of the bezel to undo the tab or clip and release the OEM reflector and bezel.

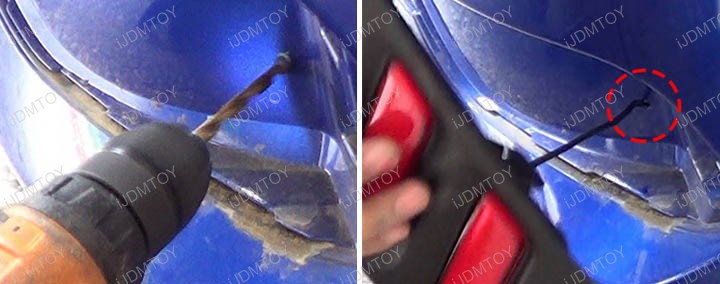

Step 3: Once you have completely removed the rear bumper reflector and stock bezel, drill a hole into the body so you can route the wires to the stock harnesses.

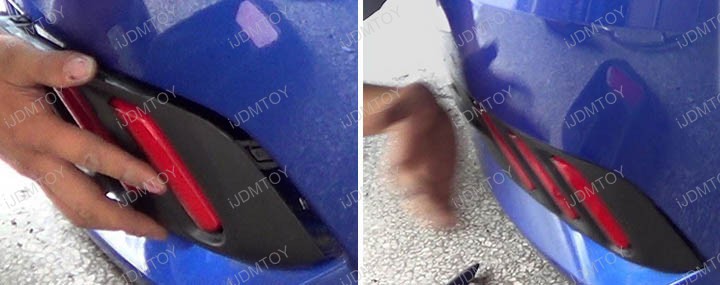

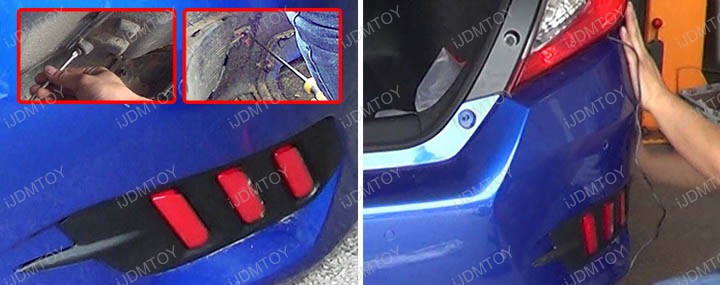

Step 4: Directly replace the stock reflector and plastic bezel with the LED rear bumper reflector and fog light. Thread the wire through the drilled hole.

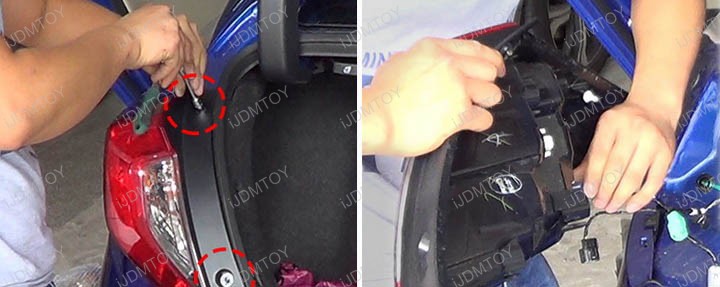

Step 5: Unfasten the screws holding your tail light to the body so you can pull out the tail light.

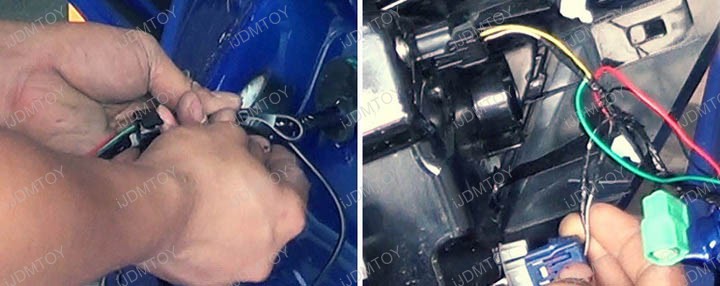

Step 6: After your tail light has been released, tap the wires to the stock harness. Connect the green wire to the tail light positive, the red wire to the brake light positive, and the black wire to a ground.

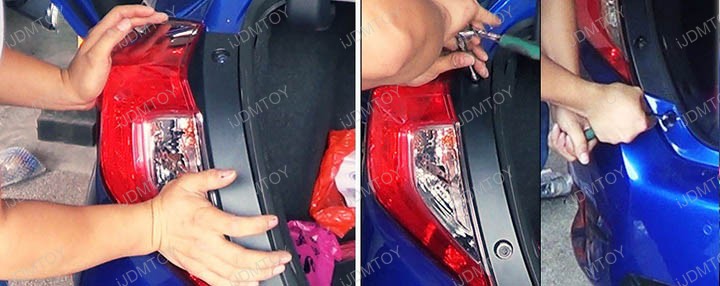

Step 7: Test the rear LED bumper reflectors/fog lamp set to make sure the tail and brake lights function as they should. Once you've confirmed that it does, screw your tail lights and bumper back on to finish. You can now enjoy your Honda Civic's new pair of JDM fluid style rear LED bumper reflector and fog light set!
